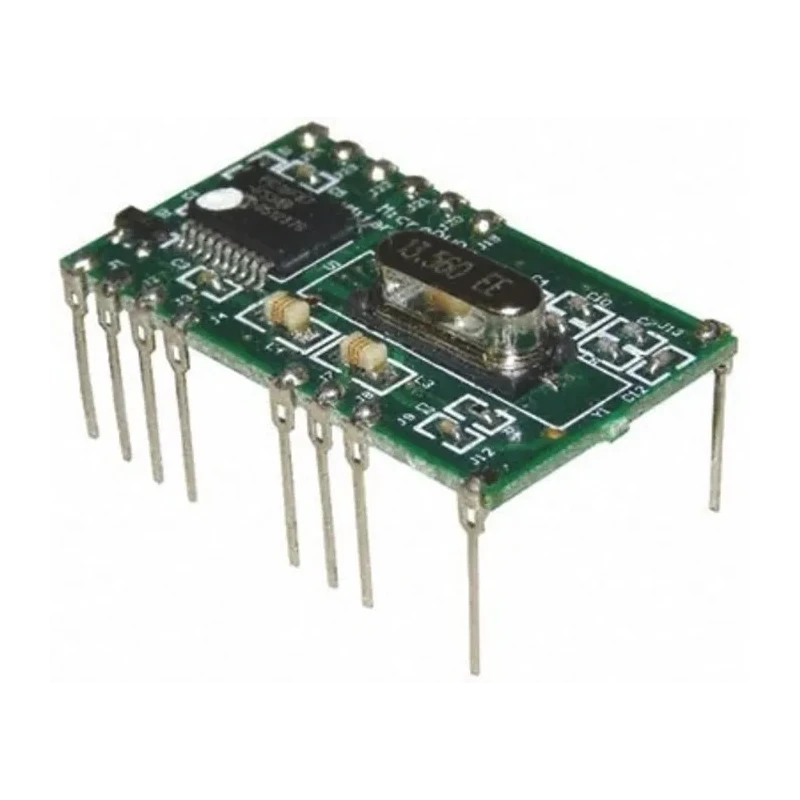

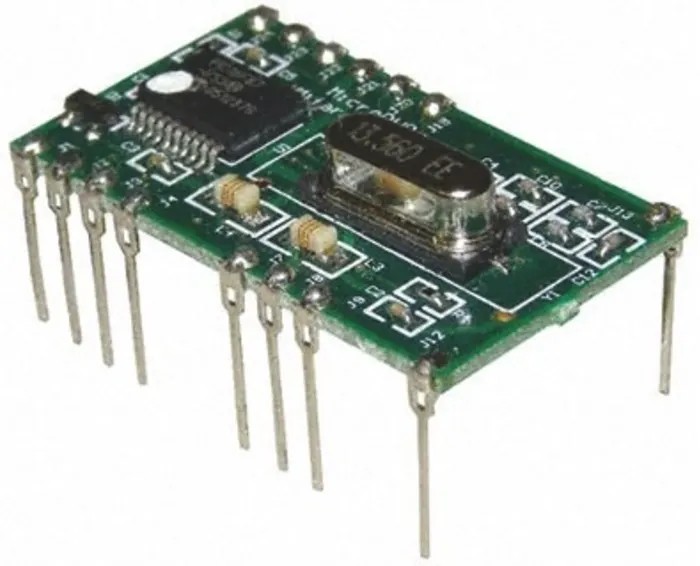

Eccel Technology Ltd RFID Module MicroRWD Low Power Version with Auxiliary Outputs 13.56 MHz 5V RWD-MICODE
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Frequency | 13.56MHz |
| Brand | Eccel Technology Ltd |
| Dimensions | 30.5 x 18mm DIL module |
| Operating Temperature Range | -40 to +85°C |
| Length | 18mm |
| Model | RWD-MICODE |
| Width | 30.5mm |
| Mount Type | Panel |
| Series | MicroRWD |
| Maximum Operating Temperature | 85°C |
| Sub Type | Low Power Version with Auxiliary Outputs |
| Minimum Operating Temperature | -40°C |
| Component Type | Module |
| Interface Type | TTL |
| Standards/Approvals | ISO14443A, ISO15693, ISO14443B |
| Minimum Supply Voltage | 5V |
| Host communication | serial UART @ 9600bps with CTS flow control |
| Maximum RF Data Rate | 106kbps |
| Read/Write Range | up to 100mm |
| Alternative Data Output | 24/32 bit Weigand protocol |
Key Features
- Supports Mifare™, ICODE™, and Ultralight™ protocols for versatile RFID applications.
- Operates at 13.56 MHz frequency with a maximum RF data rate of 106 kbps.
- Communicates via serial UART interface at 9600 bps with CTS flow control.
- Provides alternative data output via 24/32 bit Weigand protocol for flexibility.
- Compact panel mount design with dimensions 30.5mm width x 18mm length.
- Operating temperature range from -40°C to +85°C suitable for varied environments.
- Powered by a stable 5V supply voltage ensuring consistent performance.
- Complies with ISO14443A, ISO15693, and ISO14443B standards for broad compatibility.
Product Description
Eccel Technology Ltd RWD-MICODE RFID Module MicroRWD is a highly reliable low power contactless RFID reader/writer specifically designed for 13.56 MHz frequency applications. It supports Mifare and ICODE SLI card protocols including Ultralight™, making it suitable for industrial, commercial, and laboratory RFID uses.
The module operates on a 5V supply voltage and features a stable serial UART communication at 9600 bps with CTS flow control. Additionally, it provides an alternative output using 24/32 bit Weigand protocol, enhancing interfacing options with different systems.
Its compact form factor for panel mounting measures 30.5 mm width by 18 mm length, allowing easy integration into various devices and equipment. This model supports a maximum RF data rate of 106 kbps and offers a contactless read/write range up to 100 mm, facilitating effective wireless data transmission.
The device complies with international standards ISO14443A, ISO15693, and ISO14443B, ensuring wide compatibility across RFID card and tag types. Its rugged operating temperature range of -40°C to +85°C suits diverse environments, including harsh industrial settings.
The module is suitable for use in industrial automation, security systems, access control, inventory management, and other applications requiring secure and efficient RFID communication. An evaluation kit is available for development and testing, providing users with a convenient solution for prototyping and integration.
Supports Mifare™, ICODE™, and Ultralight™ protocols for versatile RFID applications. Operates at 13.56 MHz frequency with a maximum RF data rate of 106 kbps. Communicates via serial UART interface at 9600 bps with CTS flow control.
Provides alternative data output via 24/32 bit Weigand protocol for flexibility. Compact panel mount design dimensions of 30.5 mm x 18 mm. Wide temperature range operation from -40°C to +85°C. Stable 5V DC power supply for consistent performance.
Complies with ISO14443A, ISO15693, and ISO14443B standards. Up to 100 mm read/write range for contactless communication. Evaluation kit available under RS Part No. 617-2016. Explore the extensive range of RFID modules, readers, and components available at EnvMart for innovative industrial and commercial RFID system solutions.
Explore more products in our RF Modules category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This RFID module operates at a frequency of 13.56 MHz, suitable for various RFID applications.
The maximum RF data rate supported by this model is 106 kbps, allowing for efficient data transmission.
The dimensions of the module are 30.5 mm in width and 18 mm in length, designed for panel mounting.
The module communicates via a serial UART interface at 9600 bps with CTS flow control, facilitating easy integration.
It provides alternative data output via 24/32 bit Weigand protocol, enhancing flexibility for interfacing with different systems.
The contactless read/write range of this module is up to 100 mm, enabling effective wireless communication.
It complies with ISO14443A, ISO15693, and ISO14443B standards, ensuring broad compatibility across various RFID cards and tags.
Yes, an evaluation kit is available for development and testing, providing a convenient solution for prototyping and integration.
The module requires a minimum supply voltage of 5V to ensure consistent performance during operation.
This model features a compact design intended for panel mounting, facilitating easy integration into various devices.
