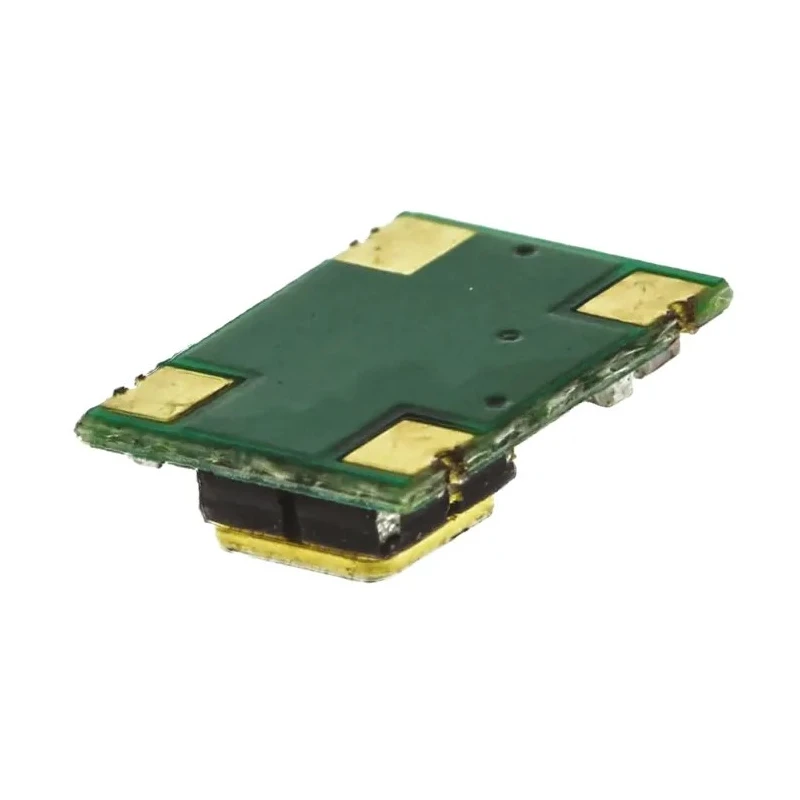

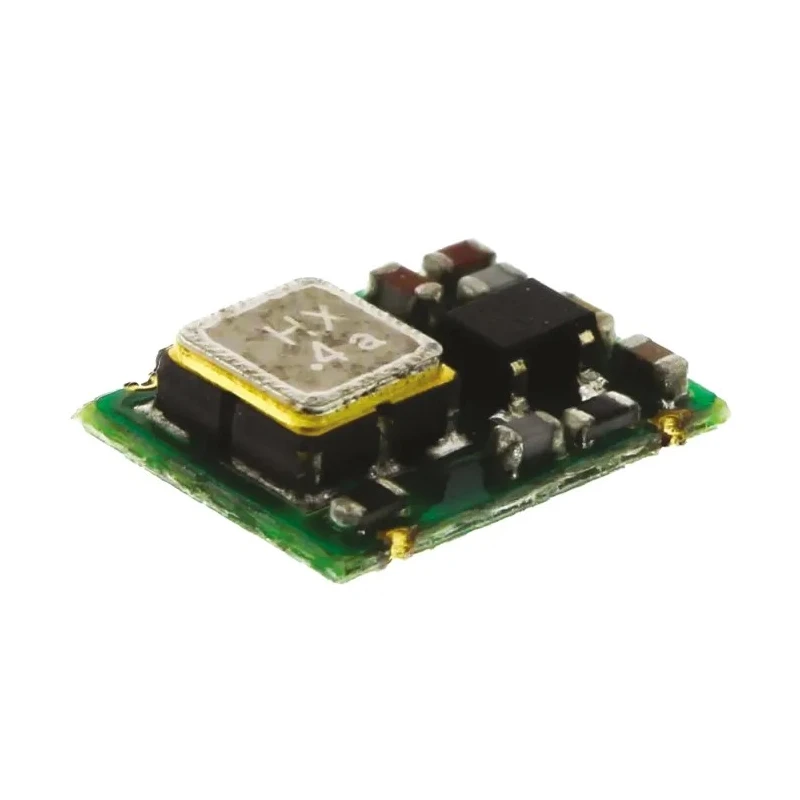

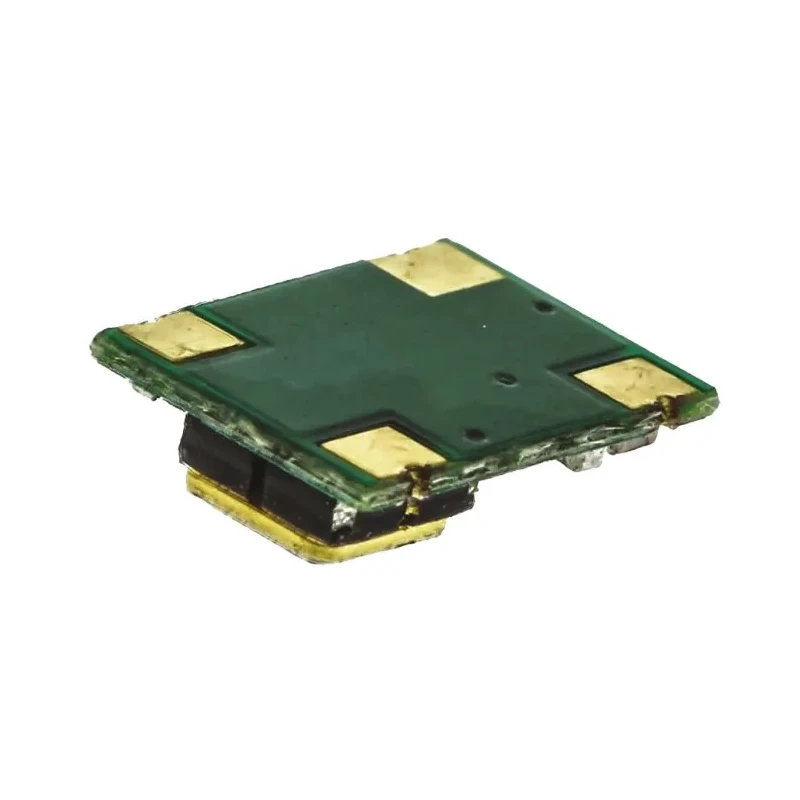

Quasar RF ASK Transmitter Module 433.92 MHz 12V QAM-TX3-433

Quasar QAM-TX3-433 is a compact and efficient RF ASK transmitter module operating at a carrier frequency of 433.92 MHz in the Industrial, Scientific, and Medical (ISM) band. It supports Amplitude Shift Keying (ASK) modulation, allowing digital data transmission suitable for telemetry and short-range wireless communication.

The module interfaces with microcontrollers through serial CMOS/TTL logic levels, facilitating seamless integration into embedded systems. It supports a maximum RF data rate of 3 kHz, enabling the transmission of low-speed digital data effectively.

Designed for robust operation, it functions reliably across a temperature range from -20°C to 85°C, and powers from 3V to 12V DC supply voltages, making it versatile for various industrial and commercial electronic applications.

Its compact form factor with dimensions 7.08 mm length, 5.2 mm width, and 1.8 mm height makes it ideal for space-constrained implementations such as security alarms, remote gate controllers, garage door openers, and Internet of Things (IoT) devices requiring wireless data communication.

The transmitter module exhibits low power consumption and offers an effective wireless communication range of up to 50 meters, depending on environmental factors. It is part of the QAM-TX3 series and complements receiver modules in the QAM series for building secure remote control systems.

This module employs ASK modulation technique for reliable data transmission. Operates at the 433.92 MHz ISM frequency band for unlicensed short-range communication. Interfaces via CMOS/TTL for easy connection with embedded control systems.

Supports a maximum transmitter data rate of 3 kHz ensuring efficient telemetry. Wide operating voltage range from 3V to 12V DC. Suitable for applications including security systems, remote sensing, and IoT communications.

Compact size facilitates easy integration into small electronic assemblies. Operates within -20°C to 85°C temperature range ensuring durability.

This Quasar QAM-TX3-433 RF Module originates from Taiwan, Province of China, assuring manufacturing quality. It provides a dependable RF transmission solution for electronic and communication projects in industrial, laboratory, manufacturing, and commercial environments. Explore the extensive range of RF Modules and compatible accessories at EnvMart to enhance your wireless communication solutions.
