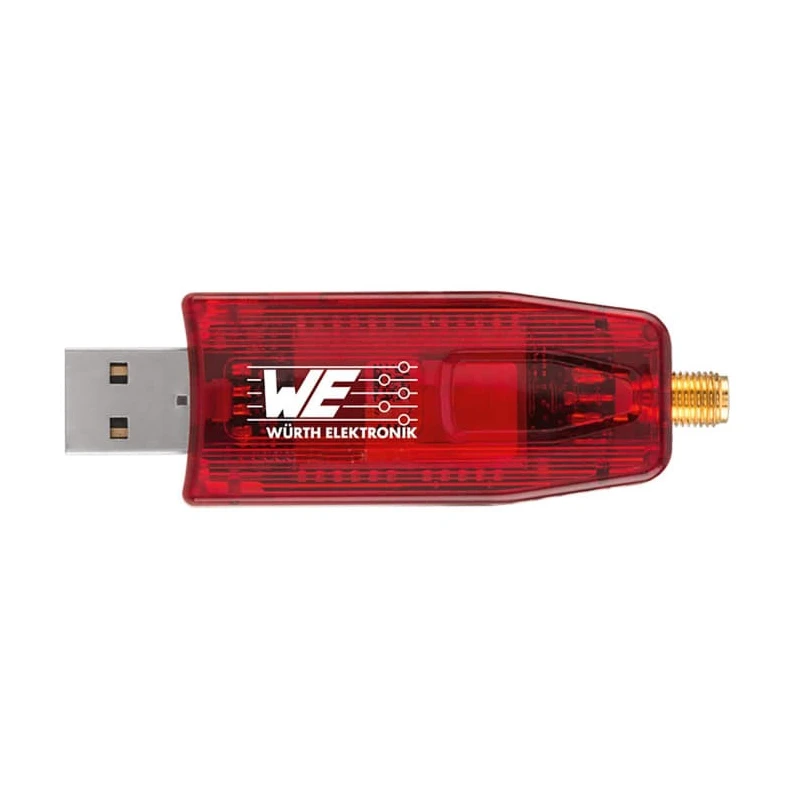

Wurth Elektronik Titania Series RF Module FM USB Interface 3.6V 15dBm 25kbps 2607046211001

Wurth Elektronik 2607046211001 RF Module FM belonging to the Titania series combines proprietary wireless modules with a USB-UART converter IC for direct communication via virtual COM port to a PC USB interface. The USB radio stick contains the integrated radio module working with an USB converter, making it suitable for industrial and commercial wireless communication applications.

This RF module employs FM modulation technique, supporting a maximum RF data rate of 25kbps, and delivers up to 15dBm maximum output power, yielding reliable radio link performance. Its remarkable receiver sensitivity of -120dBm ensures robust reception even under weak signal conditions.

The device interfaces through USB, allowing seamless connectivity with computer systems and equipment. It operates at a minimum supply voltage of 3.6V and functions efficiently within a temperature range of -40°C to 85°C, suitable for varied environmental conditions.

The module supports the SRD frequency band at 169MHz and features an external SMA antenna connector for flexible antenna options. Its compact form factor with dimensions 74mm length, 23.65mm width, and 12mm height supports easy integration into embedded systems.

Manufactured in Germany, this RF module is optimized for use in industrial machines, communication devices, wireless data transmission, and measurement systems. It delivers stable performance in applications requiring low power, compact size, and high signal integrity.

The module uses FM modulation technique for data transmission. Maximum RF data rate is 25kbps, supporting efficient communication. Maximum output power is 15dBm ensuring reliable signal strength. Receiver sensitivity is high at -120dBm for better signal reception.

USB interface type with virtual COM port support for easy PC connectivity. Operates in SRD frequency band at 169MHz with external SMA antenna connector. Minimum supply voltage required is 3.6V for stable operation. Wide operating temperature range from -40°C to 85°C for diverse conditions.

Compact dimensions: Length 74mm, Width 23.65mm, Height 12mm. Manufactured in Germany ensuring quality and reliability. Explore comprehensive RF module solutions and wireless communication components at EnvMart for industrial and commercial applications.
