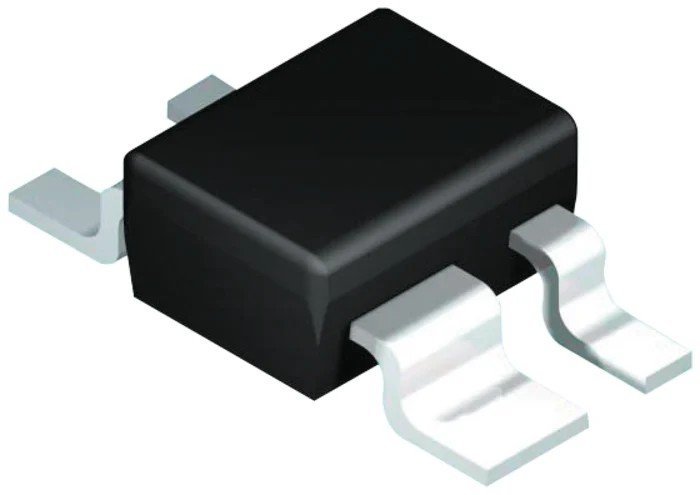

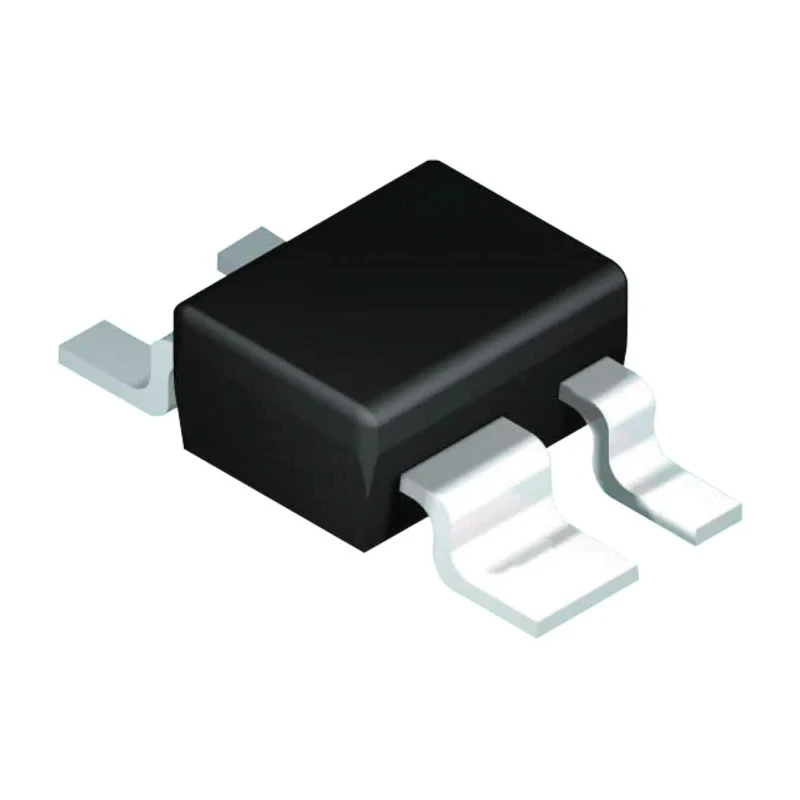

DiodesZetex 5-Element Uni-Directional TVS Diode Array, 0.4 W, 4-Pin SOT-143 DRTR5V0U2SR-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 3mm |
| Model | DRTR5V0U2SR-7 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | DRTR |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-143 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 4 |
| Number of Elements per Chip | 5 |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Peak Pulse Power Dissipation Pppm | 0.4W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 5A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- The diode configuration is an array with five elements per chip.
- Operates with a minimum breakdown voltage of 6 V and maximum reverse stand-off voltage of 5.5 V.
- Supports ESD protection with a peak pulse current rating of 5 A.
- Designed for surface mounting with a compact footprint of 3 mm length, 1.4 mm width, and 1 mm height.
- Operates reliably across a temperature range from -65°C to 150°C.
- Compliance with automotive standard AEC-Q101 ensures quality and reliability.
- Maximum reverse leakage current is extremely low at 100 nA.
- Test current rating of 1 mA and no additional approvals apply.
Product Description
The DiodesZetex DRTR5V0U2SR-7 is a high-performance 5-element uni-directional TVS Diode Array designed for effective transient voltage suppression in electronic circuits.
Housed in a compact 4-pin SOT-143 surface mount package, this diode array supports a peak pulse power dissipation of 0.4 W and offers protection for sensitive data lines against electrostatic discharge and voltage spikes.
Featuring a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 5.5 V, it ensures the integrity of the protected circuit by clamping transient voltages quickly and efficiently. Its peak pulse current rating of 5 A underlines its capability to withstand high-energy surges.
With a low maximum reverse leakage current of 100 nA and operation across a wide temperature range from -65°C to 150°C, this diode array is suited for demanding automotive and industrial environments. Its AEC-Q101 automotive qualification demonstrates compliance with rigorous reliability standards for vehicle applications.
The small physical dimensions - 3 mm length, 1.4 mm width, and 1 mm height - allow for space-efficient PCB designs, while the surface mount package type enables automated assembly processes, improving manufacturing efficiency.
The diode array contains five elements per chip for enhanced protection. Uni-directional design ensures precise voltage suppression in one direction. Ideal for use in industrial, automotive, and consumer electronics for transient voltage and ESD protection.
Compatible with PCB assembly processes due to surface mount mount type. Extends the longevity and reliability of sensitive semiconductor components by mitigating electrical threats.
This product is an ideal choice for engineers seeking reliable transient voltage suppression with a compact, automotive-grade diode array. Explore the Electronics & Electricals category at EnvMart for more semiconductor protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 0.4 W.
The minimum breakdown voltage for this diode array is 6 V.
The maximum reverse stand-off voltage is 5.5 V.
This model contains five elements per chip in its configuration.
The maximum peak pulse current rating is 5 A.
It operates reliably across a temperature range from -65°C to 150°C.
The maximum reverse leakage current is 100 nA.
This diode array is housed in a SOT-143 surface mount package.
It complies with the automotive standard AEC-Q101.
The mounting type for this model is surface mount.
The dimensions are 3 mm in length, 1.4 mm in width, and 1 mm in height.
The test current rating is 1 mA.
