NeoCortec RF Module PCI Interface 915 MHz 2-3.6V Operating Voltage PCINC1000C-8

Free Delivery in India | Lowest Global Shipping Charges

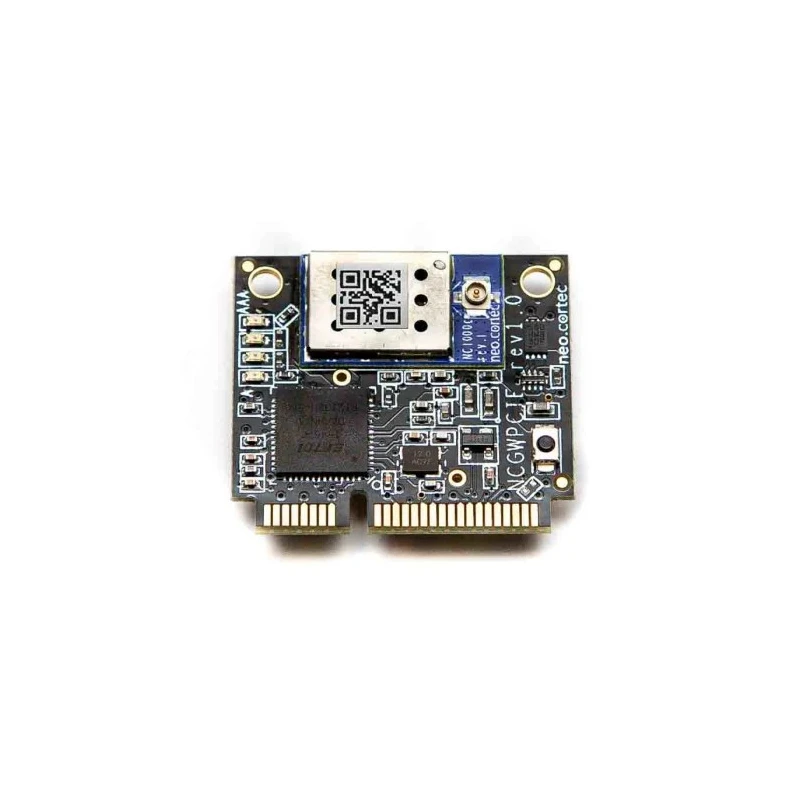

NeoCortec RF Module PCI Interface 915 MHz 2-3.6V Operating Voltage PCINC1000C-8

Name: NeoCortec RF Module PCI Interface 915 MHz 2-3.6V Operating Voltage PCINC1000C-8
Brand: NeoCortec
SKU: 161597



Category RF Modules Brand NeoCortec Condition New

Specifications

Country of Origin	Thailand
Frequency	915MHz
Brand	NeoCortec
Height	3.7mm
Length	27mm
Model	PCINC1000C-8
Width	3mm
Series	NCxxxx
Maximum Operating Temperature	85°C
Sub Type	RF Module
Minimum Operating Temperature	-40°C
Component Type	Module
Interface Type	PCI
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2V

Key Features

Operates at 915 MHz frequency for wireless communication.
Supports minimum supply voltage of 2V and maximum of 3.6V.
Compact dimensions measuring 27mm length, 3.7mm height, and 3mm width.
Designed to connect NeoMesh modules easily to a PC via Mini PCI-E USB interface.
Operates reliably within a temperature range of -40°C to 85°C.
Compatible with NeoGW Linux Gateway open source software for industrial gateway applications.
Facilitates communications through standard IP Sockets for cloud or proprietary server integration.
Supports seamless interface connection to UARTs of NeoMesh modules via PCI interface.

Product Description

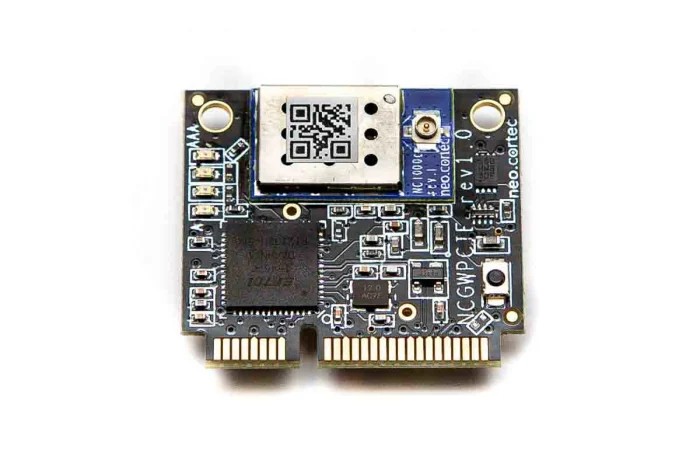

NeoCortec PCINC1000C-8 RF Module is a high-performance communication module designed for seamless wireless connections operating at 915 MHz frequency and a voltage range of 2V to 3.6V. It features a compact form factor with dimensions of 27mm by 3.7mm by 3mm, ideal for embedded applications requiring minimal space. This module uses a PCI interface to facilitate easy integration and connectivity with PCs through the Mini PCI-E card form factor, utilizing USB interface technology to connect UART lines efficiently.

Designed specifically to connect NeoMesh modules to PC environments, the module works optimally in industrial networks, supporting operating temperatures from -40°C to 85°C, making it suitable for harsh environmental conditions encountered in industrial, manufacturing, and automation settings.

The NeoCortec PCINC1000C-8 module works in tandem with the open source NeoGW Linux Gateway software to enable rapid deployment of industrial-grade gateway solutions. Communication between the PC and NeoMesh networks is handled through standard IP Sockets, which allows flexible interfacing with cloud services or proprietary servers via custom applications developed in various programming languages such as Python, Javascript, or C/C++.

This RF module provides a reliable, low-power wireless communication solution applicable in industrial automation, IoT networks, smart metering, environmental monitoring, and other critical wireless sensor network applications requiring robust data transmission with minimal latency and power consumption.

Operates at 915 MHz frequency for wireless communication. Supports minimum supply voltage of 2V and maximum of 3.6V. Compact form factor with length 27mm, height 3.7mm, and width 3mm. PCI interface via Mini PCI-E card enables easy PC integration.

Operating temperature range from -40°C to 85°C suitable for industrial environments. Compatible with NeoGW open-source Linux Gateway software for building industrial gateways. Enables IP Socket communication facilitating cloud and proprietary server connections.

Ideal for industrial automation, IoT, and wireless sensor networks. Set contains 1 PC NeoCortec PCINC1000C-8 RF Module. Country of origin: Thailand. Browse the extensive category of RF Modules on EnvMart for advanced electronic components engineered for optimal wireless communication performance.
