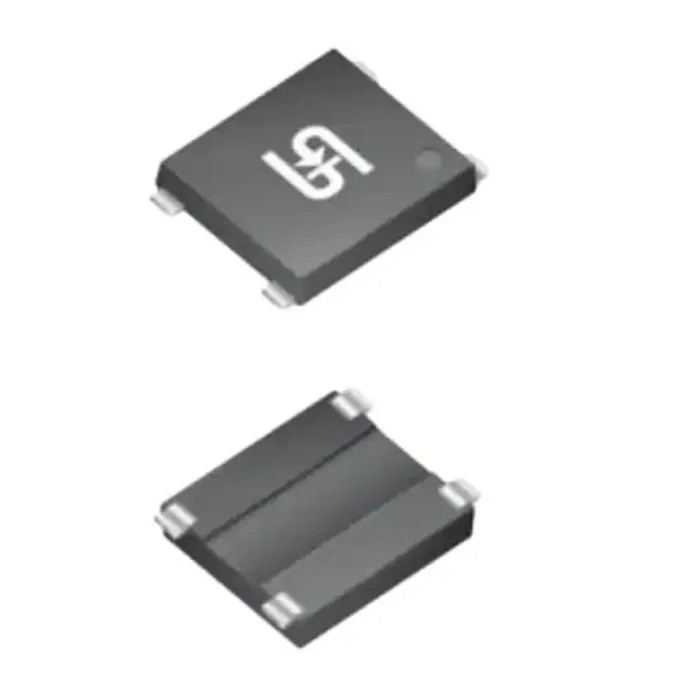

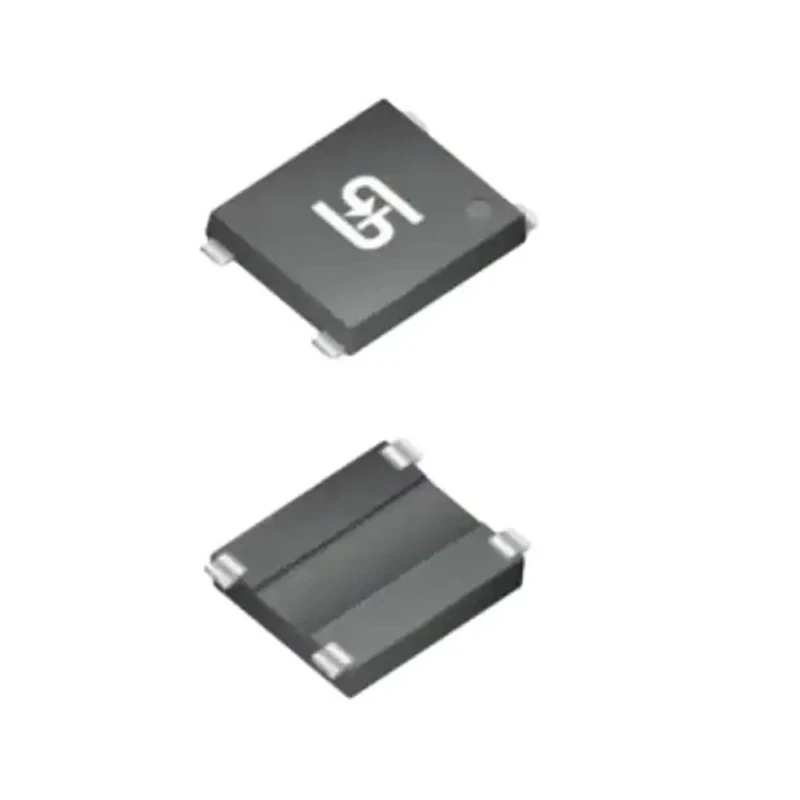

Taiwan Semiconductor Bridge Rectifier 1000 V 90 A 4-Pin Quad YBS2207G

Taiwan Semiconductor YBS2207G Bridge Rectifier 4-Pin Quad is a new, high-performance discrete semiconductor designed for industrial and commercial electronic applications requiring reliable rectification at high voltage and current ratings.

This surface mount device supports a peak reverse repetitive voltage of 1000 V and a forward current of 2.2 A with the ability to surge up to 90 A. The quad 4-pin package type provides a compact footprint suitable for automated PCB assembly.

The semiconductor is glass passivated providing enhanced junction stability and moisture sensitivity level 1 compliance per J-STD-020, ensuring resistance to environmental degradation. Molded in reliable, low-cost plastic encapsulation, it is halogen-free as per IEC 61249-2-21 standards and RoHS compliant, promoting environmentally conscious manufacturing.

Operating temperature ranges from -55°C to 150°C, fitting a wide range of industrial environments. The peak forward voltage of 0.95 V ensures efficient conduction with minimal power loss, complemented by a peak reverse current of zero microamperes minimizing leakage currents.

Applications of the YBS2207G include switching mode power supplies (SMPS), power adapters, lighting controls, and other power conversion equipment in industrial, manufacturing, electronic assembly, and HVAC systems.

The device offers high surge current capability for robust transient handling. Its surface mount design enables high-volume automated manufacture. Compliance with UL and IEC standards confirms safety and quality assurance.

RoHS and halogen-free certifications support sustainable production practices. The quad pin configuration simplifies integration into complex circuits. Its durable, glass passivated junction ensures long life under electrical stress.

The low peak forward voltage reduces heat generation and improves efficiency. The device’s extended temperature range suits harsh operating conditions.

This bridge rectifier is an essential component in modern electronic circuit design, supporting efficient AC to DC conversion for industrial machines, laboratory instruments, commercial electronics, and more. EnvMart provides detailed industrial semiconductor products like the YBS2207G to support engineers and manufacturers with reliable components tailored for precision and durability.

Explore more semiconductor and bridge rectifier options within EnvMart’s Electronics & Electricals category for your power supply and conversion needs.
