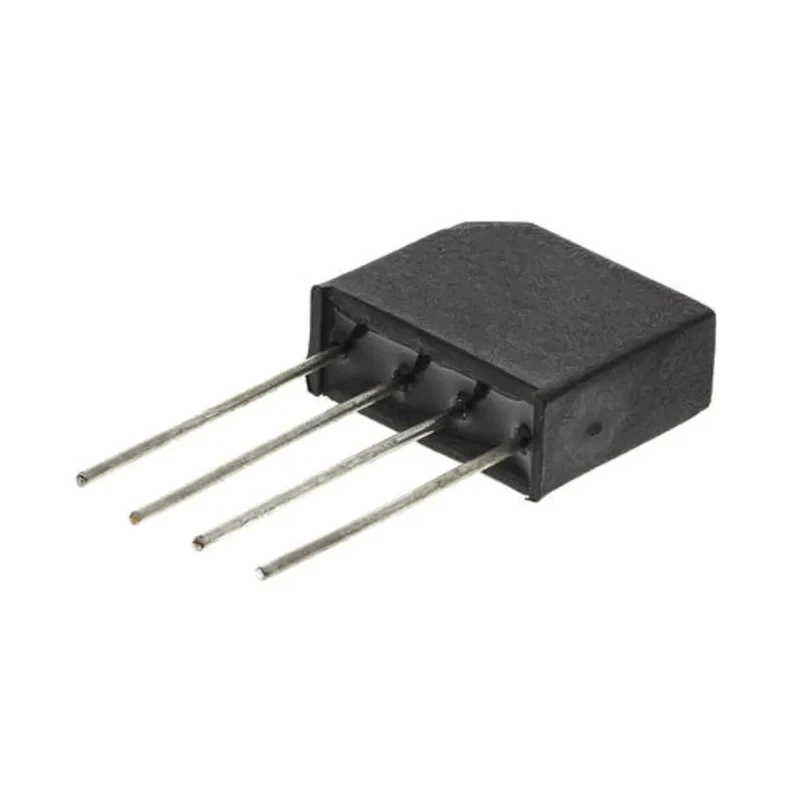

Vishay Bridge Rectifier Single Phase 200 V 52 A 4-Pin Through Hole D-37 Package VS-2KBB20R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 15mm |
| Length | 17.5mm |
| Model | VS-2KBB20R |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | VS-2KBB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-37 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 52A |
| Forward Current If | 1.9A |
| Peak Forward Voltage Vf | 1.1V |
| Standard pin configuration is | - ∼ + ∼ |
| Alternative pin configuration (part no. suffix R) is | - ∼ ∼ + |
| Vishay Bridge Rectifier, 400 V 52 A, 4-Pin SingleBrand | Vishay |
Key Features
- Designed for SIL PCB mounting on a 2.54 mm grid.
- High surge current capability ensures reliable operation.
- Compact construction minimizes board space requirements.
- Operates in temperature ranges from -40°C to 150°C.
- Peak forward voltage is 1.1 V for efficient rectification.
- Peak reverse current is as low as 10 μA.
- Standard pin configuration is - ∼ + ∼ with alternative available.
- Suitable for full-wave rectification converting AC to DC.
Product Description
Vishay VS-2KBB20R Bridge Rectifier is a high-performance discrete semiconductor designed for converting alternating current (AC) input into direct current (DC) output with full-wave rectification capabilities. This single-phase bridge rectifier is assembled in a SIL PCB mounting package (D-37) suitable for through-hole soldering on standard 2.54 mm grid circuit boards.
With a peak reverse repetitive voltage rating of 200 V and a forward current capacity of 1.9 A continuous and 52 A surge, it offers robust performance in demanding electrical environments. The device supports an operating temperature range from -40°C up to 150°C, making it adaptable for industrial, electronics, and power supply applications.
The VS-2KBB20R features a peak forward voltage of 1.1 V and an ultra-low peak reverse current of 10 μA, contributing to energy-efficient circuit design. The compact dimensions (17.5 mm length, 6.5 mm width, and 15 mm height) allow integration in space-constrained assemblies. The standard pin configuration is - ∼ + ∼, with an alternative configuration available for specific wiring requirements.
Engineered to meet high surge current requirements and ease of printed circuit board mounting, this bridge rectifier finds utility in electronic devices, power rectification modules, and industrial automation systems. The construction is equivalent to standard DIN parts, ensuring interchangeability.
Designed for SIL PCB mounting on a 2.54 mm grid. High surge current capability of 52 A peak non-repetitive forward surge current. Extended operating temperature from -40°C to 150°C. Compact size with 17.5 mm length and 6.5 mm width.
Peak reverse repetitive voltage rating at 200 V. Low peak reverse current of 10 μA to minimize leakage. Robust and reliable bridge rectifier for industrial semiconductors. Standard and alternative pin configurations for flexible circuit integration.
Suitable for electronics, power supplies, and manufacturing applications. Explore more Vishay semiconductor components and Bridge Rectifiers with EnvMart's comprehensive electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating of this model is 200 V.
It has a forward current capacity of 1.9 A continuous.
The peak non-repetitive forward surge current is 52 A.
The dimensions of the D-37 package are 17.5 mm in length, 6.5 mm in width, and 15 mm in height.
It operates within a temperature range from -40°C to 150°C.
The standard pin configuration is - ∼ + ∼, with an alternative configuration available.
The peak forward voltage for this bridge rectifier is 1.1 V.
It supports through-hole mounting on a 2.54 mm grid.
The peak reverse current is as low as 10 μA.
This model is suitable for electronics, power supplies, and manufacturing applications.
The country of origin for this model is India.
This bridge rectifier operates on a single phase.
