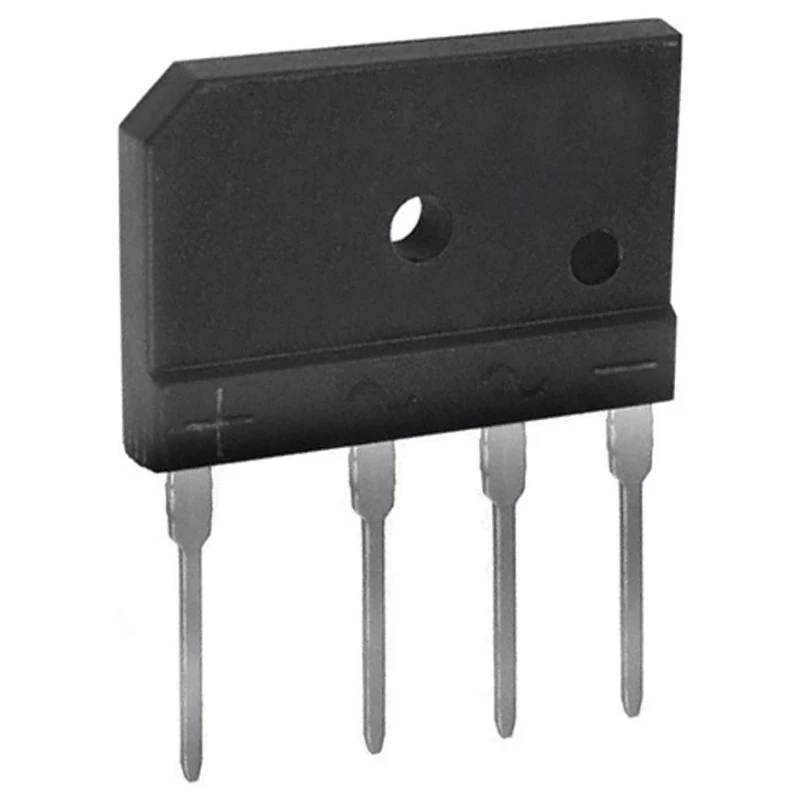

HY Electronic Corp Bridge Rectifier, 1000 V Peak Reverse Voltage, 240 A Surge Current, 4-Pin Through Hole GBJ1510
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 19.7mm |
| Length | 30.3mm |
| Model | GBJ1510 |
| Width | 4.8mm |
| Mount Type | Through Hole |
| Series | GBJ |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBJ |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 240A |
| Forward Current If | 15A |
| Peak Forward Voltage Vf | 1V |
Key Features
- Single phase bridge rectifier with 4 pins for through-hole mounting.
- Rated maximum forward current of 15 A for reliable power conversion.
- Operates within temperature range of -55°C to 150°C.
- Low forward voltage drop of 1 V ensures efficient conduction.
- Peak reverse current of 500 μA minimizes leakage and power loss.
- Compact dimensions of 30.3 mm length and 19.7 mm height.
- Plastic housing with UL94V-0 flammability rating enhances safety.
- Glass passivated semiconductor device offering durability and stability.
Product Description
HY Electronic Corp GBJ1510 Bridge Rectifier is a high-performance semiconductor device designed to efficiently convert alternating current (AC) into direct current (DC). This single-phase bridge rectifier features a 4-pin through-hole package type of the GBJ series, rated for a peak reverse repetitive voltage (VRRM) of 1000 V and a maximum forward current of 15 A, making it suitable for demanding electronic applications.
The device supports a peak non-repetitive forward surge current of 240 A and operates reliably within a wide temperature range from -55°C to 150°C. It features a low forward voltage drop of 1 V, promoting energy efficiency by minimizing power dissipation during conduction.
Constructed with glass passivated technology and housed in a plastic package with UL94V-0 flammability classification, this bridge rectifier ensures both robust electrical performance and enhanced safety standards.
Its physical dimensions of 30.3 mm length, 19.7 mm height, and 4.8 mm width provide a compact footprint for efficient PCB assembly through its through-hole mount style. The 4-pin configuration is engineered for single-phase rectification duties in power supplies and industrial electronic circuits.
Typical applications include power conditioning, electronics manufacturing, industrial control equipment, and other environments requiring stable DC power conversion. Single phase, 4-pin through-hole bridge rectifier. Peak reverse voltage rating of 1000 V.
Maximum forward current: 15 A. Peak forward surge current up to 240 A. Wide operating temperature range (-55°C to 150°C). Low forward voltage drop of 1 V. Plastic package with UL94V-0 flammability rating. Glass passivated semiconductor technology.
Compact dimensions: 30.3 mm x 19.7 mm x 4.8 mm.
This bridge rectifier from HY Electronic Corp is designed for applications in industrial electronics, power supply systems, and other domains where reliable and efficient AC to DC conversion is required. Its sturdy construction and high electrical ratings make it an ideal component for enhancing the performance and safety of electrical circuits.
Explore more about Bridge Rectifiers and related semiconductor components at EnvMart to find the ideal fit for your industrial or laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This unit has a maximum forward current rating of 15 A.
It can handle a peak non-repetitive forward surge current of up to 240 A.
The operating temperature range is from -55°C to 150°C.
It features a low forward voltage drop of 1 V, which promotes energy efficiency during conduction.
The dimensions of this model are 30.3 mm in length, 19.7 mm in height, and 4.8 mm in width.
It uses a through-hole mounting type, which is suitable for PCB assembly.
This model has a 4-pin configuration designed for single-phase rectification duties.
It is constructed with glass passivated technology and housed in a plastic package with a UL94V-0 flammability rating.
This bridge rectifier is suitable for applications in power conditioning, electronics manufacturing, and industrial control equipment.
