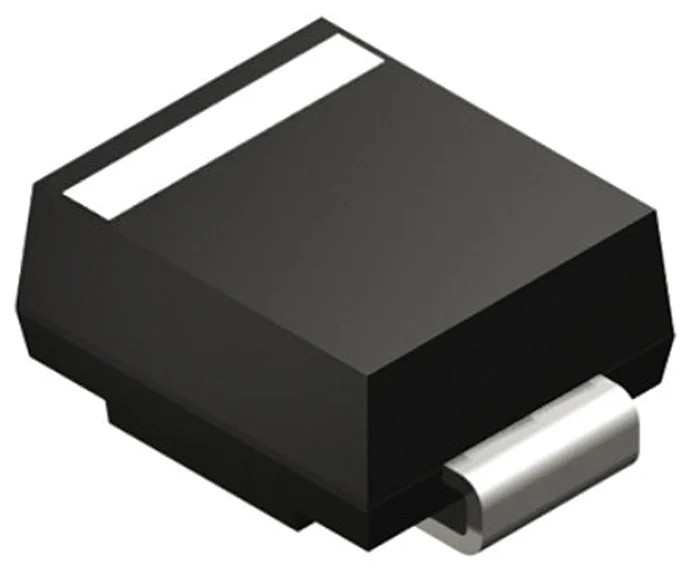

HY Electronic Corp 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 SMBJ5.0A

HY Electronic Corp SMBJ5.0A is a 1-element uni-directional transient voltage suppressor (TVS) diode designed for surface mount technology (SMT) applications. It operates with a peak pulse power dissipation capability of 600 W and is housed in a 2-pin DO-214 package. This diode offers reliable protection against voltage spikes and transient surges in electronic circuits.

The diode features a single uni-directional configuration delivering fast response times of less than 1.0 ns, making it suitable for safeguarding sensitive electronic components from transient overvoltage conditions. Its minimum breakdown voltage is 6.4 V and maximum reverse stand-off voltage is 5 V, with a clamping voltage of 9.2 V ensuring efficient voltage suppression.

The device can operate over a wide temperature range from -55°C to 150°C, enabling stable performance in diverse industrial environments including electronics manufacturing, telecommunications, automation, and power supply systems. The low leakage current of 800 μA and a maximum peak pulse current rating of 65.2 A underscore its robustness for surge protection.

Constructed using UL 94V-0 recognized plastic material, this diode meets high safety standards. Measuring a compact 4.7 mm in length, 3.94 mm in width, and 2.24 mm in height, it facilitates space-saving board layouts. The product is manufactured in China under HY Electronic Corp's SMBJ series renowned for quality and reliability.

The SMBJ5.0A TVS diode is ideal for applications requiring effective transient voltage suppression such as industrial control systems, consumer electronics, automotive electronics, and communication equipment. Its surface mount design enables automated assembly and integration into printed circuit boards.

Uni-directional diode configuration suitable for voltage spike suppression. Surface mount design with DO-214 package type ensures compact mounting. Minimum breakdown voltage is 6.4 V ensuring protection from transient voltages.

Clamping voltage of 9.2 V for fast response to voltage spikes. Operating temperature range from -55°C to 150°C for versatile industrial usage. Maximum peak pulse current of 65.2 A for robust transient absorption. Lead-free plastic material with UL 94V-0 flame recognition for safety compliance.

Compact dimensions: length 4.7 mm, width 3.94 mm, height 2.24 mm. Manufactured in China, ensuring consistent quality standards. Explore the Electronics Components category at EnvMart for specialized TVS Diodes and related semiconductor components to support your industrial and laboratory electronics needs.
