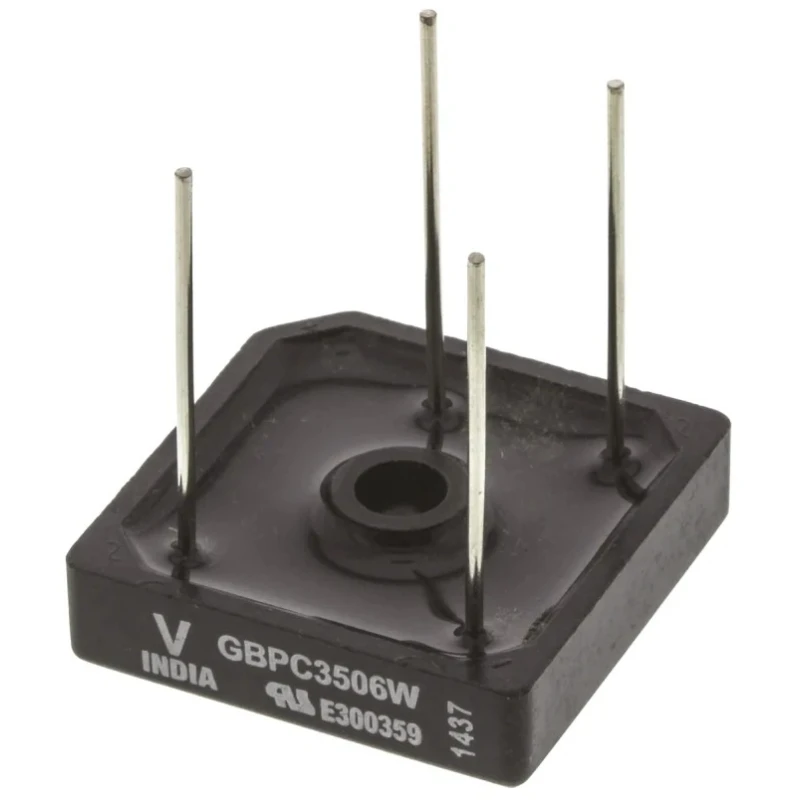

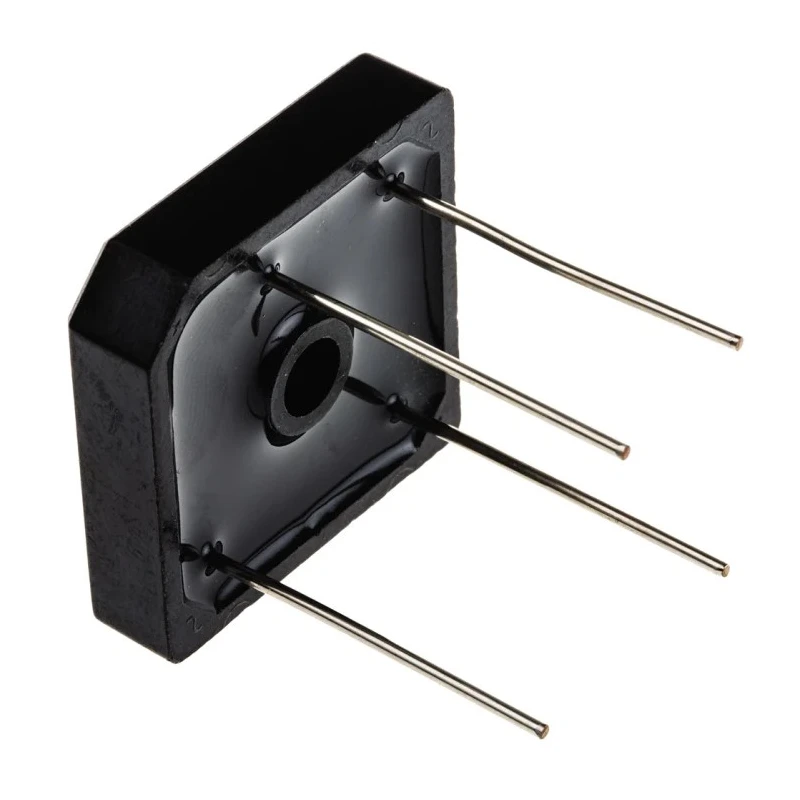

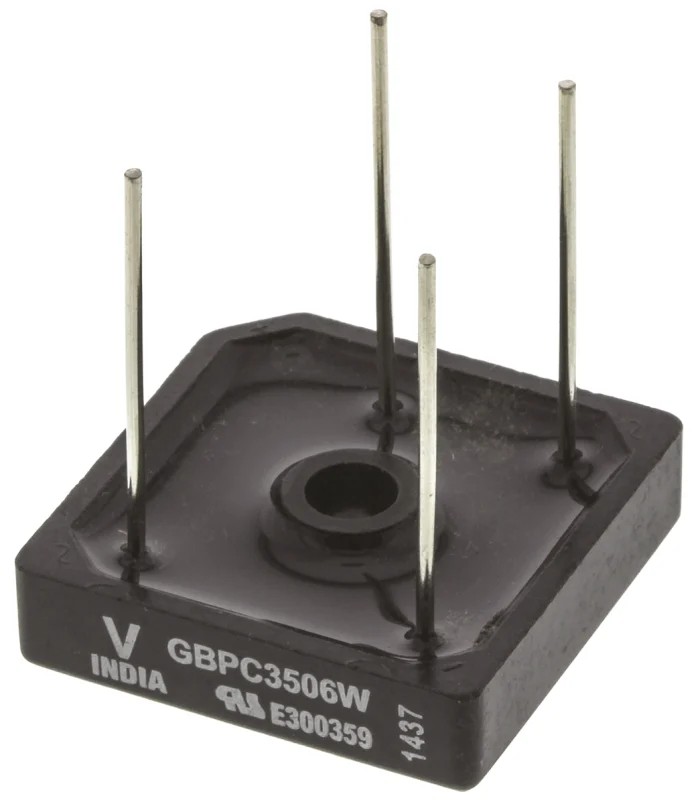

Vishay Bridge Rectifier, 600 V 400 A, 4-Pin Single VS-GBPC3506W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 7.62mm |
| Length | 28.8mm |
| Model | VS-GBPC3506W |
| Width | 28.8mm |
| Mount Type | Through Hole |
| Series | VS-GBPC |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | GBPC |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Forward Current If | 35A |
| Peak Forward Voltage Vf | 1.1V |
| Vishay Bridge Rectifier, 25A, 600V, 4-PinBrand | Vishay |
| Vishay Bridge Rectifier, 400 V 400 A, 4-Pin SingleBrand | Vishay |
Key Features
- Operates efficiently with a peak reverse repetitive voltage of 600 V.
- Through hole mount with compact GBPC package type suitable for PCB and chassis mounting.
- Supports a forward current of 35 A and a peak non-repetitive forward surge current of 400 A.
- Operates reliably within temperature range from -55°C to 150°C.
- Features a peak forward voltage drop of 1.1 V and very low peak reverse current.
- Designed with a single-phase, 4-pin configuration for efficient diode arrangement.
- Compact construction with center hole fixing ensures low thermal resistance and high reliability.
- Suitable for industrial electronic power supply applications requiring robust rectification.
Product Description
Vishay VS-GBPC3506W Bridge Rectifier is a specialized electronic component engineered for converting AC input into DC output using full-wave rectification, making it ideal for power supply applications in industrial, electronic, and manufacturing equipment.
This 600 Volt, 400 Amp 4-pin single diode bridge rectifier features a compact GBPC package suitable for through-hole mounting on printed circuit boards or chassis. Its rugged design ensures low thermal resistance and high reliability for demanding operational environments.
The rectifier supports a forward current of 35 Amperes with a peak forward surge current of 400 Amperes. It operates effectively in temperatures ranging from -55°C to +150°C, providing versatility across various industrial and electronic uses.
With peak forward voltage of 1.1 Volt and minimal peak reverse current of 5 microamperes, it guarantees efficient rectification performance. The device dimensions of 28.8 mm length, 28.8 mm width, and 7.62 mm height make it well-suited for compact installations.
The 4-pin single-phase configuration allows easy integration into full-wave rectifier circuits, ensuring the same polarity output from alternating polarity inputs. Efficient full-wave AC to DC conversion for electronic power supplies.
Compact GBPC package with center hole fixing for low thermal resistance. Robust performance under high current and temperature conditions. Suitable for printed circuit board or chassis mounting. Low forward voltage drop and peak reverse current for power efficiency.
Wide operational temperature range for industrial applications. Reliable diode bridge configuration for consistent output polarity.
This bridge rectifier from Vishay is designed for use in electronic components, semiconductor devices, and power supply modules, making it a key component in industrial electronics and manufacturing systems.
Explore more Vishay Semiconductor components and Bridge Rectifiers on EnvMart to support your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the Vishay VS-GBPC3506W is 600 V.
This bridge rectifier supports a maximum forward current of 35 A.
The peak non-repetitive forward surge current rating is 400 A.
It operates reliably within a temperature range of -55°C to 150°C.
The peak forward voltage drop is 1.1 V.
The dimensions of this bridge rectifier are 28.8 mm in length, 28.8 mm in width, and 7.62 mm in height.
It features a through-hole mount suitable for PCB and chassis mounting.
The VS-GBPC3506W uses a single-phase, 4-pin configuration for efficient diode arrangement.
The peak reverse current is 5 microamperes (5 μA).
It comes in a compact GBPC package type.
This bridge rectifier is typically used in industrial electronic power supply applications requiring robust rectification.
The country of origin for the Vishay VS-GBPC3506W is India.
