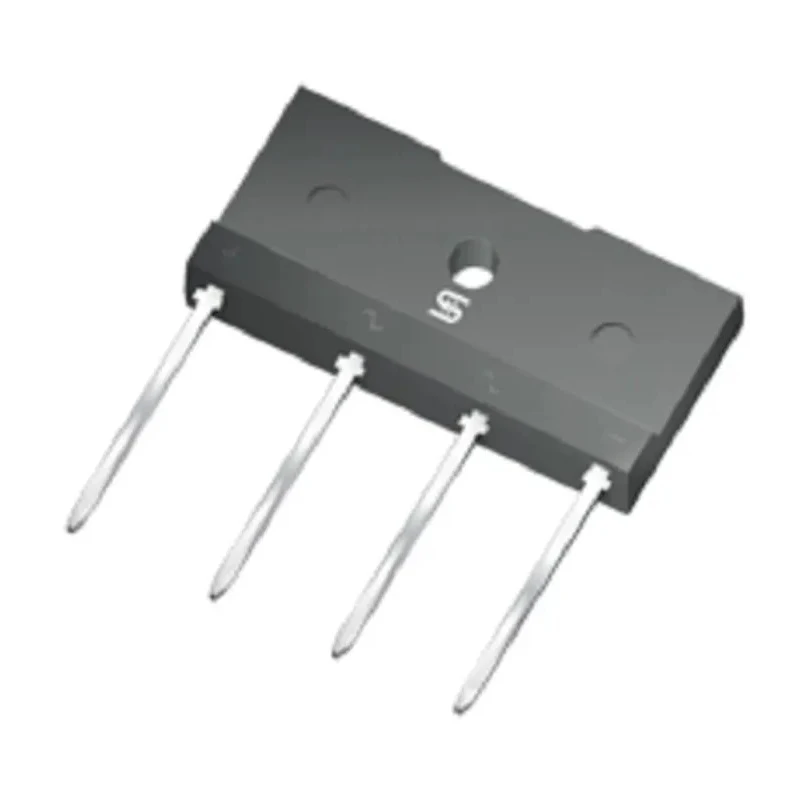

Taiwan Semiconductor Bridge Rectifier, Through Hole TS-6PL Package, 600 V Peak Reverse Voltage, 144 A Surge T10JA05G-K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 30mm |
| Length | 29.3mm |
| Model | T10JA05G-K |
| Mount Type | Through Hole |
| Configuration | Quad |
| Maximum Operating Temperature | 150°C |
| Package Type | TS-6PL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Standards/Approvals | RoHS, UL, IEC 61249-2-21 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 0μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 144A |
| Forward Current If | 10A |
| Peak Forward Voltage Vf | 1.1V |
Key Features
- This bridge rectifier is suitable for switching mode power supply applications.
- It features a quad 4-pin configuration ensuring efficient rectification.
- Operates within a wide temperature range from -55°C to 150°C.
- High surge current capability with a peak forward surge current of 144 A.
- Glass passivated chip junction provides stability and reliability.
- Designed for printed circuit board integration.
- Halogen-free and RoHS compliant for environmental safety.
- Recognized by UL under file number E-326243.
Product Description
Taiwan Semiconductor T10JA05G-K Bridge Rectifier is a high-performance electronic component designed for power rectification in various industrial and commercial applications. Featuring a through-hole mount and TS-6PL packaging, it supports a peak reverse repetitive voltage of 600 V and a forward current of 10 A, making it ideal for use in switching mode power supplies (SMPS), adapters, and lighting applications.
This quad configuration bridge rectifier has a 4-pin layout, simplifying PCB assembly and enhancing durability. It is capable of withstanding a peak non-repetitive forward surge current of 144 A, ensuring reliable operation under transient conditions. The device operates effectively within a temperature range from -55°C to 150°C, suitable for various industrial environments.
The glass passivated chip junction technology enhances the device’s reliability and performance stability. Additionally, it is RoHS compliant and halogen-free according to IEC 61249-2-21 standards, contributing to environmentally responsible manufacturing practices. This component is UL recognized under file number E-326243, assuring adherence to stringent safety and quality criteria.
Ideal for applications in industrial power conversion, manufacturing equipment, HVAC systems, and commercial lighting, this bridge rectifier supports efficient and dependable operation. Its through-hole design facilitates robust physical connections on printed circuit boards, suitable for both prototype development and mass production.
This bridge rectifier is suitable for switching mode power supply applications. It features a quad 4-pin configuration ensuring efficient rectification. Operates within a wide temperature range from -55°C to 150°C. High surge current capability with a peak forward surge current of 144 A.
Glass passivated chip junction provides stability and reliability. Designed for printed circuit board integration. Halogen-free and RoHS compliant for environmental safety. Recognized by UL under file number E-326243. Browse the Electronics & Electricals category for more semiconductor and discrete component solutions at EnvMart.
Explore more products in our Bridge Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can withstand a peak non-repetitive forward surge current of 144 A.
This model operates within a temperature range from -55°C to 150°C.
The forward current rating is 10 A.
It features a through-hole mount type for easy integration into printed circuit boards.
It has a quad configuration with a 4-pin layout.
The dimensions are 30 mm in height and 29.3 mm in length.
Yes, it is RoHS compliant and halogen-free according to IEC 61249-2-21 standards.
It is recognized by UL under file number E-326243 and complies with RoHS and IEC 61249-2-21 standards.
The peak forward voltage is 1.1 V.
The country of origin is India.
