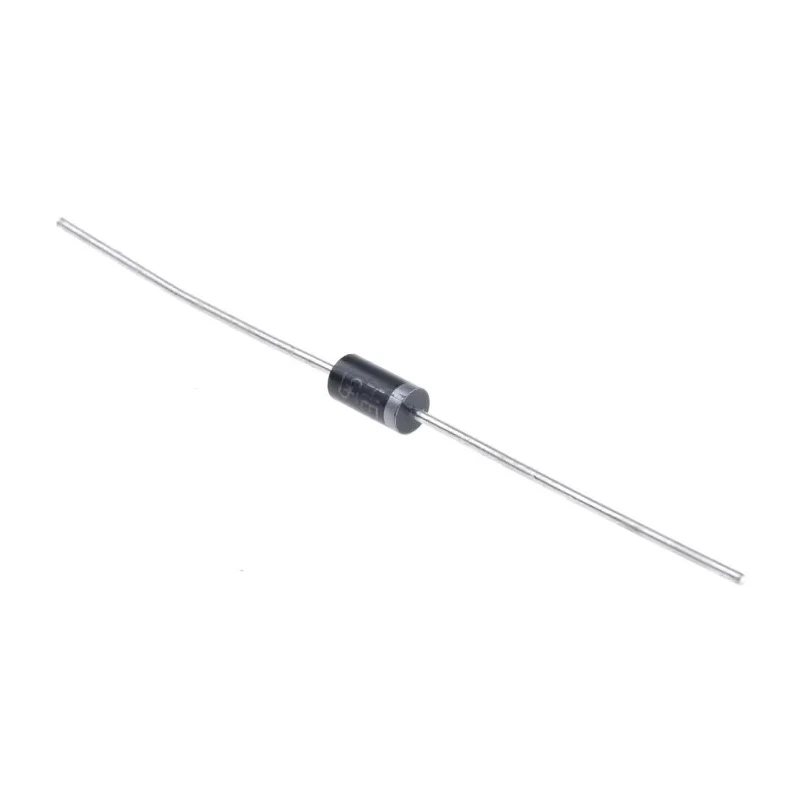

Taiwan Semiconductor 1 kV 2 A Switching Diode 2-Pin DO-15 HER208G
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.6mm |
| Brand | Taiwan Semiconductor |
| Height | 3.6mm |
| Length | 7.6mm |
| Model | HER208G |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Series | HER208G |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-1956PBrand: Taiwan SemiconductorManufacturers Part No.: HER208G |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 1.7V |
| Peak Reverse Recovery Time trr | 75ns |
| Taiwan Semiconductor 1 kV 2 A Diode Switching 2-Pin DO-15RS Stock No. | 688-1956PBrand: Taiwan SemiconductorManufacturers Part No.: HER208G |
Key Features
- The diode supports a maximum continuous forward current of 2 amperes.
- It has a peak reverse repetitive voltage rating of 1 kilovolt.
- The device offers a maximum forward voltage of 1.7 volts.
- Peak reverse recovery time of 75 nanoseconds enables fast switching performance.
- It operates reliably within a temperature range of -65°C to 150°C.
- The package dimensions include 7.6 mm length and 3.6 mm diameter.
- The diode features a peak non-repetitive forward surge current rating of 60 amperes.
- It complies with automotive standard AEC-Q101, ensuring automotive-grade reliability.
Product Description
Taiwan Semiconductor HER208G is a high-quality switching diode rated at 1 kV maximum reverse voltage and 2 A continuous forward current. It is housed in a robust 2-pin DO-15 through-hole package, providing reliable performance in a variety of electronic and industrial applications.
This diode is particularly suitable for use in power rectification and switching circuits, offering fast switching speeds with a peak reverse recovery time of 75 nanoseconds. Its rugged construction and compliance with the AEC-Q101 automotive standard make it ideal for automotive and industrial power management systems.
The diode operates within a broad temperature range from -65°C to 150°C, ensuring durability and stability in harsh environments. The low peak reverse current of 5 microamperes allows for energy-efficient switching, reducing power losses.
Physical dimensions include a length of 7.6 mm and diameter of 3.6 mm, making it compatible with standard PCB layouts for through-hole assembly. The diode supports a maximum continuous forward current of 2 amperes. Peak reverse repetitive voltage is 1 kilovolt, suitable for high voltage switching applications.
Maximum forward voltage drop is 1.7 volts, ensuring efficient power handling. Peak non-repetitive forward surge current of 60 amperes accommodates transient surges. Compliance with automotive AEC-Q101 standard signifies high quality and reliability.
Operating temperature range from -65°C to 150°C enhances versatility. Low peak reverse current of 5 microamperes reduces leakage losses. Compact DO-15 package with 2 pins enables straightforward installation. Single diode configuration fulfills standard circuit needs.
This switching diode is widely used in power supplies, automotive electronics, industrial control systems, and other applications requiring reliable fast switching capabilities. Explore similar semiconductor products and other electronic components at EnvMart for comprehensive sourcing solutions.
Explore more products in our Semiconductor Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 amperes.
This model has a peak reverse repetitive voltage rating of 1 kilovolt (1 kV).
The maximum forward voltage drop for this diode is 1.7 volts.
The peak reverse recovery time is 75 nanoseconds, enabling fast switching performance.
It operates reliably within a temperature range of -65°C to 150°C.
The diode has a length of 7.6 mm and a diameter of 3.6 mm.
This diode is housed in a DO-15 package type, suitable for through-hole mounting.
The peak non-repetitive forward surge current rating is 60 amperes.
It complies with the AEC-Q101 automotive standard, ensuring automotive-grade reliability.
The peak reverse current is 5 microamperes (5μA).
This model features a single diode configuration.
This switching diode is suitable for power rectification and switching circuits, and is widely used in automotive electronics and industrial control systems.
