Bourns Schottky Barrier Bridge Rectifier, Surface Mount SMT Package, 100 V 2 A Forward Current CD-HD201

Free Delivery in India | Lowest Global Shipping Charges

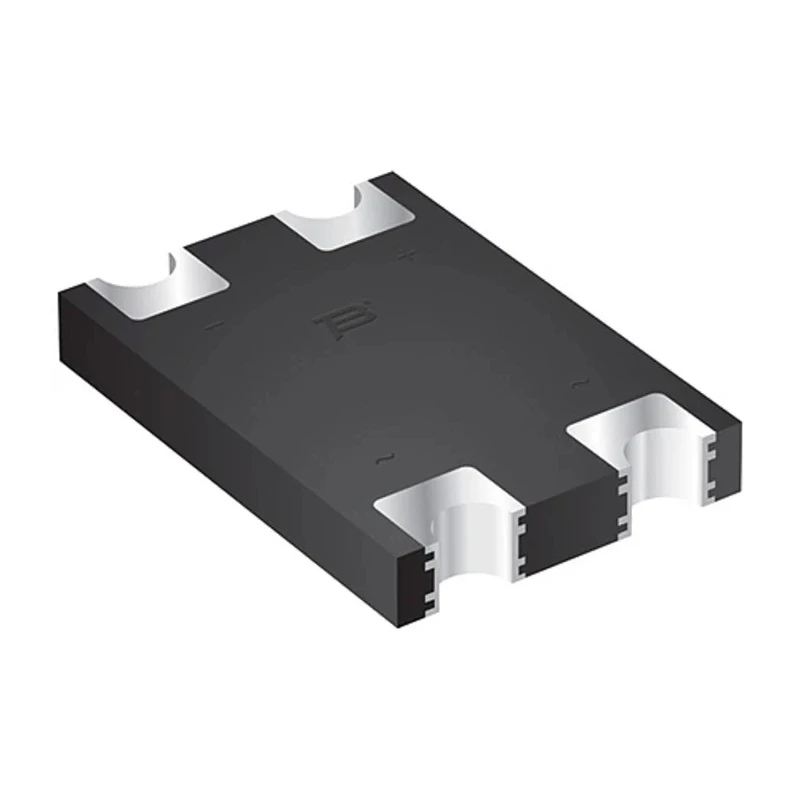

Bourns Schottky Barrier Bridge Rectifier, Surface Mount SMT Package, 100 V 2 A Forward Current CD-HD201

Name: Bourns Schottky Barrier Bridge Rectifier, Surface Mount SMT Package, 100 V 2 A Forward Current CD-HD201
Brand: BOURNS
SKU: 143143
Price: 0.67 USD
Availability: InStock



Category Bridge Rectifiers Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	1.22mm
Length	6.25mm
Model	CD-HD201
Width	4.85mm
Mount Type	Surface
Series	CD-HD2
Configuration	Single
Maximum Operating Temperature	125°C
Package Type	SMT
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	100V
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	2A
Peak Forward Voltage Vf	850mV

Key Features

Utilizes Schottky barrier technology for ultra low forward voltage drop.
Compact low-profile surface mount package suitable for modern PCB designs.
Single phase bridge rectifier configuration with 4 pins.
Peak forward surge current capacity of 50 A.
Wide operating temperature range from -55°C to 125°C.
Forward voltage of 850 mV ensures efficient rectification.
Peak reverse current specified at 200 µA enhances reliability.
Ideal for power conversion and electronic circuits requiring robust rectifiers.

Product Description

Bourns CD-HD201 bridge rectifier is a high performance Schottky barrier device designed for efficient rectification of AC to DC signals in electronics applications. Featuring a surface mount technology (SMT) package type, this component is designed to be mounted on printed circuit boards with minimal space usage.

The device supports a peak reverse repetitive voltage (VRRM) of 100 volts and a forward continuous current rating of 2 amperes. Its capability to withstand peak non-repetitive forward surge current of up to 50 amperes enhances protection during transient conditions.

Operating temperatures from -55°C to 125°C make this bridge rectifier suitable for industrial and commercial applications including power supplies, motor controllers, and other semiconductor circuits.

Schottky barrier technology provides ultra low forward voltage drop (850 mV), resulting in lower power loss and improved efficiency in power conversion systems. The compact 4-pin single-phase configuration and SMT surface mount package simplify integration in compact, high-density electronic assemblies.

Utilizes Schottky barrier technology for ultra low forward voltage drop. Compact low-profile SMT surface mount package. 100 V peak reverse voltage and 2 A forward current ratings. Designed for high surge current tolerances (50 A peak surge).

Wide operating temperature range requirements met (-55°C to 125°C). Dimensions approximately 6.25 mm length, 4.85 mm width, 1.22 mm height. Reliable peak reverse current of 200 µA under rated conditions. Single phase, 4-pin diode bridge rectifier configuration suitable for power electronics.

This Bourns bridge rectifier is optimized for industrial and commercial electronics, including power conversion modules, consumer electronics, and automotive applications that do not require automotive-standard certification.

Explore more semiconductor components and Bridge Rectifiers on EnvMart for a complete electronics components supply.
