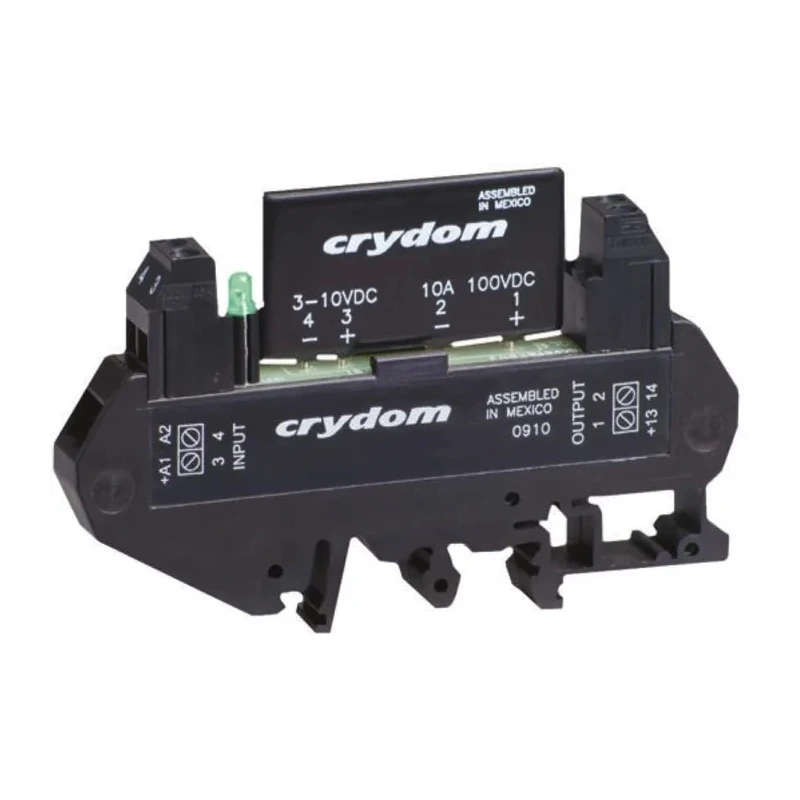

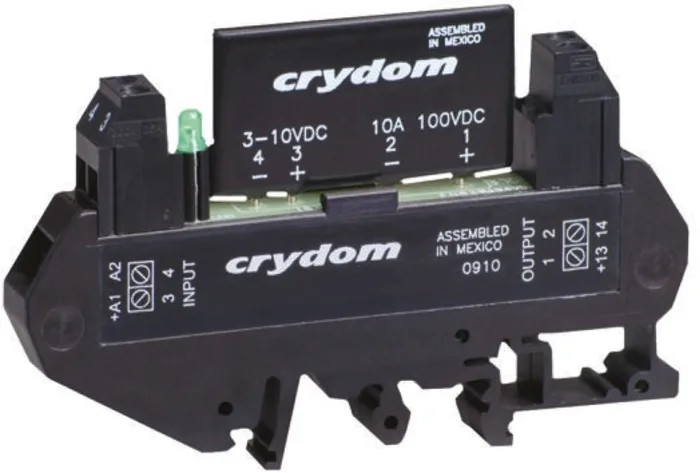

Sensata / Crydom Solid State Interface Relay DIN Rail Mount, Control Voltage 28V DC, 10mm Single Channel DRA1

The Sensata / Crydom DRA1-CMXE200D3 is a high-quality Solid State Interface Relay designed specifically for DIN rail mounting applications. It operates with a control voltage of 28V DC and provides reliable switching for DC loads up to 200 V and 8 A, suitable for industrial automation, electrical control panels, and process control systems.

This device features a 10mm single channel SSR assembly with a SPST-NO switching function. Its cage style screw terminals ensure secure and straightforward wiring. Compatible with standard 35mm DIN rails, it facilitates easy installation and integration within control panels.

An integrated LED status indicator allows clear visual confirmation of relay operation, improving troubleshooting and monitoring capabilities.

Operating within a control voltage range of 20-28 V DC, the relay delivers robust performance and switching reliability for demanding environments. The DIN rail socket limits the continuous current rating to 8A, ensuring safety and longevity of the modular assembly.

This solid state relay is well-suited for applications in electrical automation, manufacturing process controls, HVAC systems, and other industrial environments requiring precise control interface relays.

Mounts on standard 35mm DIN rail for flexible installation. Single channel 10mm SSR form factor with SPST-NO switch. DC switching capacity up to 200 V DC and 8 A continuous current. Cage style screw terminals for reliable electrical connection.

LED status indicator for clear operational feedback. Control voltage range: 20 to 28 V DC. Explore more Solid State Interface Relays and related electrical control products at EnvMart to fulfill your industrial automation needs.
