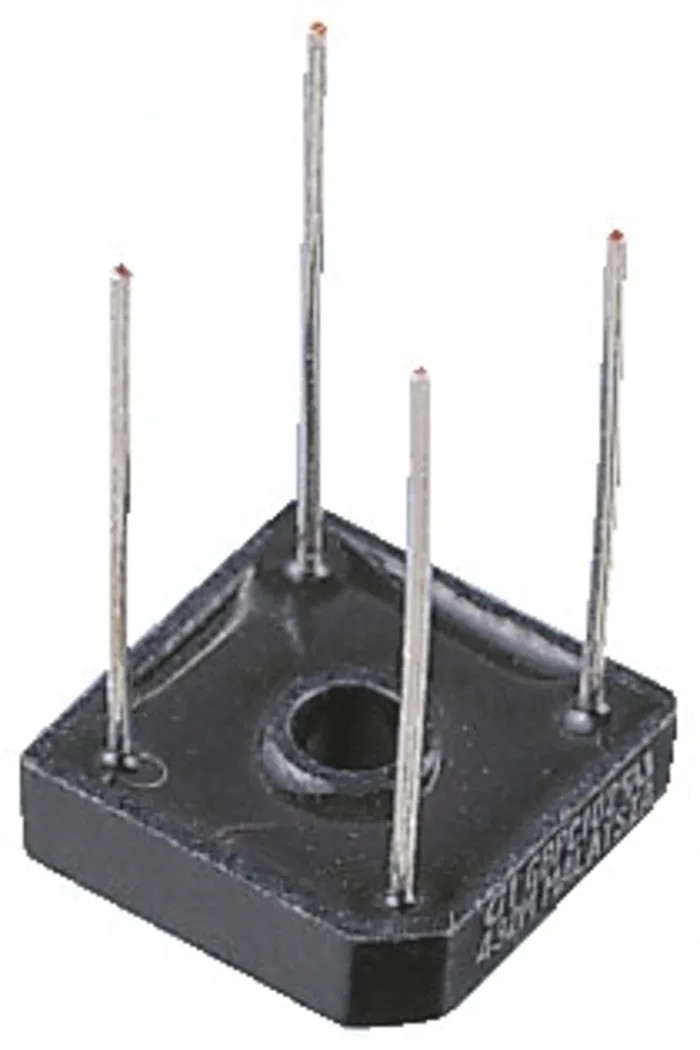

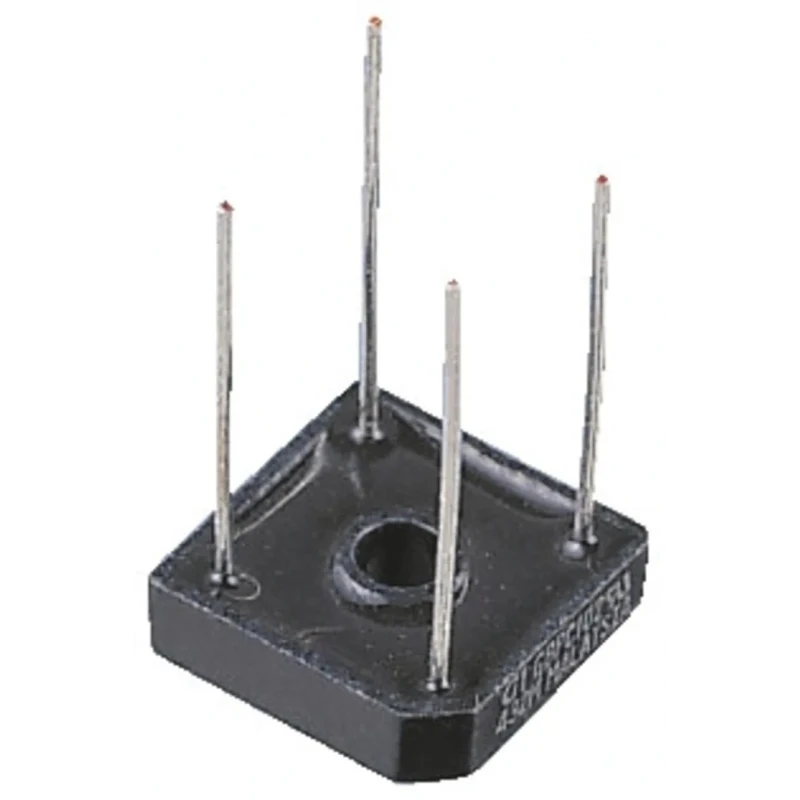

Vishay High Surge Current Bridge Rectifier 600 V 6 A 175 A Peak Single Phase 4-Pin GBPC606-E4/51

Vishay GBPC606-E4/51 Bridge Rectifier is a robust single-phase, 4-pin bridge rectifier designed to convert alternating current (AC) to direct current (DC) with full-wave rectification capability. The GBPC package type offers a compact and reliable form factor suitable for through-hole mounting in electronic circuits.

With a peak reverse repetitive voltage (Vrrm) of 600 V and a forward current rating of 6 A, this rectifier supports demanding power conversion tasks in industrial and commercial environments. Its high peak non-repetitive forward surge current of 175 A enables it to withstand transient surges often encountered in power supplies and motor control applications.

The device operates efficiently across a wide temperature range from -55°C to 150°C, supporting reliable performance in various industrial and environmental conditions. The glass passivated semiconductor technology ensures low leakage currents, typically less than 0.5 μA, enhancing circuit stability.

Physically, the rectifier dimension is compact with a length and width of 16 mm and a height of 5.08 mm, making it suitable for tight spaces in power electronics assemblies. It is designed for high case dielectric strength of 1500 Vrms and features fast-on push terminals for secure electrical connections.

This Vishay bridge rectifier is ideal for use in power supplies, battery chargers, motor drives, and other applications where converting AC to DC efficiently and reliably is essential. Its high surge capability and packaging provide durability and performance expected in industrial electronics and automation.

The rectifier supports a forward current of 6 A for single-phase full-wave rectification. Compact GBPC package with 4 pins is suitable for through-hole mounting. Operates reliably within temperature range -55°C to 150°C.

Features high case dielectric strength of 1500 Vrms and glass passivated semiconductor technology. Peak forward voltage is rated at 1 V with a minimal peak reverse current of 500 μA. Measures 16 mm in length, width, and has a height of 5.08 mm for easy integration.

Designed for industrial and commercial electronic power applications requiring robust bridge rectification. Manufactured in China ensuring quality and consistency. Explore the comprehensive range of Vishay Bridge Rectifiers and other semiconductor components at EnvMart, ideal for your electronic manufacturing and maintenance needs.
