Infineon General Purpose 1600 V 550 A Rectifier Diode Module Screw Mount 3-Pin Tray DD340N16SHPSA1

Free Delivery in India | Lowest Global Shipping Charges

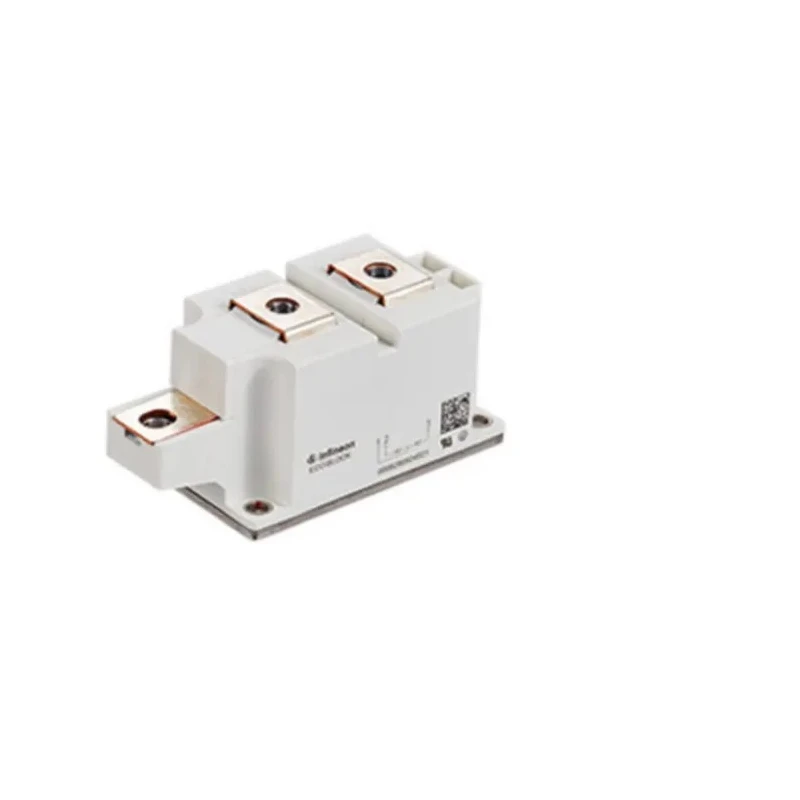

Infineon General Purpose 1600 V 550 A Rectifier Diode Module Screw Mount 3-Pin Tray DD340N16SHPSA1

Name: Infineon General Purpose 1600 V 550 A Rectifier Diode Module Screw Mount 3-Pin Tray DD340N16SHPSA1
Brand: Infineon
SKU: 172026
Price: 118.19 USD
Availability: InStock



Category Rectifier Diode Brand Infineon Condition New

Specifications

Country of Origin	India
Diameter	6mm
Brand	Infineon
Height	53mm
Length	115mm
Model	DD340N16SHPSA1
Width	50mm
Mount Type	Screw
Series	DD340N16S
Maximum Operating Temperature	130°C
Package Type	Tray
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Continuous Forward Current If	550A
Peak Reverse Repetitive Voltage Vrrm	1600V
Diode Configuration	Series
Rectifier Type	General Purpose
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	10000A
Maximum Forward Voltage Vf	1.31V

Key Features

Designed for general purpose rectification applications.
Features screw mount type and comes in a tray package.
3-pin configuration supports series diode arrangement.
Operates at a maximum temperature of 130°C and minimum of -40°C.
Low maximum forward voltage of 1.31 V ensures efficient conduction.
Supports high surge current up to 10000 A peak non-repetitive forward surge current.
Constructed with an electrically insulated copper base plate for effective heat dissipation.
No automotive standard or certifications are applicable.

Product Description

Infineon DD340N16SHPSA1 General Purpose Rectifier Diode Module is engineered to provide reliable performance in high power electronic applications. Rated for 1600 V peak reverse voltage and a maximum continuous forward current of 550 A, this screw mount diode module offers robust phase control capabilities commonly required in industrial power conversion and control systems.

The module features a 3-pin series diode configuration housed in a tray package, facilitating straightforward mounting and secure electrical connections. Its solid base plate construction enhances thermal management through an electrically insulated copper interface, promoting longevity and stable operation under demanding conditions.

Designed for operation in temperatures ranging from -40°C to 130°C, this rectifier diode accommodates harsh industrial environments. The maximum forward voltage of 1.31 V ensures efficient conduction minimizing power losses in the circuit.

This device supports a peak non-repetitive forward surge current of up to 10000 A, making it suitable for transient load handling and protective scenarios in power electronic systems. Its compact dimensions of 115 mm length, 50 mm width, and 53 mm height make it adaptable for integration in various power module designs.

Designed for general purpose rectification applications. Features screw mount type and tray package for ease of installation. 3-pin serial diode configuration. Wide operating temperature from -40°C to 130°C. Maximum forward voltage of 1.31 V for optimized efficiency.

Supports high surge currents up to 10000 A. Compact size and lightweight design at 370 grams. Electrically insulated copper base plate ensures excellent thermal conductivity. No automotive standards certification required.

Reliable solution for industrial, power supply, and HVAC applications.

This Infineon rectifier diode module is ideal for use in industrial power electronics, renewable energy inverters, motor drives, and uninterruptible power supplies. Its robust design and high current capability contribute to enhanced system performance and reliability.

Explore more Rectifier Diode modules and power semiconductor products at EnvMart for your electronic component needs.
