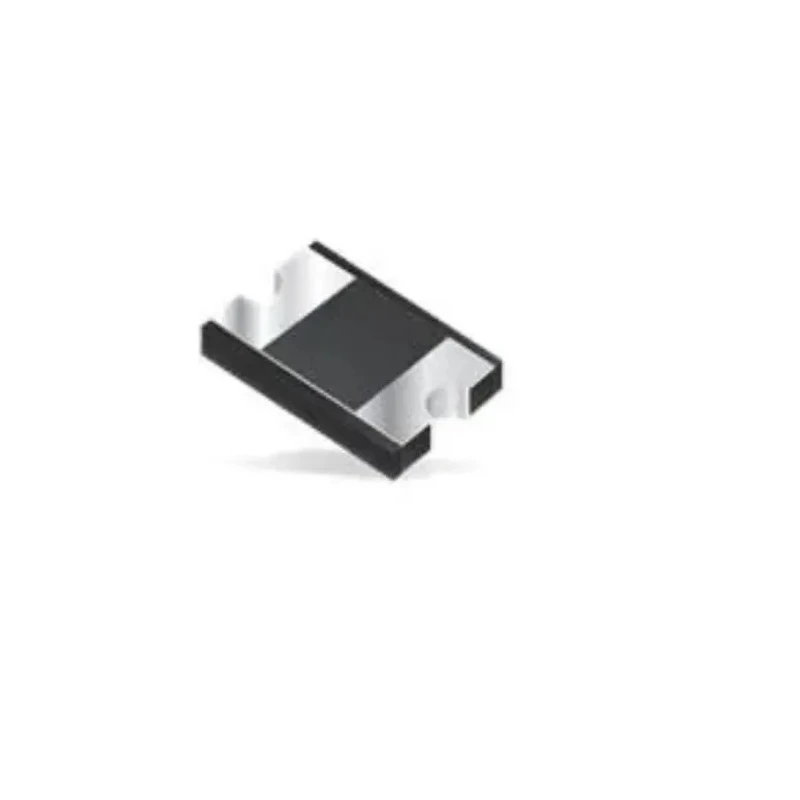

Bourns 1 kV 2 A Surface Mount Rectifier Diode DO-214AA CD214B-S2M

Bourns CD214B-S2M is a high-efficiency, low-profile rectifier diode specifically designed for surface mount applications. It features a DO-214AA package type suitable for automated PCB assembly processes. This diode supports a maximum continuous forward current of 2 amperes and can withstand peak reverse repetitive voltage up to 1000 volts, making it ideal for power supply and switching circuits.

The device offers a low forward voltage drop of approximately 1 volt, contributing to reduced power dissipation and improved energy efficiency. Suitable for operation in a wide temperature range from -65°C to 175°C, it fits diverse industrial and automotive environments. The low peak reverse current of 5 microamperes minimizes leakage currents, preserving circuit stability and performance.

The CD214B-S2M diode can handle peak non-repetitive forward surge currents reaching 50 amps, allowing it to survive transient faults and surge conditions typical in power supply applications. With compliance to environmental standards such as RoHS and halogen-free construction, this diode ensures responsible manufacturing practices.

Specifically qualified to meet the AEC-Q101 automotive standard, it is suited for automotive electronics demanding high reliability and durability. The compact physical dimensions (5.2 mm length, 3.6 mm width, and 1.2 mm height) allow designers to optimize PCB layouts for size-constrained applications.

DO-214AA surface mount package enhances ease of integration into automated assembly lines. Reliable 2 A forward current rating assures dependable performance in power circuits. High blocking voltage of 1000 V protects sensitive electronics from voltage spikes.

Wide operating temperature range supports harsh industrial environments. Halogen-free and RoHS compliant for environmental safety. 50 A surge current capability protects against transient overloads. Low leakage current enhances circuit efficiency and reliability.

Compact size facilitates space-saving electronic circuit designs. Automotive grade quality compliant with AEC-Q101.

Common applications include power rectification in industrial power supplies, automotive electronics, and electronic circuit protection. The diode’s stable performance and robust ratings make it ideal for designing efficient and reliable power management circuits.
