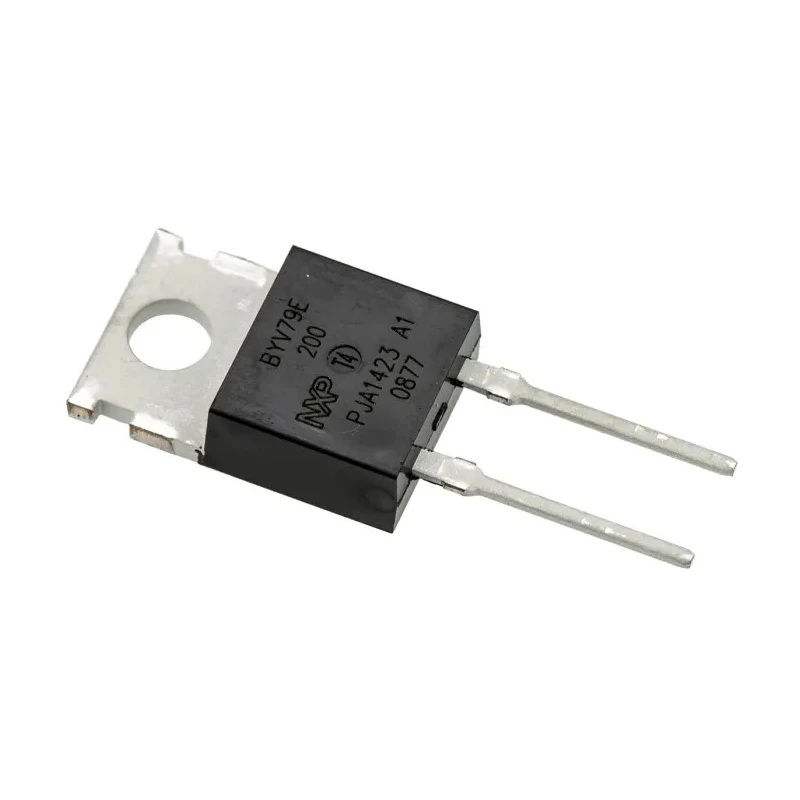

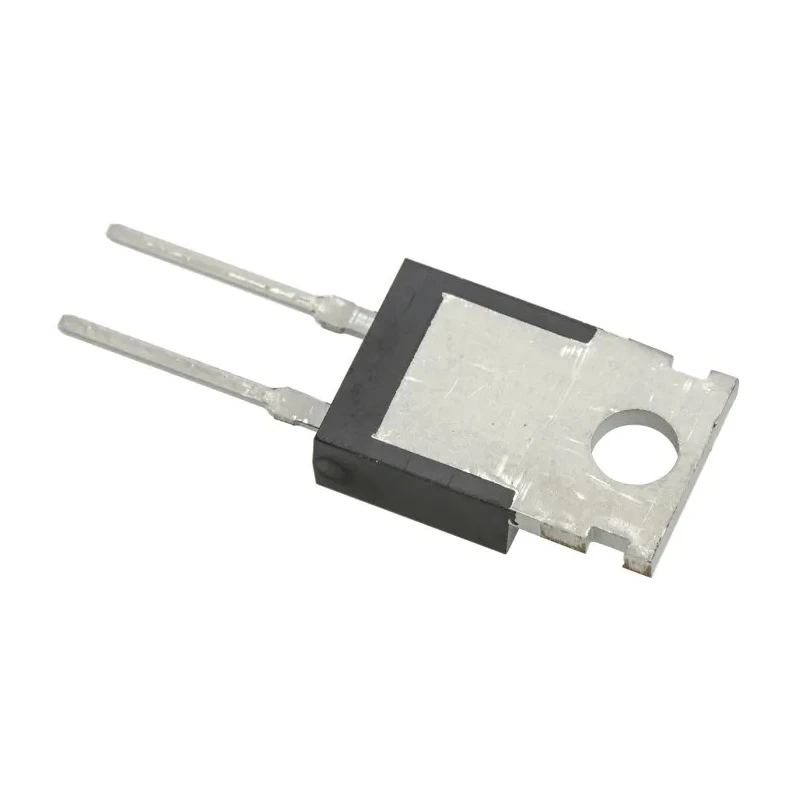

NXP General Purpose Rectifier Diode 200 V 14 A TO-220AC BYV79E-200,127

The NXP BYV79E-200,127 is a general purpose Rectifier Diode designed for power applications requiring robust and efficient performance. It is housed in a TO-220AC package, facilitating through-hole mounting for easy integration into electronic assemblies.

This diode supports a maximum continuous forward current of 14 A and a peak reverse repetitive voltage of 200 V, making it suitable for a wide range of industrial and consumer electronics applications. It handles transient surges up to 160 A, ensuring reliable operation even during power spikes.

With a forward voltage of 1.4 V and a peak reverse recovery time of 30 ns, the BYV79E-200,127 offers fast switching characteristics and reduced power loss. It operates efficiently over a broad temperature range from -40°C to 150°C, suitable for demanding environments.

The diode measures 10.3 mm in length, 4.7 mm in width, and 9.4 mm in height, providing a compact footprint for space-constrained designs. Its low peak reverse current of 50 μA helps minimize leakage current in circuits.

Ideal applications include power rectification in industrial power supplies, motor drives, and electronic power conversion systems. Its robust characteristics make it valuable in manufacturing, electronics repair, and laboratory test setups.

Designed for through-hole mounting with TO-220AC package. Maximum continuous forward current of 14 A with 200 V VRRM rating. Fast switching with 30 ns peak reverse recovery time. Wide operating temperature range ensures reliability.

Compact size for flexible circuit board layouts. Low leakage current reduces power loss. Explore more high-quality diodes and semiconductor components in the EnvMart electronics category for diverse industrial and commercial applications.
