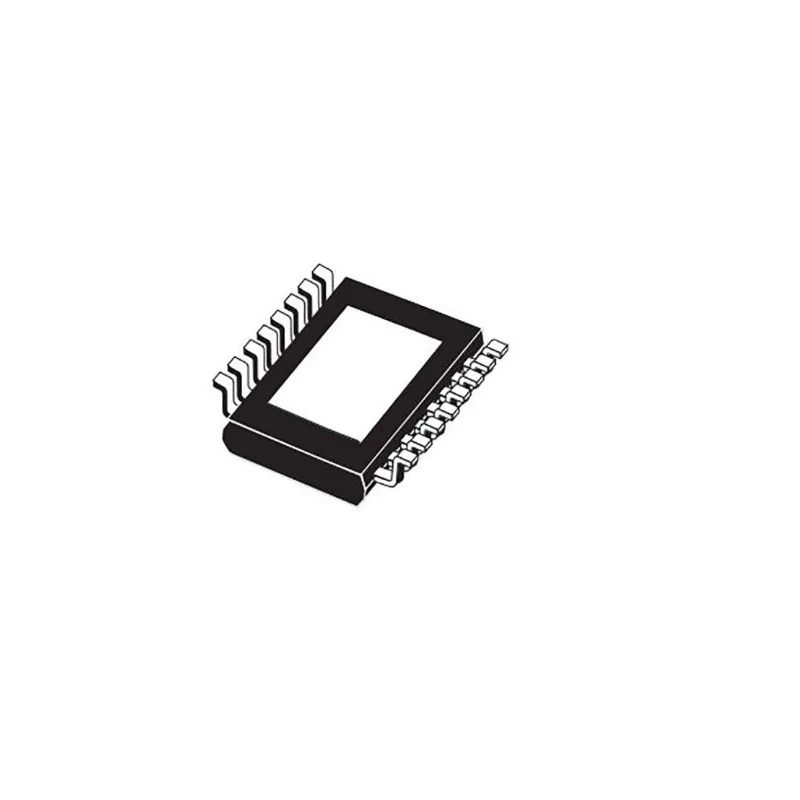

STMicroelectronics 16-Pin HTSSOP LED Driver IC , Output Current 100 mA, Input Voltage -0.4 to 7 V LED Driver LED8102SXTTR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 16-Pin HTSSOP LED Driver IC , Output Current 100 mA, Input Voltage -0.4 to 7 V LED Driver LED8102SXTTR

Name: STMicroelectronics 16-Pin HTSSOP LED Driver IC , Output Current 100 mA, Input Voltage -0.4 to 7 V LED Driver LED8102SXTTR
Brand: STMicroelectronics
SKU: 164561
Price: 1.46 USD
Availability: InStock



Category LED Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	500μm
Length	3mm
Model	LED8102SXTTR
Width	3mm
Mount Type	Through Hole
Series	LED8102SXTTR
Output Current	100mA
Maximum Operating Temperature	125°C
Package Type	HTSSOP
Minimum Operating Temperature	-40°C
Input Voltage	-0.4, 7V
Standards/Approvals	RoHS
Maximum Output Voltage	7V
Number of Pins	16

Key Features

Monolithic 8-channel LED driver with direct switch control.
Equipped with thermal shutdown at 170 °C with 15 °C hysteresis for restart.
LED brightness adjustable by global PWM signal on output enable pin.
Outputs support parallel connection or can be left unconnected.
High thermal efficiency TSSOP exposed pad package for heat dissipation.
Wide operating temperature range from -40 °C to 125 °C.
RoHS compliant for environmental safety.
Compact 3 mm x 3 mm x 500 µm 16-pin package.

Product Description

STMicroelectronics LED8102SXTTR is a high-performance LED driver IC designed for efficient LED lighting applications. This 16-pin HTSSOP packaged device supports an output current of 100 mA and an input voltage range from -0.4 V to 7 V, making it suitable for a variety of LED control requirements.

The IC features a monolithic 8-channel LED driver architecture with direct switch control and advanced thermal management that protects the device by shutting it down at thermal thresholds to prevent damage. It automatically powers off at 170 °C with a 15 °C hysteresis for safe restart.

Brightness of LEDs can be globally adjusted using a PWM signal applied to the output enable pin, allowing for dimming control across all active outputs. Each output channel can be connected in parallel or left unconnected depending on the application needs.

The LED8102SXTTR is housed in a high thermal efficiency TSSOP exposed pad package measuring 3 mm by 3 mm with a height of 500 µm, facilitating effective heat dissipation in compact electronic assemblies.

It operates reliably within an extended temperature range from -40 °C to 125 °C and complies with RoHS environmental standards. This device is ideal for industrial, commercial, and consumer LED lighting systems requiring precise current regulation and thermal protection.

Monolithic 8-channel LED driver with direct switch control. Thermal shutdown at 170 °C with restart hysteresis. Brightness adjustable via global PWM on output enable pin. Parallel output connection flexibility for various designs.

High thermal efficiency TSSOP package (3 mm x 3 mm x 0.5 mm). Wide operating temperature range (-40 °C to 125 °C). RoHS compliant for environmental safety. Output current rating of 100 mA with input voltage from -0.4 V to 7 V.

This LED driver IC suits LED lighting applications in electronics manufacturing, industrial automation, HVAC control systems, commercial displays, and laboratory instrumentation where precise LED control is essential.
