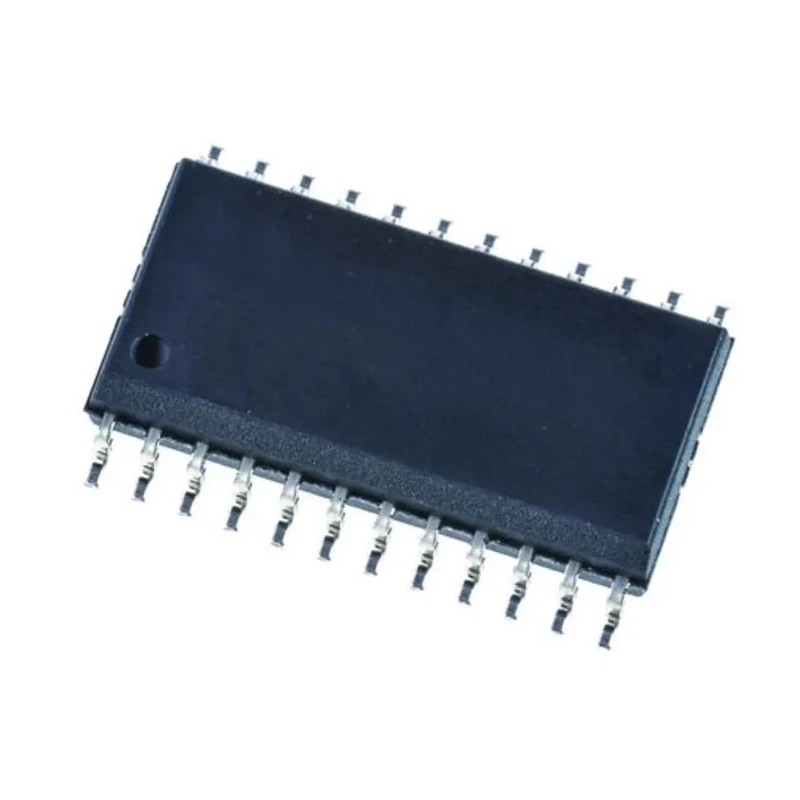

Texas Instruments Bus Transceiver 8-Bit Non-Inverting LVTTL 24-Pin SOIC SN74LVC4245ADW

Texas Instruments SN74LVC4245ADW Bus Transceiver is an advanced 8-bit bus transceiver featuring non-inverting logic for seamless signal transmission in electronic circuits. It is housed in a compact 24-pin SOIC surface mount package, making it suitable for high-density PCB designs.

This device operates efficiently over a supply voltage range of 1.65V to 3.6V with a maximum rating of 5.5V, enabling low power consumption while maintaining compatibility with 5V tolerant inputs. The logic family is LVC, providing high-speed performance suitable for modern communication and control systems.

The transceiver supports 8 bidirectional channels with 3-state output, ideal for bus interfacing applications where multiple devices share communication lines. Its input level accepts LVTTL and TTL signals, while output levels conform to LVTTL standards, ensuring compatibility across various digital logic levels.

With a maximum propagation delay of 6.7 nanoseconds, the SN74LVC4245ADW ensures fast switching speeds critical for timing-sensitive applications. The device withstands extended operating temperatures from -40°C to 85°C, making it reliable in industrial and commercial environments.

Further enhancing durability, it meets stringent latch-up performance of over 250 mA per JESD 17 and ESD protection requirements set by JESD 22 standards. The maximum output currents of ±24 mA facilitate driving of moderate loads without additional buffering.

The device’s compact physical dimensions (2.35 mm height and 15.4 mm length) contribute to efficient space utilization on PCBs. This transceiver is ideal for electronic component assemblies used in communication equipment, industrial control systems, and other electronic subsystems requiring reliable data bus interfacing.

Supports 8 channels for bidirectional data transmission. Operates within a supply voltage range of 1.65 to 3.6 volts. Input compatibility includes LVTTL and TTL levels, with LVCMOS outputs. Features 3-state output type for bus-oriented applications.

Designed for surface mount with 24-pin SOIC packaging. Provides maximum propagation delay time of 6.7 nanoseconds. Operating temperature ranges from -40°C to 85°C suitable for industrial environments. Includes ESD protection exceeding JESD 22 and latch-up performance surpassing 250 mA.

Maximum high-level output current of -24 mA and low-level output current of 24 mA for robust signal driving. Compact dimensions: height 2.35 mm and length 15.4 mm.

This product is new and engineered by Texas Instruments, conforming to industry standards for semiconductor logic ICs. It is well suited for usage in industrial machinery, control instrumentation, communication hardware, and any equipment that requires high reliability digital bus transceivers.
