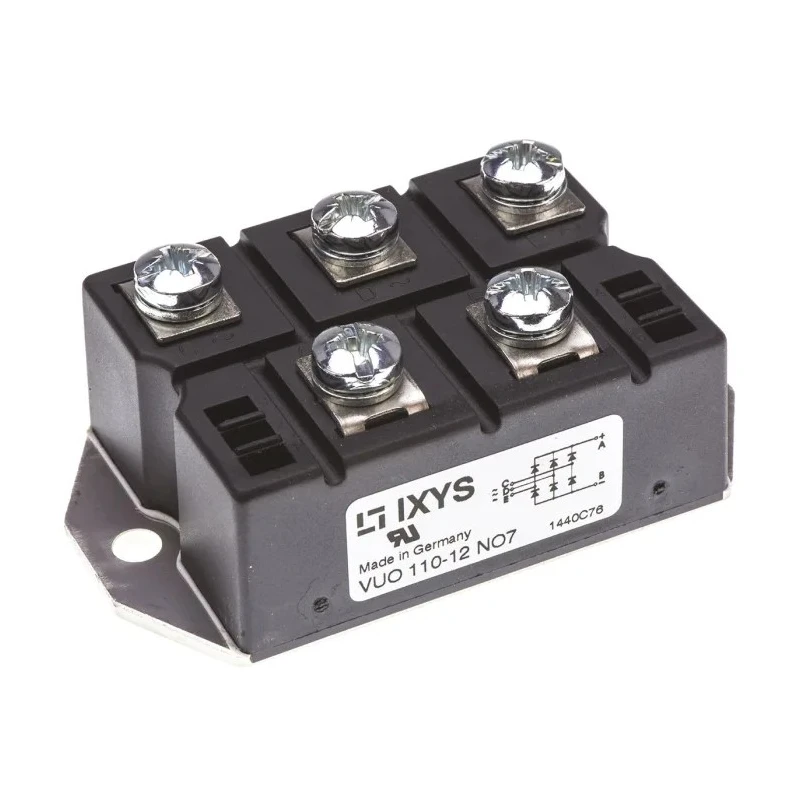

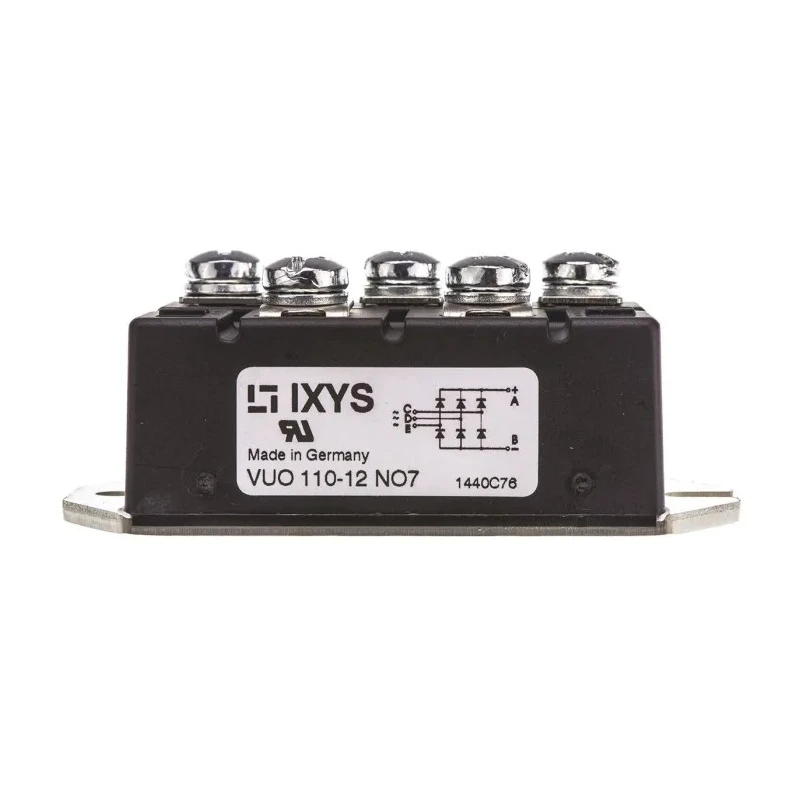

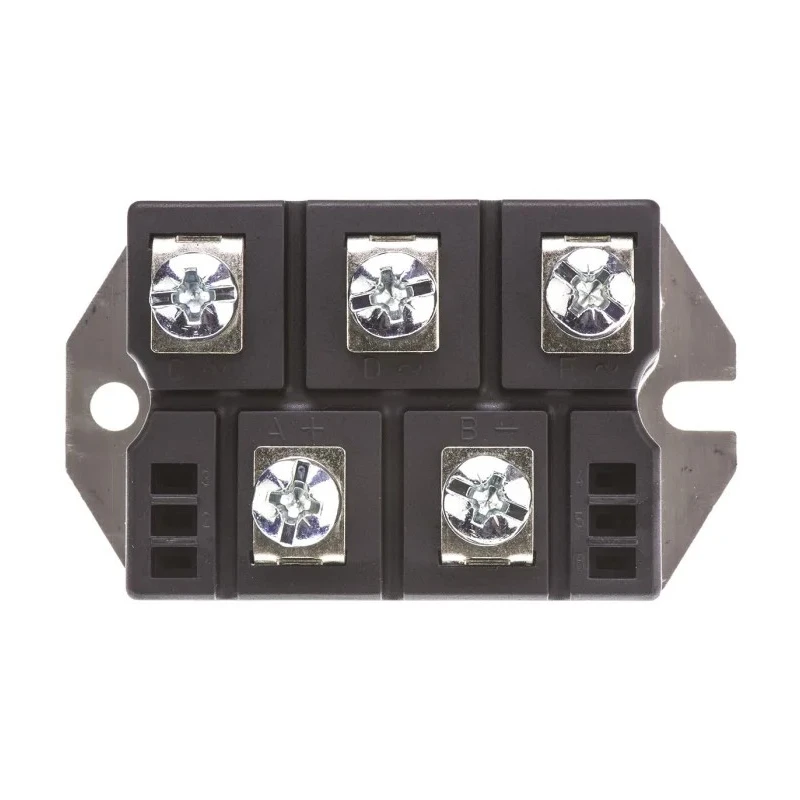

IXYS 3-Phase Bridge Rectifier Module Panel Mount 1200 V 1.3 kA Forward Current 127 A VUO110-12NO7

IXYS VUO110-12NO7 Bridge Rectifier Module is a robust 3-phase power semiconductor device designed for efficient AC to DC conversion in industrial and electronic systems. With a peak reverse repetitive voltage (Vrrm) of 1200 V and the capability to handle a peak non-repetitive forward surge current (Ifsm) of 1.3 kA, this module ensures reliable performance under high electrical stress.

The device features a panel mount configuration with five pins, facilitating secure electrical connections and ease of installation. Constructed using Package Type PWS E 1 with direct copper bonding (DCB) ceramic technology, it delivers improved temperature and power cycling capabilities along with exceptional thermal conduction, which supports operation up to 150°C.

With a continuous forward current rating of 127 A and a very low forward voltage drop of 1.9 V, the module maximizes efficiency while maintaining low power dissipation. Its minimal peak reverse current of 300 μA further reduces leakage, contributing to energy conservation and extended component life.

Engineered to operate effectively over a wide temperature range from -40°C to 150°C, this module is suited for challenging environments found in industrial, manufacturing, and power control applications. The VUO110 series ensures UL registration (E 72873) compliance, underscoring the product's quality and safety standards.

The compact physical dimensions of 94 mm length, 54 mm width, and 30 mm height allow for flexibility in design integration. This bridge rectifier module is an ideal choice for use in power supplies, converters, and industrial electronic applications requiring durable and efficient rectification solutions.

Panel mount 3-phase bridge rectifier module with Screw Terminals. Direct Copper Bonding (DCB) ceramic package provides enhanced thermal and power cycling performance. Low forward voltage drop and leakage current for higher efficiency.

Supports high peak surge current providing robust transient handling capabilities. Wide operating temperature range from -40°C to 150°C for versatile usage. Compliant with safety standards and UL registered.
