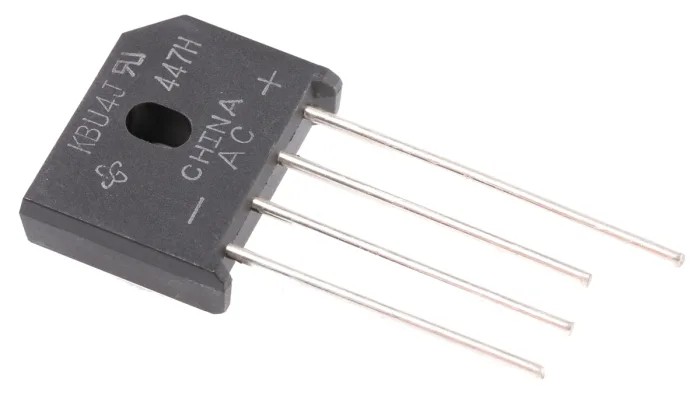

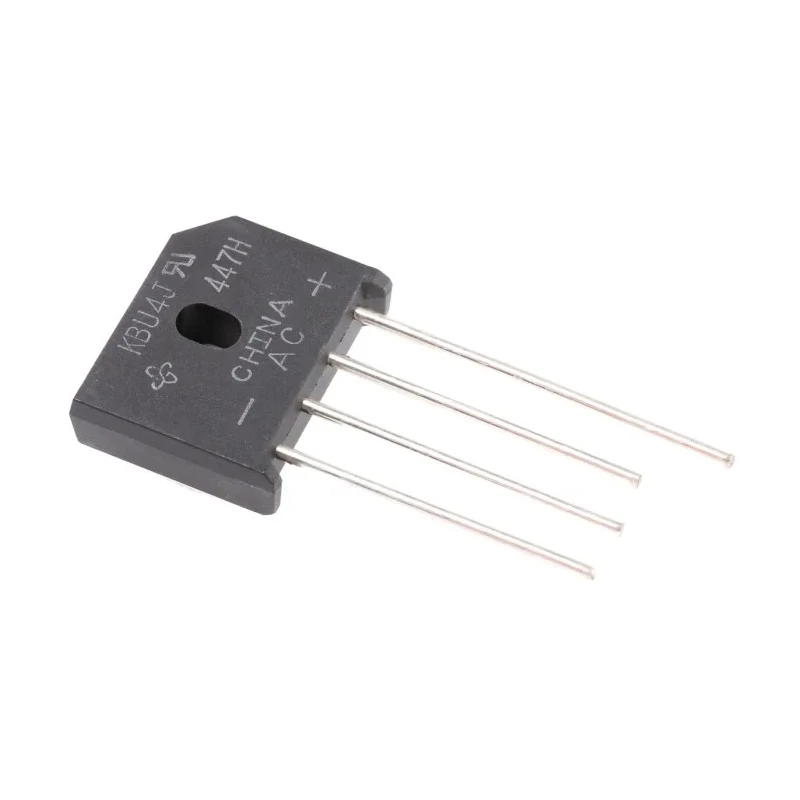

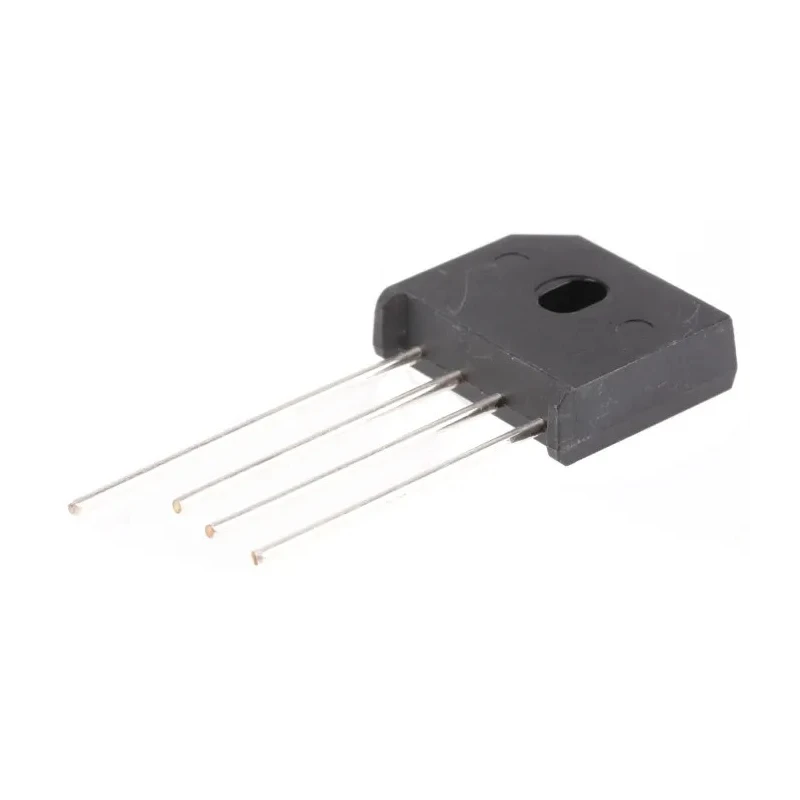

Vishay Bridge Rectifier 600 V 200 A 4-Pin Through Hole KBU4J-E4/51

Name: Vishay Bridge Rectifier 600 V 200 A 4-Pin Through Hole KBU4J-E4/51
Brand: Vishay
SKU: 127173
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	19.3mm
Length	23.7mm
Model	KBU4J-E4/51
Width	7.1mm
Mount Type	Through Hole
Series	KBU4
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	KBU
Minimum Operating Temperature	-50°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	600V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Forward Current If	4A
Peak Forward Voltage Vf	1V
Vishay Bridge Rectifier, 800 V 200 A, 4-Pin SingleBrand	Vishay

Key Features

Operates at a peak reverse repetitive voltage of 600 volts.
Supports a forward current of 4 amperes and surge forward current of 200 amperes.
Features a robust 4-pin KBU package for reliable PCB mounting.
Designed to withstand a maximum operating temperature of 150°C.
Compact dimensions of 23.7 mm length, 7.1 mm width, and 19.3 mm height.
Ensures low peak forward voltage of 1 volt for efficient operation.
Capable of minimum operating temperature down to -50°C.
Peak reverse current rated at 5 microamperes for minimal leakage.

Product Description

Vishay KBU4J-E4/51 Bridge Rectifier is a high-performance discrete semiconductor device used to convert alternating current (AC) into direct current (DC) via full-wave rectification. This single-phase, 4-pin bridge rectifier is housed in a KBU package designed for through-hole PCB mounting, ensuring secure installation and excellent thermal management.

It operates at a peak reverse repetitive voltage (VRRM) of 600 volts, capable of handling forward currents up to 4 amperes and surge currents of 200 amperes. The device has a peak forward voltage of 1 volt, which helps in minimizing power losses during operation. Its operational temperature range extends from -50°C to 150°C, making it suitable for demanding industrial environments.

The compact form factor, measuring 23.7 mm in length, 7.1 mm in width, and 19.3 mm in height, includes a package centre hole for mounting, enhancing mechanical stability. The peak reverse current of only 5 microamperes ensures low leakage current, improving efficiency.

This Vishay bridge rectifier is commonly used in power supply circuits, industrial machines, HVAC systems, and various electronic manufacturing applications requiring reliable AC to DC conversion.

Peak reverse voltage: 600 V. Forward current: 4 A. Surge forward current: 200 A. Operating temperature range: -50°C to 150°C. KBU through-hole package with four pins. Compact dimensions suitable for PCB mounting. Low peak forward voltage of 1 V.

Minimal peak reverse current leakage. High surge current capability. Applications include industrial power rectification and electronics manufacturing. Explore the broad range of Vishay semiconductor components on EnvMart for your industrial and electronic design requirements.
