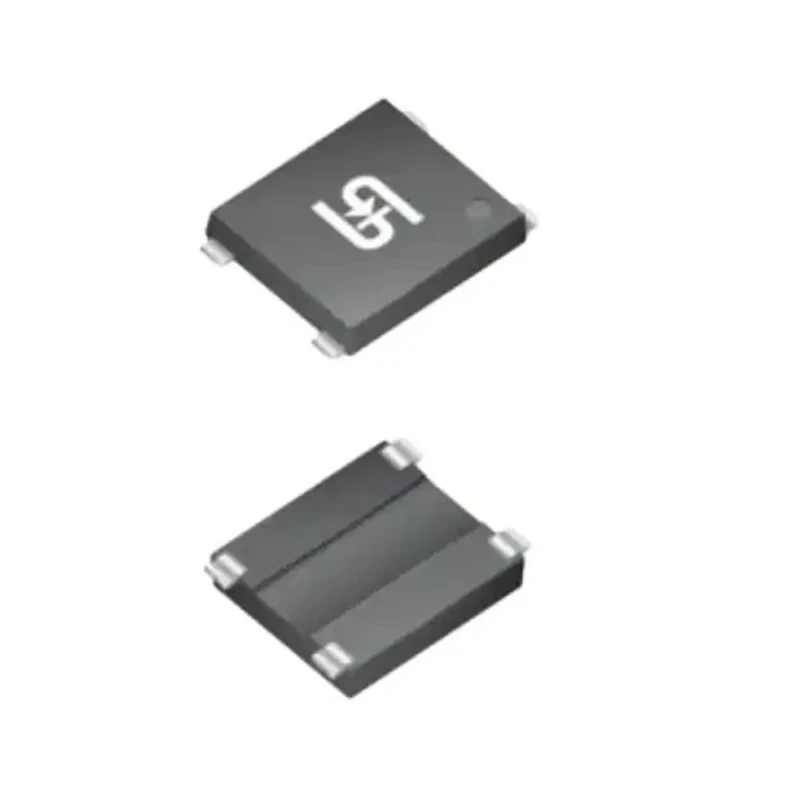

Taiwan Semiconductor Bridge Rectifier 4-Pin Quad Surface Mount 1000 V 90 A YBS2207G

Taiwan Semiconductor YBS2207G Bridge Rectifier is a high-performance, surface mountable semiconductor device configured in a 4-pin quad design. It features a peak reverse repetitive voltage (Vrrm) of 1000 V and can handle a peak non-repetitive forward surge current (Ifsm) of 90 A, making it suitable for demanding electrical environments.

This bridge rectifier supports a forward current (If) of 2.2 A and a low peak forward voltage (Vf) of 0.95 V, which contributes to enhanced energy efficiency in circuits where power loss needs to be minimized. The device operates reliably within a temperature range of -55°C to 150°C, accommodating harsh industrial and commercial applications.

The package type is YBS surface mount, enabling compatibility with automated placement systems and compact printed circuit board layouts. It is constructed using a glass passivated chip junction and molded plastic technique, offering moisture sensitivity level 1 as per J-STD-020, and ensuring long-term reliability.

This rectifier complies with RoHS regulations and IEC 61249-2-21 halogen-free standards, supporting eco-friendly manufacturing requirements. Typical applications include switching mode power supplies (SMPS), adapters, lighting systems, and other power conversion electronics where efficient rectification is critical.

Physical dimensions are compact with a length of 6.7 mm and height of 8.6 mm, allowing easy integration into various electronic assemblies. Designed for surface mount applications with YBS package type. Quad configuration suitable for efficient rectification.

Maximum operating temperature up to 150°C for reliability. Low forward voltage drop of 0.95 V for improved efficiency. High peak surge current rating of 90 A for handling transients. Operating temperature range from -55°C to 150°C for wide environment usage.

Glass passivated chip junction ensures stable performance. RoHS compliant and halogen-free meeting IEC 61249-2-21 standards. Ideal for switching mode power supplies, adapters, and lighting applications. Compact dimensions with length 6.7 mm and height 8.6 mm.
