| Country of Origin | China |
|---|---|
| Diameter | 2.7mm |
| Brand | Taiwan Semiconductor |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N4007G |
| Width | 54.6mm |
| Mount Type | Through Hole |
| Series | 1N4007 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1V |
| Vishay Switching Diode, 2-Pin DO-204AL 1N4007GPEHE3/54Brand | Vishay |

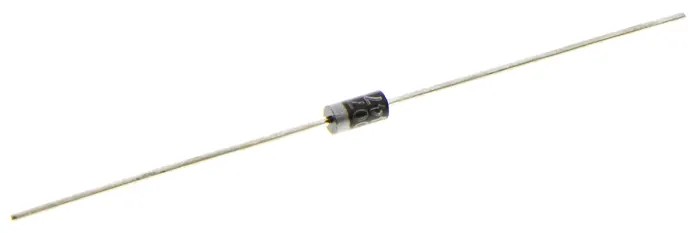

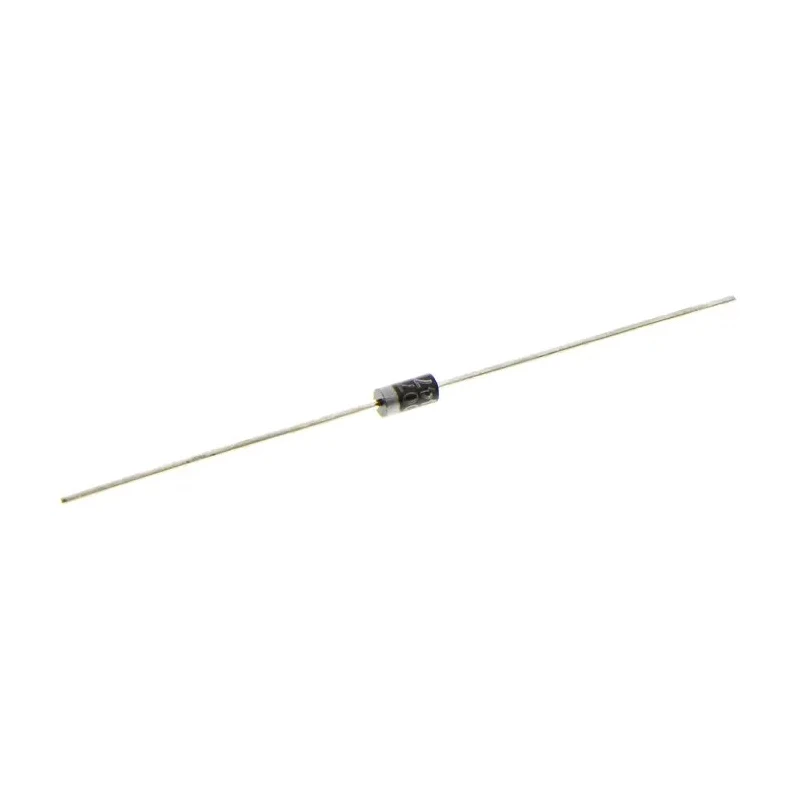

Taiwan Semiconductor 1N4007G is a high-quality general purpose rectifier diode designed for through-hole mounting in electronic circuits. This diode is packaged in a 2-pin DO-41 glass enclosure, providing excellent protection and stable operation.
Capable of handling a maximum continuous forward current of 1 ampere and withstanding peak reverse repetitive voltages up to 1 kilovolt, this diode is ideal for various power electronics, signal rectification, and protection circuits in industrial, commercial, and laboratory applications.
It offers a robust peak non-repetitive forward surge current rating of 30 amperes and operates reliably in extreme temperature ranges from -65°C to 150°C, making it suitable for harsh environments and long-term deployment.
The diode features a low maximum forward voltage drop of 1 volt and a minimal peak reverse current of 100 microamperes, ensuring energy efficient performance and reduced power losses in circuits.
Measuring 5.2 mm in length and 2.7 mm in diameter, the compact DO-41 package facilitates easy installation on printed circuit boards (PCBs) with standard through-hole technology. Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 1 kV.
Peak non-repetitive forward surge current: 30 A. Operating temperature range: -65°C to 150°C. Maximum forward voltage: 1 V. Peak reverse current: 100 μA. Package type: DO-41 glass, 2-pin. Length: 5.2 mm, Diameter: 2.7 mm.
Country of origin: China.
This diode is suitable for use in power supplies, rectifier bridges, voltage regulation, and general purpose switching applications in electronics, industrial machinery, and automation systems.
