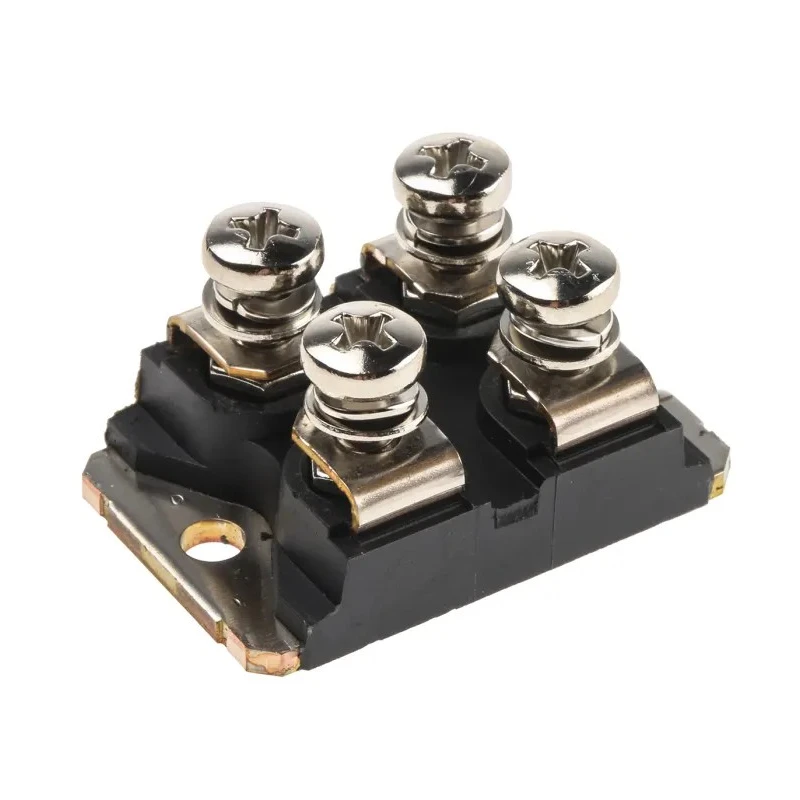

STMicroelectronics Switching Rectifier Diode 200 V, 50 A, 4-Pin ISOTOP Panel Mount STTH10002TV2
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4mm |
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STTH10002TV2 |
| Width | 25.5mm |
| Mount Type | Panel |
| Series | STTH10002 |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 50A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 750A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 65ns |
Key Features
- Rated for 200 V peak reverse repetitive voltage and 50 A continuous forward current.
- Switching rectifier type in an ISOTOP package with isolated configuration.
- Panel mount for secure installation, suitable for demanding industrial applications.
- Rapid peak reverse recovery time of 65 ns enhances circuit switching speed.
- Operates over a wide temperature range from -55°C to 150°C.
- 4-pin design, supporting efficient power distribution and assembly.
- Maximum forward voltage of 1.15 V and peak reverse current of 50 μA.
- Compliant with RoHS standards for environmental and manufacturing safety.
Product Description
The STMicroelectronics STTH10002TV2 is a high-performance switching rectifier diode engineered for applications requiring both high voltage and high current regulation. This device is rated for a peak reverse repetitive voltage of 200 V and continuous forward current of 50 A, making it ideal for industrial power supply and conversion circuits.
Its ISOTOP package offers an isolated diode configuration with a robust panel mount design, ensuring reliability and easy integration into demanding environments. The 4-pin form factor is especially suited for power distribution applications, while the panel mount provides secure attachment within industrial enclosures.
The diode is designed for rapid switching operations, featuring a peak reverse recovery time of just 65 ns, which is critical for high-speed rectification and power electronics. With a maximum forward voltage of 1.15 V and peak reverse current limited to 50 μA, it provides efficient performance with minimal losses.
The STTH10002TV2 supports operation across a wide temperature range (-55°C to 150°C), ensuring resilience in both extreme cold and heat. It carries RoHS compliance, meeting modern requirements for environmental safety.
Physical dimensions are well-documented: the diode measures 38.2 mm in length, 25.5 mm in width, 9.1 mm in height, and 4 mm in diameter. Its peak non-repetitive forward surge current rating is 750 A, providing protective capacity against transient loads during power surges.
Industrial use cases span power rectification and conversion in manufacturing, industrial automation, HVAC systems, and high-current laboratory setups. Its robust electrical and thermal characteristics are highly valued among engineers designing power circuits and high-frequency switching systems.
Explore more Schottky Diodes and rectification solutions from STMicroelectronics in the EnvMart semiconductor category to find additional models for power system integration and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STMicroelectronics STTH10002TV2 is rated for a peak reverse repetitive voltage of 200 V.
This diode supports a maximum continuous forward current of 50 A.
It has a rapid peak reverse recovery time of 65 ns, which enhances circuit switching speed.
The diode operates over a wide temperature range from -55°C to 150°C.
The diode measures 38.2 mm in length, 25.5 mm in width, and 9.1 mm in height, with a diameter of 4 mm.
It features a panel mount design for secure installation in industrial applications.
The maximum forward voltage of the STTH10002TV2 is 1.15 V.
The diode has a peak non-repetitive forward surge current rating of 750 A.
Yes, the STTH10002TV2 is compliant with RoHS standards for environmental safety.
It features an isolated diode configuration within its ISOTOP package.
This model has a 4-pin design, which supports efficient power distribution and assembly.
It is suitable for industrial power supply and conversion circuits, among other high-current applications.
