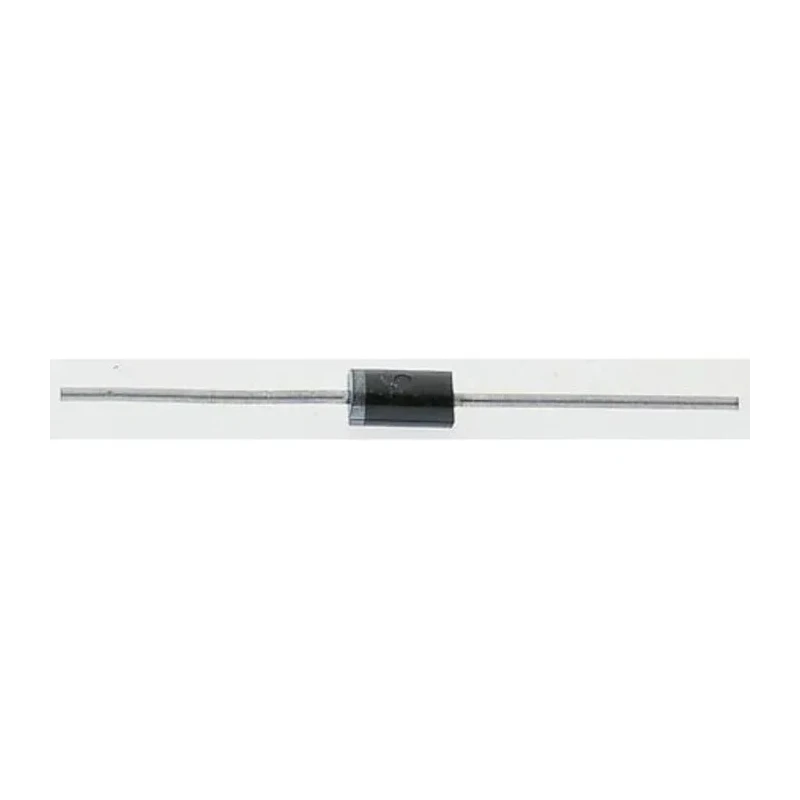

Taiwan Semiconductor 1 kV 3 A Diode Switching 2-Pin DO-201AD FR307G

Name: Taiwan Semiconductor 1 kV 3 A Diode Switching 2-Pin DO-201AD FR307G
Brand: Taiwan Semiconductor
SKU: 212326
Price: 0.19 USD
Availability: InStock



Category Diodes Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Diameter	5.6mm
Brand	Taiwan Semiconductor
Height	5.6mm
Length	9.5mm
Model	FR307G
Width	5.6mm
Mount Type	Through Hole
Series	FR307G
Maximum Operating Temperature	150°C
Package Type	DO-201AD
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	125A
Maximum Forward Voltage Vf	1.3V
Peak Reverse Recovery Time trr	500ns

Key Features

High reliability switching diode suitable for through-hole mounting.
Features a DO-201AD package type with 2 pins for easy PCB integration.
Maximum forward voltage of 1.3 V ensures efficient power operation.
Supports peak reverse repetitive voltage of 1 kV and peak non-repetitive forward surge current up to 125 A.
Operational temperature range from -65°C to 150°C for varied industrial environments.
Fast recovery time of 500 ns to support high-speed switching applications.
Compact dimensions with length of 9.5 mm and diameter of 5.6 mm.
Single diode configuration designed for switching purposes.

Product Description

Taiwan Semiconductor FR307G Diode Switching 2-Pin DO-201AD is a high-performance diode designed for discrete semiconductor applications. It features a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 1 kV, making it ideal for switching circuits in industrial and automotive environments.

This diode comes in a durable DO-201AD through-hole package type with two pins, facilitating easy integration into various PCBs. Operating over a wide temperature range from -65°C to 150°C, it is suited for harsh industrial conditions and automotive applications adhering to the AEC-Q101 standard.

The diode has a maximum forward voltage of 1.3 V and a low peak reverse current of only 5 μA, providing efficient conduction and minimal leakage. A rapid peak reverse recovery time of 500 ns enables high-speed switching, essential in power electronics and signal conditioning.

Physically, the diode measures 9.5 mm in length with a 5.6 mm diameter, maintaining a compact form factor for space-sensitive designs. The single diode configuration ensures straightforward application in rectification and switching roles.

High reliability switching diode suitable for through-hole mounting. Features a DO-201AD package type with 2 pins for easy PCB integration. Maximum forward voltage of 1.3 V for efficient power operation. Supports peak reverse repetitive voltage of 1 kV and peak surge current up to 125 A.

Wide operating temperature range from -65°C to 150°C. Fast recovery time of 500 ns for high-speed switching applications. Compact dimensions: 9.5 mm length and 5.6 mm diameter. Single diode configuration for switching purposes.

Complies with Automotive Standard AEC-Q101 for automotive-grade reliability. Low peak reverse current of 5 μA.

This diode is extensively used in industrial electronics, power management systems, automotive electronic controls, and other semiconductor applications requiring robust switching performance. Its compliance with automotive standards and robust electrical characteristics ensure reliability in demanding environments.
