| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.3mm |
| Length | 4.6mm |
| Model | S1M M2G |
| Width | 2.83mm |
| Mount Type | Surface |
| Series | S1M |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 1kV |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 1.5μs |

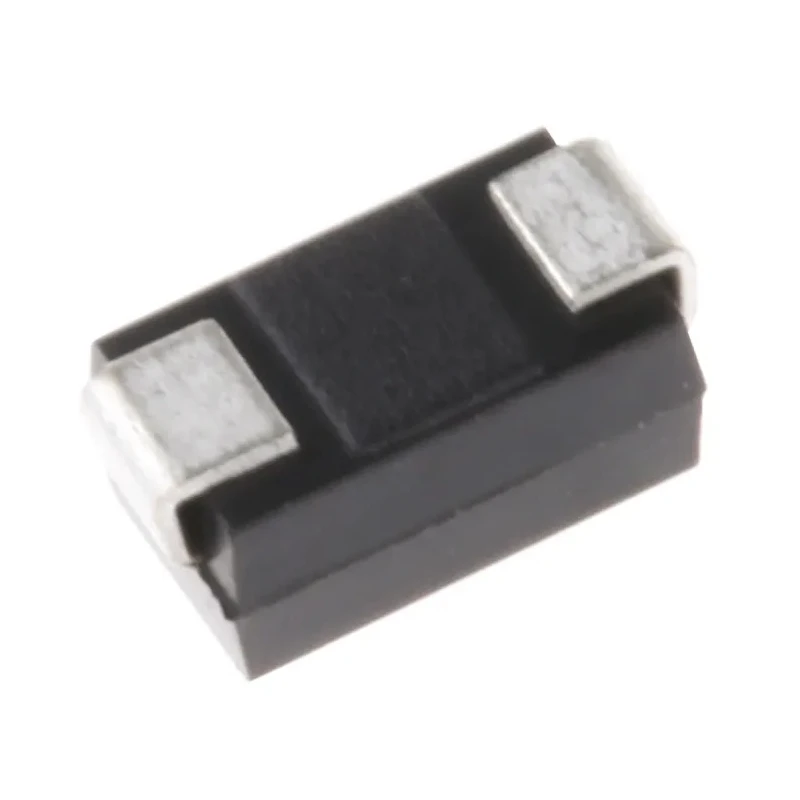

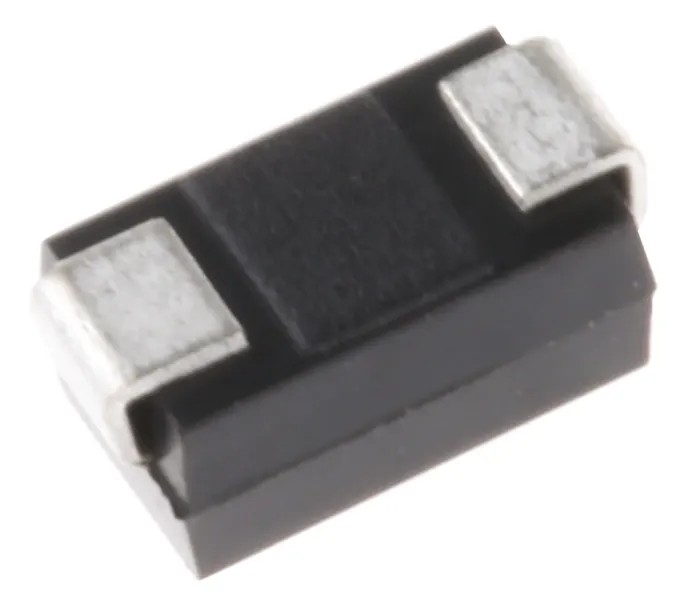

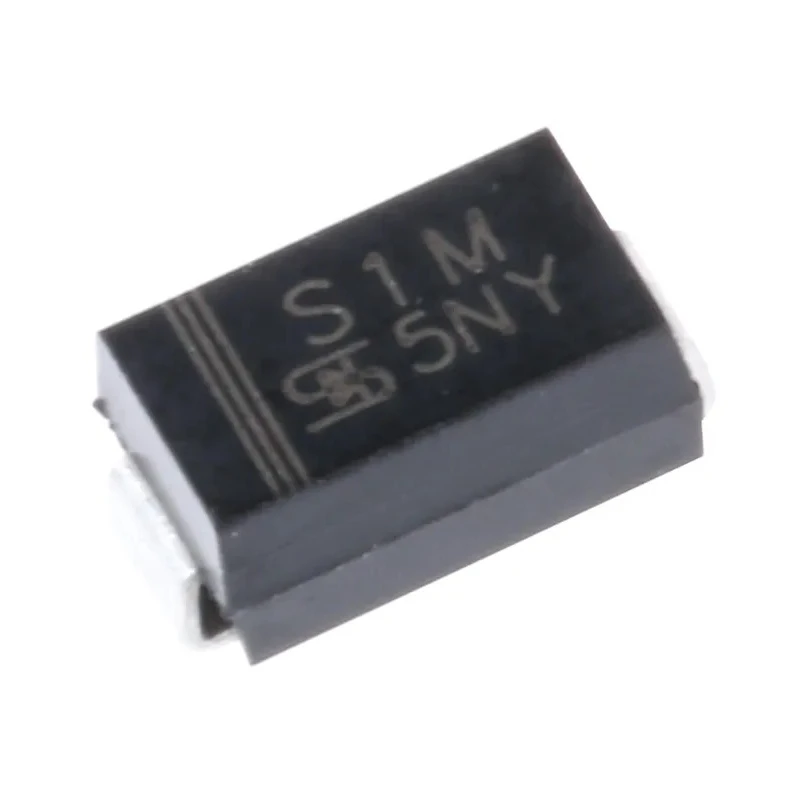

Taiwan Semiconductor S1M M2G Switching Diode DO-214AC is a high-performance surface mount diode designed for electronic applications requiring reliable and efficient switching capabilities. It is engineered for discrete semiconductor use with a single diode configuration and a 2-pin surface mount design suitable for compact PCB layouts.
The diode features a maximum continuous forward current of 1 A and can withstand a peak reverse repetitive voltage of 1 kV, making it capable of handling demanding electrical conditions. Its peak reverse current is minimal at 1 μA, ensuring low leakage and high efficiency in power-sensitive applications.
Operating temperature range from -55°C to 150°C allows the diode to function reliably in industrial, automotive, and commercial electronic circuits exposed to harsh environments. The fast peak reverse recovery time of 1.5 μs contributes to efficient switching performance in power conversion and signal processing.
Designed to meet the stringent AEC-Q101 automotive quality standard, this diode is suited for automotive-grade electronics as well as other sectors such as industrial automation, manufacturing, and general electronics circuitry.
The DO-214AC package size is compact with length of 4.6 mm, width of 2.83 mm, and height of 2.3 mm, facilitating high-density PCB assemblies without compromising performance. This diode is ideal for use in power supplies, DC-DC converters, and switching regulators where efficiency and reliability are critical.
Single diode, 2-pin surface mount configuration. Maximum forward current of 1 ampere. High peak reverse voltage of 1 kV. Wide operating temperature from -55°C to 150°C. Low leakage current with 1 μA peak reverse current.
Fast switching with 1.5 μs reverse recovery time. Compact DO-214AC package. Meets AEC-Q101 automotive qualification.
This Taiwan Semiconductor diode is suited for use in various industrial, automotive, and electronic component applications. Explore more quality semiconductor components and switching diodes at EnvMart for your electronic manufacturing and design needs.
