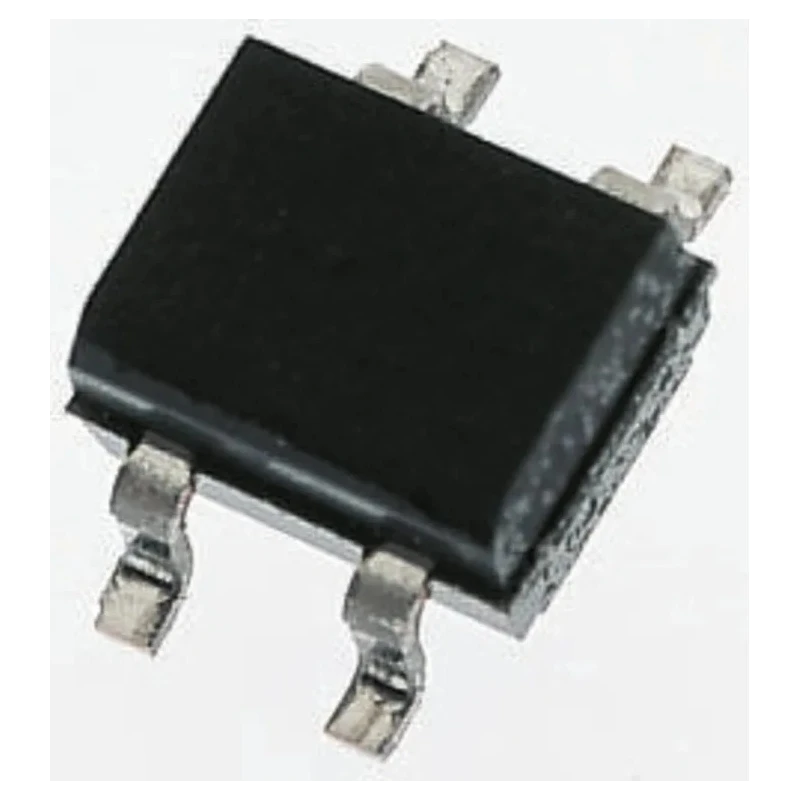

Vishay Bridge Rectifier Surface Mount 800 V Peak Reverse Voltage 30 A Forward Current 4-Pin DFS Package DF08SA-E3/77

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier Surface Mount 800 V Peak Reverse Voltage 30 A Forward Current 4-Pin DFS Package DF08SA-E3/77

Name: Vishay Bridge Rectifier Surface Mount 800 V Peak Reverse Voltage 30 A Forward Current 4-Pin DFS Package DF08SA-E3/77
Brand: Vishay
SKU: 127131
Price: 0.52 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	3.3mm
Length	8.51mm
Model	DF08SA-E3/77
Width	6.5mm
Mount Type	Surface
Series	DF
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	DFS
Minimum Operating Temperature	-55°C
Number of Phases	1
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Forward Current If	1A
Peak Forward Voltage Vf	1.1V

Key Features

Surface mount DFS package optimizes board space and thermal performance.
Single-phase configuration with 4 pins ensures easy PCB integration.
Maximum operating temperature of 150°C allows for high thermal tolerance.
Low forward voltage drop of 1.1 V reduces power loss in circuits.
Wide operating temperature range from -55°C to 150°C supports various environmental conditions.
Peak reverse current as low as 5 μA improves energy efficiency and reduces leakage.
High surge current capability up to 30 A ensures reliability under transient loads.
Compact dimensions of 8.51 mm length, 6.5 mm width, and 3.3 mm height.

Product Description

Vishay DF08SA-E3/77 bridge rectifier is a reliable semiconductor device designed for converting alternating current (AC) input into direct current (DC) output using a full-wave rectification process. With a peak reverse repetitive voltage rating of 800 V and a peak surge current of 30 A, it provides excellent performance in demanding electronic applications.

Featuring a surface mount DFS package, this compact 4-pin component supports automated placement on printed circuit boards (PCBs) and is engineered for robust thermal characteristics, tolerating maximum temperatures up to 150°C. Its low forward voltage of 1.1 V ensures minimal conduction losses, enhancing circuit efficiency.

Operating over a broad temperature range from -55°C to 150°C, the rectifier suits industrial and commercial electronics requiring high reliability and thermal stability. The device exhibits extremely low peak reverse current of 5 μA, which reduces leakage and power dissipation.

The Vishay DF series is well-known for its high surge current capacity, making the DF08SA-E3/77 ideal for applications involving sudden load changes. Its precise footprint with length 8.51 mm, width 6.5 mm, and height 3.3 mm supports compact design requirements.

This bridge rectifier is widely used in power supplies, industrial control systems, consumer electronics, and other applications requiring efficient and stable DC voltage conversion from AC sources.

Surface mount DFS package optimizes board layout and heat dissipation. Single-phase 4-pin configuration for straightforward PCB integration. 800 V peak repetitive voltage withstands high voltage operations. 30 A peak surge current capability guarantees durability under transient currents.

Low forward voltage drop of 1.1 V reduces energy losses. Wide temperature range from -55°C to 150°C for diverse environments. Compact size minimizes footprint in electronic assemblies. Low leakage current at 5 μA enhances overall efficiency.

Explore Vishay semiconductor products for other high-performance Bridge Rectifiers and electronic components suitable for industrial, commercial, and technological innovations on EnvMart.
