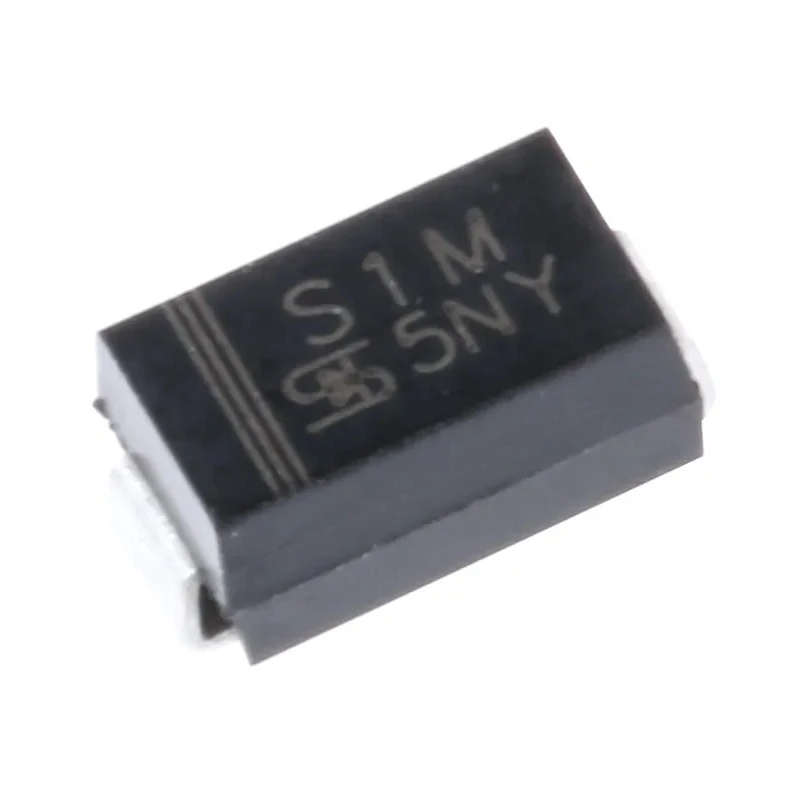

Taiwan Semiconductor 1 kV 1 A Diode Switching Rectifier 2-Pin DO-214AC S1M M2G

Taiwan Semiconductor S1M M2G is a switching diode configured as a single diode in a 2-pin DO-214AC surface mount package. It operates with a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 1 kilovolt. This device delivers efficient rectification with a maximum forward voltage drop of 1.1 volts, minimizing power loss in industrial and electronic circuits.

Its peak reverse recovery time of 1.5 microseconds supports fast switching applications commonly found in power supplies, power management circuits, and rectifier assemblies. The diode can handle a peak non-repetitive forward surge current of up to 30 amperes, ensuring reliable transient handling capabilities.

The diode's operating temperature range from -55°C to 150°C allows it to perform reliably across extreme environmental conditions, making it suitable for automotive, industrial, and commercial electronics. The compact dimensions of 4.6 mm length, 2.83 mm width, and 2.3 mm height facilitate high-density PCB layouts.

Complying with the automotive quality standard AEC-Q101, this semiconductor diode meets stringent reliability and quality requirements for automotive electronic systems and other demanding applications.

The device is particularly used in power and signal rectification circuits requiring a reliable, fast switching diode housed in a surface-mount DO-214AC package. Its configurable single diode architecture fits a variety of semiconductor and discrete component applications.

This diode supports a maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage rating is 1 kilovolt. Maximum forward voltage drop is 1.1 volts. Peak reverse recovery time is 1.5 microseconds supporting fast switching.

Peak non-repetitive forward surge current is rated at 30 amperes. Operating temperature range spans -55°C to 150°C. Physical dimensions: 4.6 mm length, 2.83 mm width, 2.3 mm height. Automotive standard AEC-Q101 certified.

Surface mount 2-pin DO-214AC package for compact PCB design. Single diode, switching rectifier suitable for power management. This product is ideal for use in industrial, automotive, electronic manufacturing, and power supply system applications requiring a robust, fast-switching semiconductor diode.
