Taiwan Semiconductor Bridge Rectifier, Surface Mount YBS Package, Quad Configuration, 800 V 90 A YBS2206G

Free Delivery in India | Lowest Global Shipping Charges

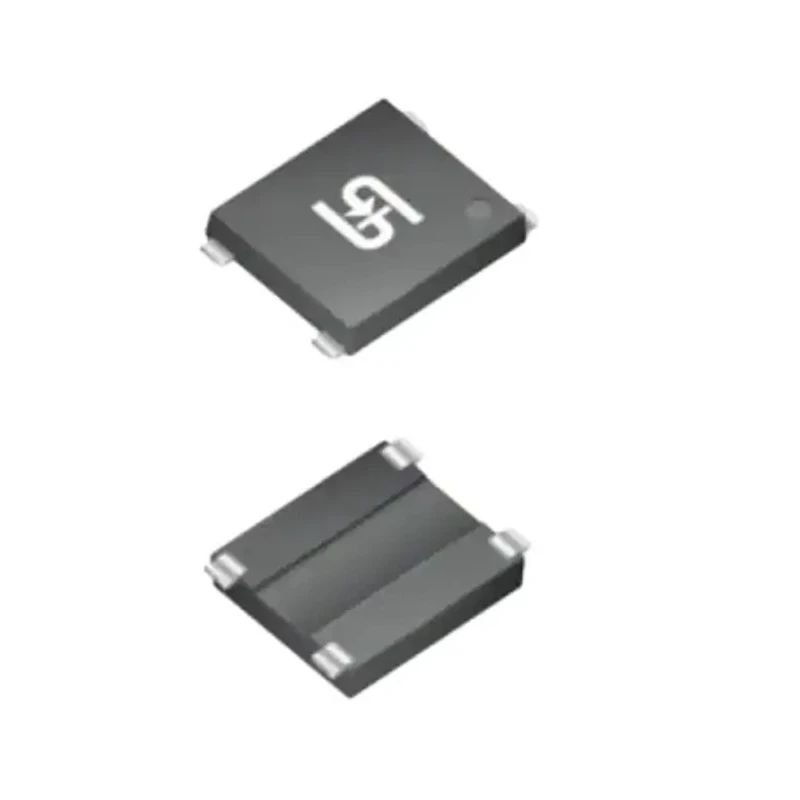

Taiwan Semiconductor Bridge Rectifier, Surface Mount YBS Package, Quad Configuration, 800 V 90 A YBS2206G

Name: Taiwan Semiconductor Bridge Rectifier, Surface Mount YBS Package, Quad Configuration, 800 V 90 A YBS2206G
Brand: Taiwan Semiconductor
SKU: 178285
Price: 20.22 USD
Availability: InStock



Category Bridge Rectifiers Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	8.6mm
Length	6.7mm
Model	YBS2206G
Mount Type	Surface
Series	YBS2200
Configuration	Quad
Maximum Operating Temperature	150°C
Package Type	YBS
Minimum Operating Temperature	-55°C
Standards/Approvals	UL, RoHS, IEC 61249-2-21
Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	800V
Peak Reverse Current Ir	0μA
Peak Non-Repetitive Forward Surge Current Ifsm	90A
Forward Current If	2.2A
Peak Forward Voltage Vf	0.95V

Key Features

Equipped with a YBS package and 4 pins for efficient surface mounting.
Capable of handling peak reverse repetitive voltage of 800 V and peak surge current of 90 A.
Operates over a temperature range from -55°C to a maximum of 150°C.
Features a peak forward voltage of 0.95 V ensuring low conduction loss.
Designed with a glass passivated chip junction for durability.
RoHS compliant and halogen-free, meeting IEC 61249-2-21 standards.
Ideal for applications including switching mode power supplies, adapters, and lighting.
Constructed with reliable moulded plastic technique for cost effectiveness.

Product Description

Taiwan Semiconductor YBS2206G Bridge Rectifier is a surface mount semiconductor device housed in a YBS package with quad configuration and 4 pins. This component is designed for power electronics applications requiring high reliability and efficiency.

It supports a peak reverse repetitive voltage rating of 800 V and a peak non-repetitive forward surge current rating of 90 A, suitable for robust power handling. The forward current is rated at 2.2 A with a peak forward voltage of 0.95 V, enabling low energy dissipation during high-speed switching operations. The device operates within a temperature range of -55°C to 150°C, ensuring performance stability in diverse industrial environments.

Key design features include the glass passivated chip junction that enhances reliability and the use of moulded plastic for low-cost construction. The bridge rectifier is moisture-sensitive at level 1 conforming to J-STD-020, and complies with international standards such as UL, RoHS, and IEC 61249-2-21 for halogen-free materials.

This bridge rectifier is optimally suited for use in switching mode power supplies (SMPS), adapter circuits, and lighting applications, providing efficient AC to DC conversion in compact surface mount form factors.

Robust quad configuration with 4 mounting pins for surface assembly. High voltage and current ratings ensure suitability for demanding applications. Reliable glass passivated chip technology enhances durability. Comply with RoHS and halogen-free requirements for environmental safety.

Moisture sensitivity level 1, suitable for automated assembly processes. Compact 6.7 mm length and 8.6 mm height package size. Designed for cost-effective yet reliable power conversion solutions. Applicable in industrial, commercial, and consumer electronic power systems.

Explore EnvMart’s comprehensive selection of semiconductor components for diverse electronic design and manufacturing needs.

Explore more products in our Bridge Rectifiers category.
