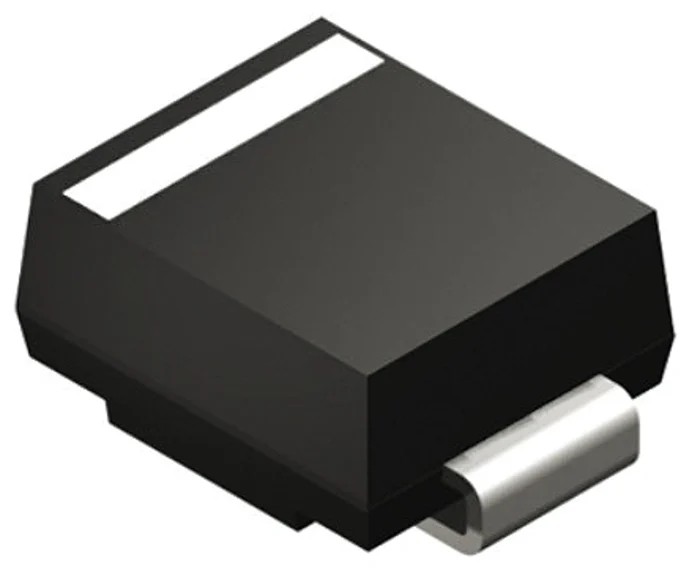

HY Electronic Corp 100 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AA SS210

Free Delivery in India | Lowest Global Shipping Charges

HY Electronic Corp 100 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AA SS210

Name: HY Electronic Corp 100 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AA SS210
Brand: HY Electronic Corp
SKU: 275063
Price: 0.08 USD
Availability: InStock



Category Semiconductors Brand HY Electronic Corp Condition New

Specifications

Country of Origin	China
Brand	HY Electronic Corp
Height	2.23mm
Length	4.7mm
Model	SS210
Width	3.94mm
Mount Type	Surface
Series	FBI
Maximum Operating Temperature	150°C
Package Type	DO-214AA
Minimum Operating Temperature	-55°C
Polarity	indicated by cathode band
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	20mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	850mV
Moulded Plastic Case (Plastic	flammability classification UL 94V-0)

Key Features

This diode features a metal-semiconductor junction with guarding for enhanced performance.
It has a low forward voltage drop of 850 mV, improving efficiency.
The molded plastic case complies with UL 94V-0 flammability classification.
Its dimensions are compact with a height of 2.23 mm, length of 4.7 mm, and width of 3.94 mm.
Operates reliably over a temperature range from -55°C to 150°C.
Peak non-repetitive forward surge current capacity of 50 A makes it robust for transient conditions.
Polarity is indicated by a cathode band for correct installation.
Designed primarily for free-wheeling, inverters, and polarity protection applications.

Product Description

HY Electronic Corp SS210 is a high-performance surface mount Schottky diode with a 2-pin DO-214AA package designed for industrial and electronic semiconductor applications. It supports a peak reverse repetitive voltage of 100 V and continuous forward current up to 2 A, making it suitable for power rectification tasks with improved efficiency due to its low forward voltage drop of 850 mV.

This device incorporates a metal-semiconductor junction with guarding and epitaxial construction, ensuring enhanced reliability and ruggedness. The molded plastic case meets UL 94V-0 flammability standards, providing safe electrical insulation and mechanical protection. The compact dimensions of 4.7 mm length, 3.94 mm width, and 2.23 mm height enable space-saving PCB designs.

Operating between -55°C to 150°C, the SS210 is well-suited for harsh environmental conditions in industrial, automotive, manufacturing, and power electronics sectors. It can withstand peak non-repetitive forward surge currents of 50 A, allowing it to tolerate transient voltage spikes.

The diode features polarity marking by a cathode band to ensure proper circuit integration. Its typical applications include free-wheeling diodes, inverters, and polarity protection circuits in switching power supplies and power management modules.

This diode leverages metal-semiconductor junction technology with guarding for enhanced performance. Low forward voltage drop of 850 mV reduces energy loss during conduction. Robust construction with UL 94V-0 rated molded plastic package increases safety.

Compact surface mount DO-214AA package eases integration into circuits. Wide operating temperature range from -55°C to 150°C for versatility. High surge current capability of 50 A supports transient power conditions. Clearly indicated polarity to prevent installation errors.

Ideal for power electronics such as free-wheeling and inverter circuits. Manufactured in China with quality assurance from HY Electronic Corp. Explore more precision semiconductor components in the Schottky Diodes & Rectifiers category at EnvMart for reliable industrial and commercial electronics manufacturing solutions.
