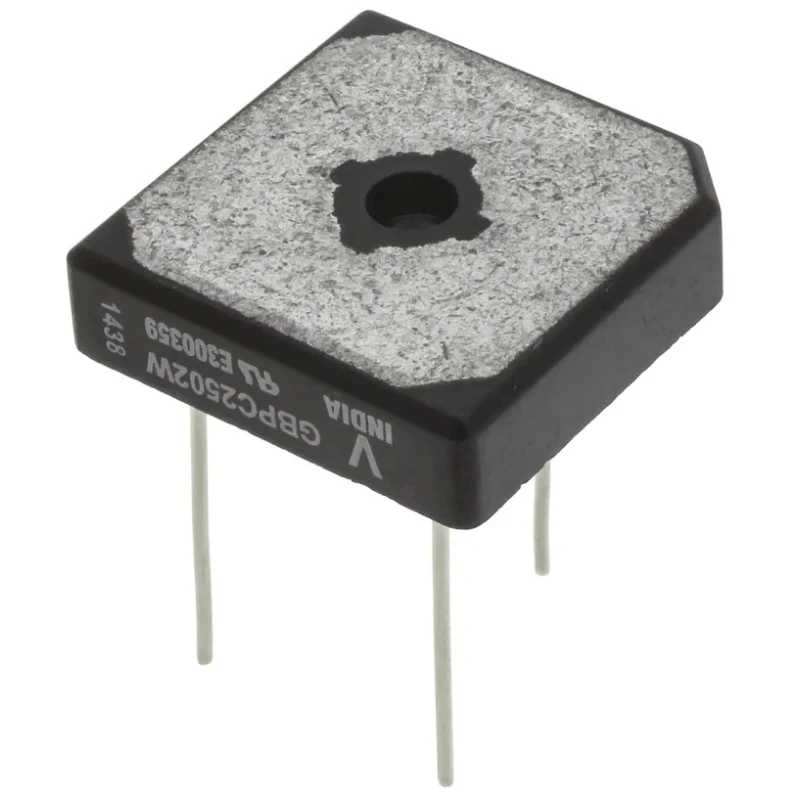

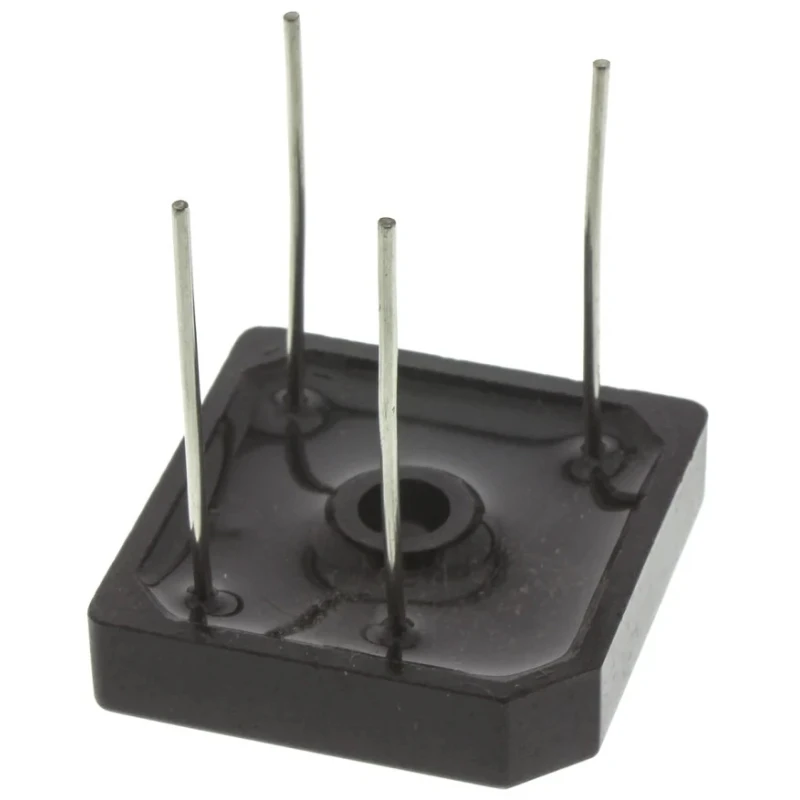

Vishay Bridge Rectifier 200 V 300 A 4-Pin Single VS-GBPC2502W

Vishay VS-GBPC2502W Bridge Rectifier 200 V 300 A 4-Pin Single is an industrial-grade semiconductor component engineered to convert alternating current (AC) input into direct current (DC) output via full-wave rectification suitable for electronic circuits and power supply applications.

This device is mounted using a through-hole technique on printed circuit boards and packaged in a GBPC style holder, ensuring secure and efficient installation. The bridge rectifier operates at a peak reverse repetitive voltage (VRRM) of 200 volts and a continuous forward current (IF) rating of 25 amperes, making it well suited for medium-power power supplies and industrial equipment.

Operating temperature ranges from -55°C minimum to a maximum of 150°C, providing robustness for demanding thermal environments. Its peak forward voltage of 1.1 volts allows for minimal power loss during conduction, enhancing energy efficiency. The rectifier has a peak non-repetitive forward surge current (IFSM) of 300 amperes, enabling it to handle transient high current surges during start-up or fault conditions safely.

The component’s physical dimensions are compact with a length and width of 28.8 millimeters each and height of 7.62 millimeters, facilitating space-efficient PCB layouts. Designed with 4 pins and a single phase diode configuration, this product enables straightforward full-wave bridge rectification for single-phase AC circuits.

Its low peak reverse current (IR) of 5 microamperes ensures minimal leakage current, which is critical for maintaining circuit performance and longevity. The rectifier is manufactured in India and is a member of the VS-GBPC series by Vishay Semiconductor, maintaining stringent industrial quality standards.

Capable of handling a peak reverse repetitive voltage of 200 volts. Supports a forward current of 25 amperes for continuous operation. Constructed with a through-hole mount and GBPC package type for easy PCB installation.

Operates reliably within a temperature range of -55°C to 150°C. Features a compact size with dimensions 28.8mm x 28.8mm x 7.62mm (LxWxH). Designed with 4 pins and a single configuration for standard bridging of AC to DC.

Withstands peak non-repetitive forward surge current of 300 amperes without damage. Exhibits low peak forward voltage drop of 1.1 volts for efficient power conversion. Minimal reverse leakage current of 5 microamperes ensuring effective isolation.

This bridge rectifier is widely used in industrial electronics, power supplies, motor controllers, HVAC equipment, manufacturing process controls, and other commercial electrical devices requiring reliable AC to DC conversion.
