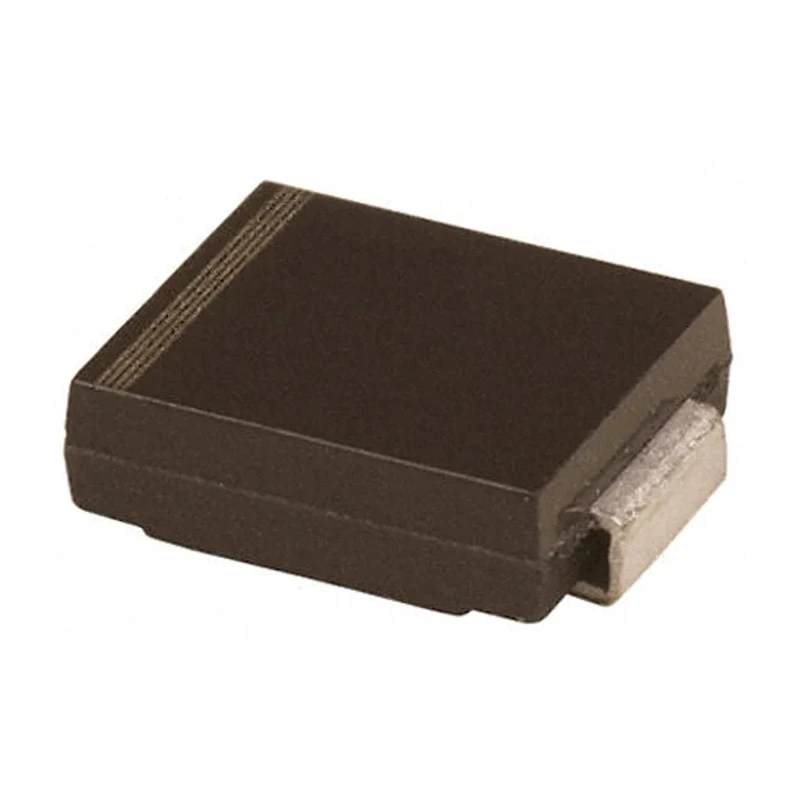

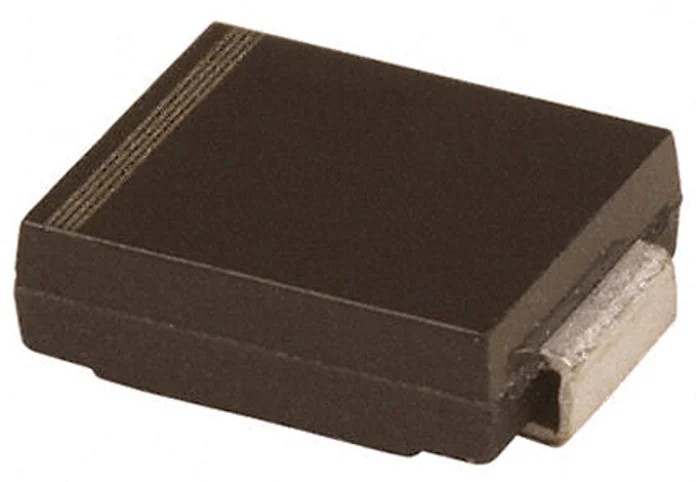

HY Electronic Corp 100 V 3 A Surface Mount Schottky Barrier Rectifier Diode DO-214AB SS310
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.41mm |
| Length | 7.11mm |
| Model | SS310 |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 850mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- Packaged in a compact DO-214AB (SMC) moulded plastic case with UL 94V-0 flammability rating.
- Features a metal-semiconductor junction with guarding for enhanced performance.
- Low forward voltage drop of 850 mV ensures efficient rectification.
- Operates reliably between -55°C and 150°C temperature range.
- Designed with polarity indicated by a cathode band for correct installation.
- Suitable for applications including free-wheeling, inverters, and polarity protection circuits.
- Peak reverse current of 20 mA with peak surge forward current of 80 A.
- Manufactured in China with new product condition.
Product Description
HY Electronic Corp SS310 is a surface mount Schottky barrier rectifier diode engineered for industrial and commercial semiconductor applications. It has a maximum continuous forward current rating of 3 A and a peak reverse repetitive voltage of 100 V, making it suitable for power conversion and protection in electronic circuits.
The diode is housed in a DO-214AB (SMC) moulded plastic case that meets UL 94V-0 flammability standards, ensuring durability and safety under demanding operating conditions. Featuring a metal-semiconductor junction with guarding and epitaxial construction, it achieves a low forward voltage drop of 850 mV which improves circuit efficiency.
Operating effectively in temperatures ranging from -55°C to 150°C, this diode is marked for correct polarity by a cathode band. Its peak surge forward current capacity of 80 A and a peak reverse current of 20 mA enhance its robustness against transient loads.
The compact dimensions of 7.11 mm length, 6.22 mm width, and 2.41 mm height allow for easy incorporation into dense electronic assemblies. Common industrial use cases include free-wheeling diodes, inverter applications, and polarity protection in power circuits.
This product is manufactured in China and supplied in new condition, suitable for use in industrial, manufacturing, and electronic device repair contexts. Packaged in a moulded plastic case with UL 94V-0 flammability classification.
Low forward voltage drop improves energy efficiency. Metal-semiconductor junction with guarding enhances performance. Wide temperature range operation from -55°C to 150°C. Compact DO-214AB package supports high-density PCB mounting.
Reliable for free-wheeling, inverter, and polarity protection applications. Peak surge forward current of 80 A withstands transient currents. Polarity clearly indicated by cathode band for easy installation. Explore more semiconductor and Schottky diode products in the Electronics & Electricals section at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
