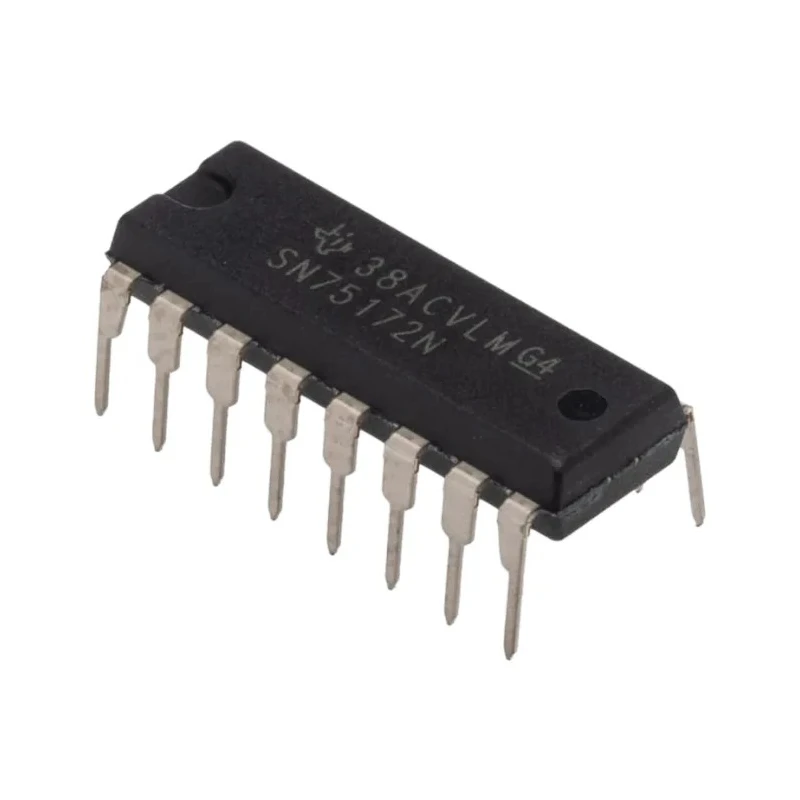

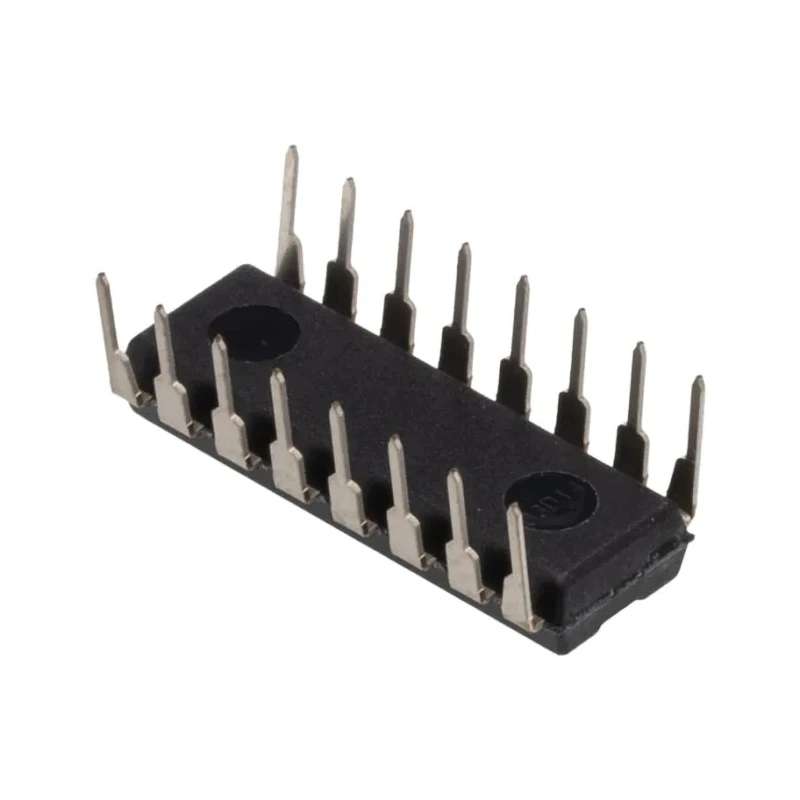

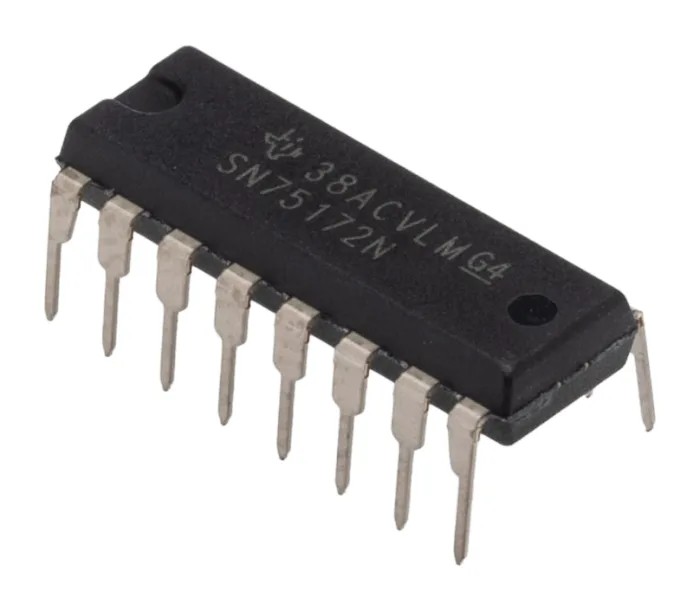

Texas Instruments 4-Channel Differential Line Driver, Non-Inverting, PDIP, 4.75 - 5.25V, 16-Pin SN75172N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 19.69mm |
| Model | SN75172N |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Differential |
| Series | SN75172 |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Line Driver |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Line Driver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 65ns |
| Supply Current | 60mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- Offers 4-channel differential line driving for robust industrial and laboratory communication.
- Non-inverting output type ensures signal integrity in RS-485 and other interface systems.
- Designed for through-hole mounting in standard 16-pin PDIP form factor.
- Operates with a supply voltage range of 4.75V to 5.25V for compatibility with standard logic circuits.
- Supports maximum supply current of 60mA, suitable for high-performance applications.
- Maximum propagation delay of 65ns for fast signal transmission.
- Handles high/low output currents up to 60mA, enabling strong driving capabilities.
- Industrial-grade temperature range from 0°C to 70°C ensures reliability in demanding environments.
Product Description
Texas Instruments SN75172N is a high-performance 4-channel line driver IC, engineered for reliable differential interface communications in industrial, laboratory, and automation environments. With non-inverting outputs and a robust PDIP-16 package, this device offers precise signal transmission for RS-485 and similar protocols where differential line driving is critical.
The SN75172N operates at a supply voltage between 4.75V and 5.25V, ensuring compatibility with standard TTL and CMOS logic circuits. Its differential inputs and outputs enable noise immunity and signal integrity over long cable runs, making it ideal for measurement, control, and data transmission applications.
This IC features a maximum supply current of 60mA and can deliver up to 60mA on low or high output levels, making it suitable for applications requiring strong signal drive. The non-inverting polarity maintains accurate signal reproduction while supporting fast transmission speeds, with a maximum propagation delay time of just 65ns. Its through-hole design and 16-pin PDIP package ease integration into prototyped and production systems.
Designed for industrial reliability, the SN75172N supports an operating temperature range of 0°C to 70°C. Its compact dimensions (length: 19.69mm, width: 6.6mm, height: 5.08mm) make installation simple in densely packed interface boards or laboratory equipment.
Common use cases include industrial automation controllers, laboratory measurement apparatus, process control stations, and any system requiring robust multi-channel differential signaling. The SN75172N is also well-suited for commercial communication equipment and instrumentation interfaces.
Explore additional Texas Instruments interface ICs and semiconductor components in the EnvMart electronics and laboratory supply categories.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN75172N operates with a supply voltage range of 4.75V to 5.25V, making it compatible with standard TTL and CMOS logic circuits.
This model features a maximum propagation delay of 65ns, allowing for fast signal transmission.
It supports 4 channels, providing differential line driving capabilities for multiple signals.
The dimensions of the SN75172N are 19.69mm in length, 6.6mm in width, and 5.08mm in height.
It provides a differential output type, which is essential for maintaining signal integrity in communication systems.
The SN75172N has a maximum supply current of 60mA, suitable for high-performance applications.
This line driver operates within an industrial-grade temperature range of 0°C to 70°C.
It is designed for through-hole mounting in a standard 16-pin PDIP package.
The input type for this model is differential, which enhances noise immunity and signal integrity.
It is suitable for industrial automation controllers, laboratory measurement apparatus, and process control stations, among others.
The SN75172N can handle a maximum output current of 60mA for both high and low output levels.
The logic function of this model is that of a line driver, specifically designed for differential signaling.
