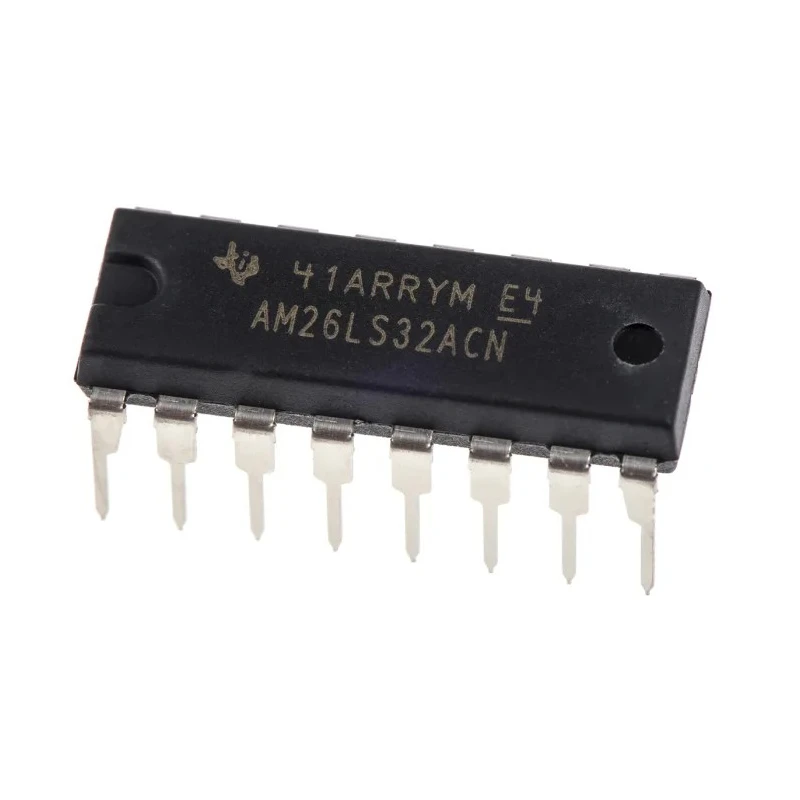

Texas Instruments Line Receiver 3-State PDIP AM26LS32ACN, TTL Logic, 16-Pin, Differential Input, 4.75 - 5.25V

Texas Instruments AM26LS32ACN is a highly reliable line receiver designed for TTL logic systems. Featuring a 3-state output, differential input capability, and a sturdy 16-pin PDIP package, this integrated circuit is ideally suited for industrial, laboratory, automation, and communication applications requiring robust signal reception and propagation.

The device operates within a low voltage range, specifically from 4.75 V to 5.25 V, making it compatible with standard TTL systems. The differential input helps maintain signal integrity even over longer transmission distances, minimizing noise and improving data reliability. With a maximum propagation delay of 35 ns, the line receiver ensures timely response for high-speed digital circuits.

AM26LS32ACN provides 3-state output functionality, allowing multiple devices to share the same bus without interference. This solution is perfect for applications where switching between active and high-impedance states is essential for multiplexed or shared data lines. The maximum high-level output current of -440μA and a maximum low-level output current of 8mA further support its capacity to drive loads effectively.

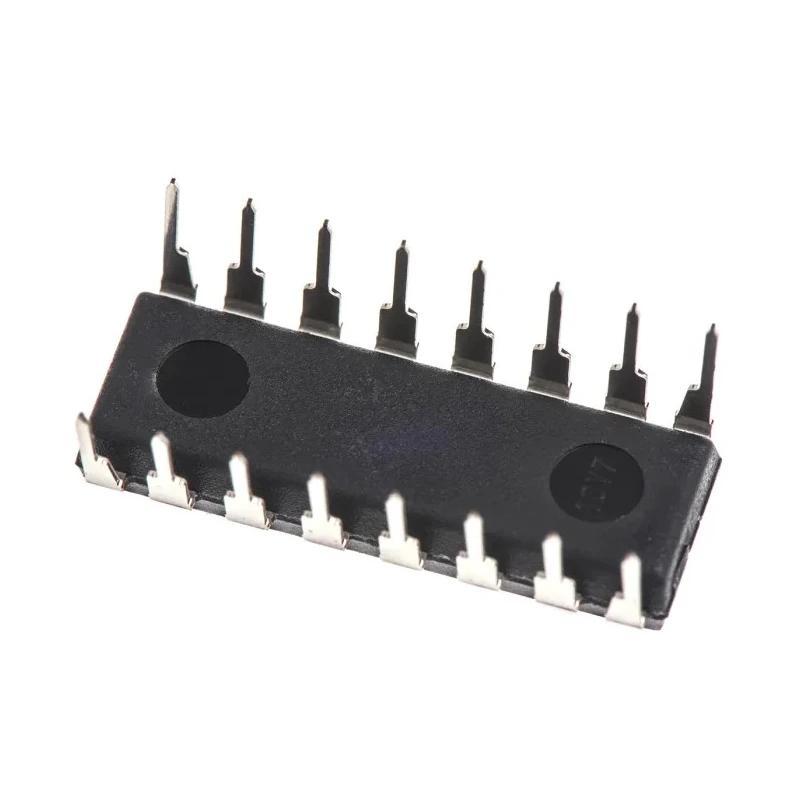

The device is built in a PDIP package, making it simple to install via through-hole mounting for robust assembly in electronics projects and industrial PCBs. Its compact form factor occupies minimal space, measuring 19.69 mm in length, 6.6 mm in width, and 5.08 mm in height. These dimensions enable easy integration into a wide variety of system architectures.

The AM26LS32ACN is rated for operation between 0°C and 70°C, ensuring reliable performance in environments ranging from laboratory testing to demanding industrial setups. It belongs to the AM26LS32AC series, further guaranteeing quality and consistency across different installations.

Typical use cases include signal reception in industrial automation, laboratory instrumentation, digital communication interfaces, and other electronic systems requiring dependable line drivers and receivers. Through-hole mounting and PDIP packaging allow for straightforward installation and maintenance.

Offers differential input for robust signal integrity. Operates within a supply voltage range of 4.75 to 5.25 V. Supports 3-state outputs for flexible interfacing. Through-hole mounting ensures secure placement on PCBs. Maximum supply current of 70 mA enhances operational efficiency.

Wide operating temperature range from 0°C to 70°C for reliable performance. Compact PDIP package with physical dimensions of 19.69 mm × 6.6 mm × 5.08 mm. Includes TTL logic family characteristics for industry-standard digital applications.
