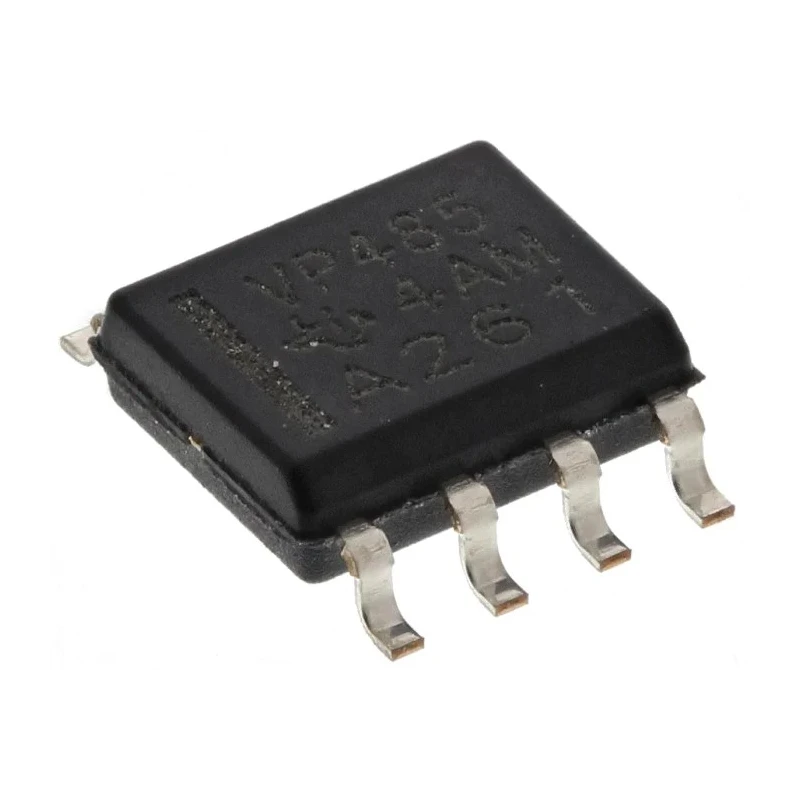

Texas Instruments Line Transceiver SN65HVD485ED Differential, Non-Inverting, 8-Pin SOIC, 4.5 - 5.5V Surface-Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN65HVD485ED |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65HVD485E |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | SN75 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -8mA |
| Maximum Propagation Delay Time @ CL | 3.5ms |
| Supply Current | 2mA |
| Maximum Low Level Output Current | 8mA |
Key Features
- Supports differential signaling for robust noise immunity.
- Operates within a supply voltage range of 4.5V to 5.5V.
- Features non-inverting polarity and surface-mount SOIC package for compact designs.
- Maximum propagation delay time of 3.5ms enables efficient data transmission.
- Wide operating temperature range from -40°C to 85°C ensures reliability in harsh environments.
- Handles high and low-level output currents up to 8mA.
- Suitable for industrial, automation, and communication interface applications.
Product Description
Texas Instruments SN65HVD485ED is a high-performance line transceiver designed for differential RS-485 communication interfaces. Featuring non-inverting signal polarity and an 8-pin SOIC surface-mount package, this transceiver ensures reliable and robust operation in demanding electronic environments.
Engineered to operate within a supply voltage range from 4.5V to 5.5V, the SN65HVD485ED supports differential input and output configurations, providing excellent noise immunity for critical signal transmission. Its maximum propagation delay time of 3.5ms facilitates swift and consistent data communication - an essential feature for industrial controllers, instrumentation, and automation systems.
The device is capable of handling high and low-level output currents up to 8mA, making it suitable for applications requiring strong drive capabilities. Installation and integration are streamlined through the SOIC package type, ideal for compact PCB layouts and automated surface-mount assembly.
Ready for deployment across varied environments, the SN65HVD485ED operates reliably from -40°C up to 85°C and has a pin count of 8, aligning with standard interface IC requirements. Its differential signaling allows for robust immunity against electromagnetic interference (EMI), making it ideal for industrial, networking, and commercial communication systems.
Noteworthy features include a logic family of SN75 and a supply current of only 2mA, providing energy efficiency along with high operational reliability. Common use cases cover industrial automation, building control, motor drivers, and process communications.
Supports differential signaling for robust noise immunity. Operates within a supply voltage range of 4.5V to 5.5V. Features non-inverting polarity and surface-mount SOIC package for compact designs. Maximum propagation delay time of 3.5ms enables efficient data transmission.
Wide operating temperature range from -40°C to 85°C ensures reliability in harsh environments. Handles high and low-level output currents up to 8mA. Suitable for industrial, automation, and communication interface applications.
This IC is highly recommended for industrial segments, laboratory communication networks, manufacturing, process instrumentation, and commercial automation projects seeking reliable RS-485 interface components.
Discover more Texas Instruments interface solutions and browse Line Interface ICs in the EnvMart catalog for your industrial and automation requirements.
