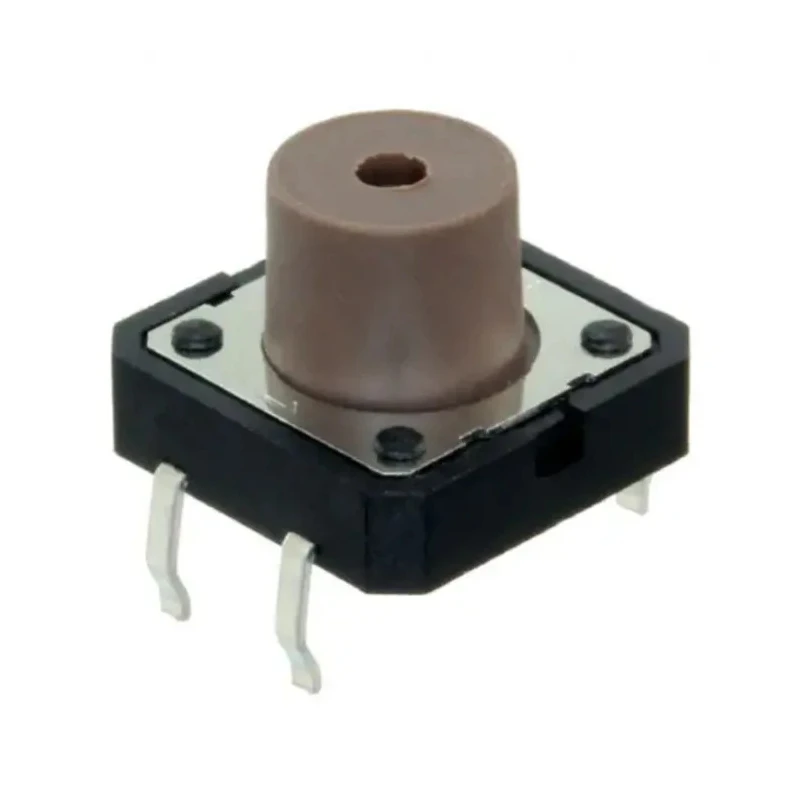

C & K IP40 Black Tactile Switch Button, SPST 50mA 12 V dc Through Hole
Specifications
| Country of Origin | China |
|---|---|
| Brand | C & K |
| Height | 2mm |
| Length | 12mm |
| Model | IP40 |
| IP Rating | IP40 |
| Width | 12mm |
| Mount Type | Through Hole |
| Series | PTS |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -20°C |
| Terminal type | Terminal |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 12V dc |
| Actuator Style | Button |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 1.8N |
| Mechanical Life | 200000Cycles |
Key Features
- The switch features a black button actuator with straight orientation and a 1.8N operating force.
- It is a through-hole mount type suitable for PCB assembly.
- The switch operates reliably between -20°C and 70°C.
- Silver-plated contacts ensure good conductivity and longevity with mechanical life of 200,000 cycles.
- The compact 12mm by 12mm size fits limited space applications.
- It complies with RoHS standards ensuring environmental safety.
- This tactile switch is ideal for instrumentation, consumer products, computers, and industrial equipment.
Product Description
C & K PTS125SM85-2 LFS series IP40 black tactile switch button is designed for precise momentary switching with SPST configuration. Rated for 50mA contact current at 12 V dc, it ensures dependable electrical performance in compact spaces.
The button actuator is black, straight oriented, and mounted through-hole on printed circuit boards, allowing robust mechanical fastening. Operating force of 1.8N and mechanical life rated at 200,000 cycles make this switch suitable for frequent usage.
Constructed with silver plated contacts and compliant with RoHS standards, the switch offers environmental protection and high reliability. Its operating temperature range from -20°C to 70°C supports diverse industrial and consumer environments.
Measuring 12mm in length and width with a 2mm height, the switch is well suited for instrumentation panels, computers, consumer electronics, and industrial control systems that require tactile feedback and precision.
The IP40 rating prevents solid objects greater than 1mm from damaging the switch. The SPST contact configuration allows single pole single throw switching. Applicable across industrial automation, consumer electronics, and laboratory instruments.
Through-hole mount ensures stable mechanical and electrical connection in dense PCB layouts. The PTS125 series includes various Tactile Switches providing flexibility in height and operating force.
This product originates from China under the C & K brand, recognized for high-quality switch components. Explore our Electronics & Electricals catalog for more tactile and other specialized switches to meet your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single pole single throw (SPST) contact configuration, allowing for momentary switching operation.
It operates reliably within a temperature range of -20°C to 70°C, making it suitable for various environments.
This tactile switch has a mechanical life rated at 200,000 cycles, ensuring longevity under frequent use.
The switch measures 12mm in length and width, with a height of 2mm, making it compact for limited space applications.
It is designed for through-hole mounting, which ensures stable mechanical and electrical connections on printed circuit boards.
The switch requires an operating force of 1.8N for activation, providing tactile feedback during use.
It is rated for a contact current of 50mA at a voltage of 12V DC, ensuring dependable electrical performance.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The actuator is black in color and features a button style with a straight orientation.
The switch is constructed with silver-plated contacts, which provide good conductivity and longevity.
This product originates from China, under the C & K brand, known for its high-quality switch components.
