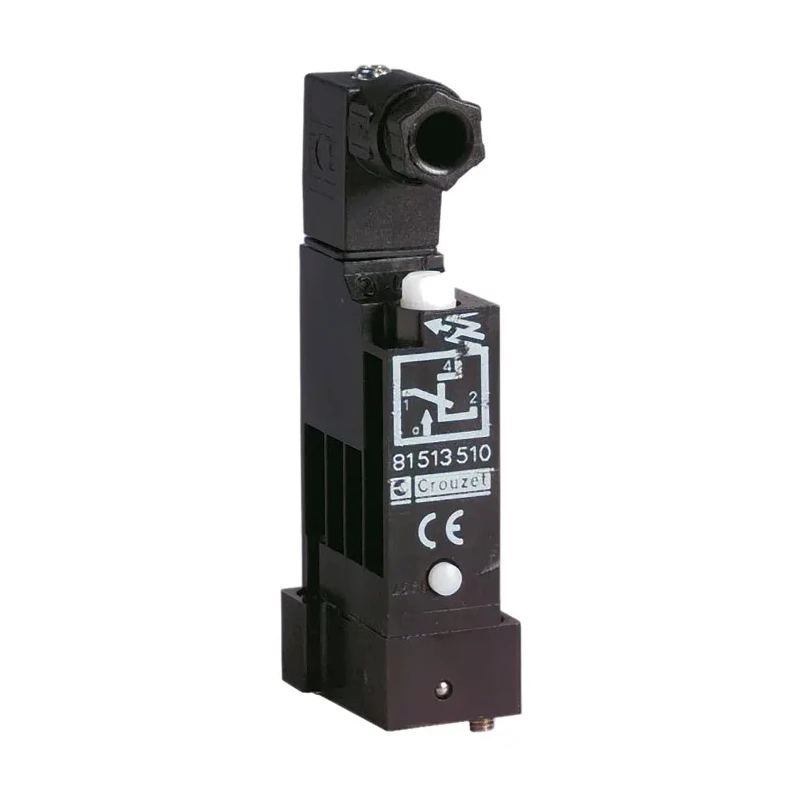

Crouzet Pressure Sensor IP54 8 bar 230V 50 °C IP54

Crouzet IP54 Pressure Sensor IP54 is a robust and precise device designed for pressure monitoring applications requiring protection against dust and water ingress with an IP54 rating. It operates effectively with gases, air, and liquids, accommodating pressures up to 8 bar and voltage at 230V. The sensor is well-suited for industrial, HVAC, fluid power, and pneumatic systems where reliable pressure detection is critical.

This sensor delivers a positive pressure type output with selectable switch outputs of PNP or NPN, allowing flexible integration into existing control circuits. Its mounting with a bracket ensures ease of installation, while the electrical connection via a plug socket adds to user convenience.

The device functions reliably within a temperature range of -5°C to 50°C, making it appropriate for a variety of controlled environmental conditions. Its physical dimensions are compact, measuring 43 mm in height, 30 mm in depth, and 15 mm in width, facilitating installation in space-restricted environments.

Manufactured in Morocco and compliant with RoHS standards, this pressure sensor assures environmentally responsible design and manufacturing standards. Suitable for gases, air, and liquids. Operating pressure up to 8 bar.

Switch output options of PNP and NPN. Positive pressure sensing with IP54 protection rating. Bracket mounting type and plug socket electrical connection. Operational temperatures from -5°C to 50°C. Compact size for constrained spaces.

RoHS compliant and environmentally friendly.

This Crouzet pressure sensor is highly reliable for industrial and pneumatic pressure measurement requirements. Browse more in the Pressure Sensor category to find compatible instruments and accessories.
