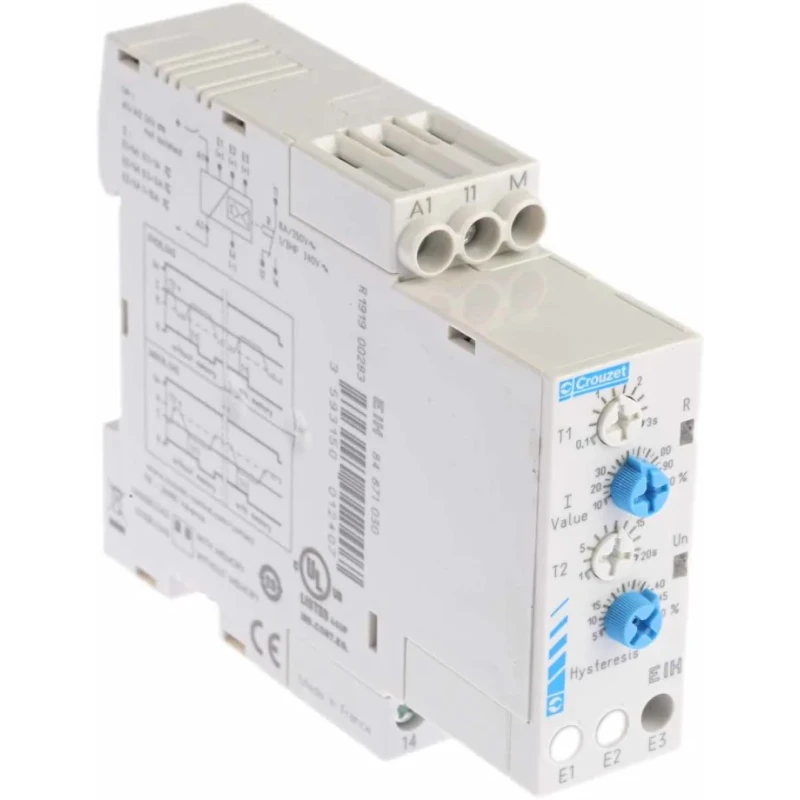

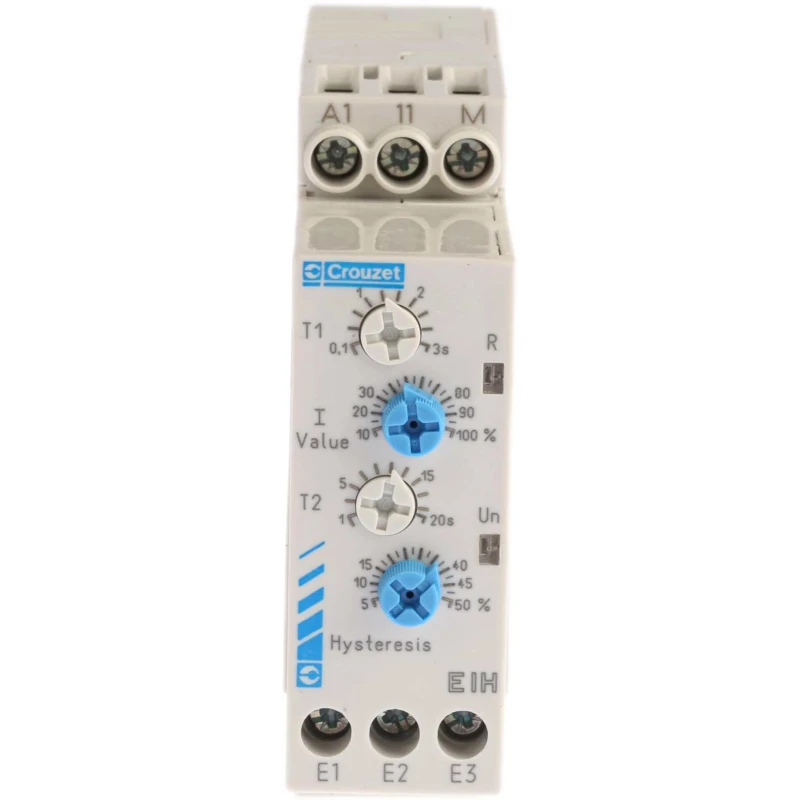

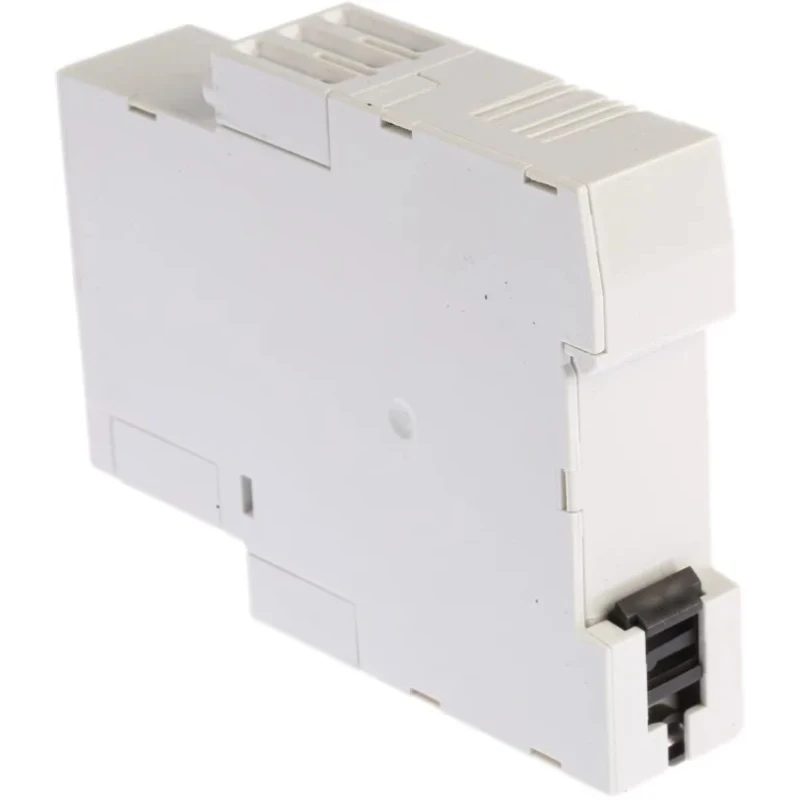

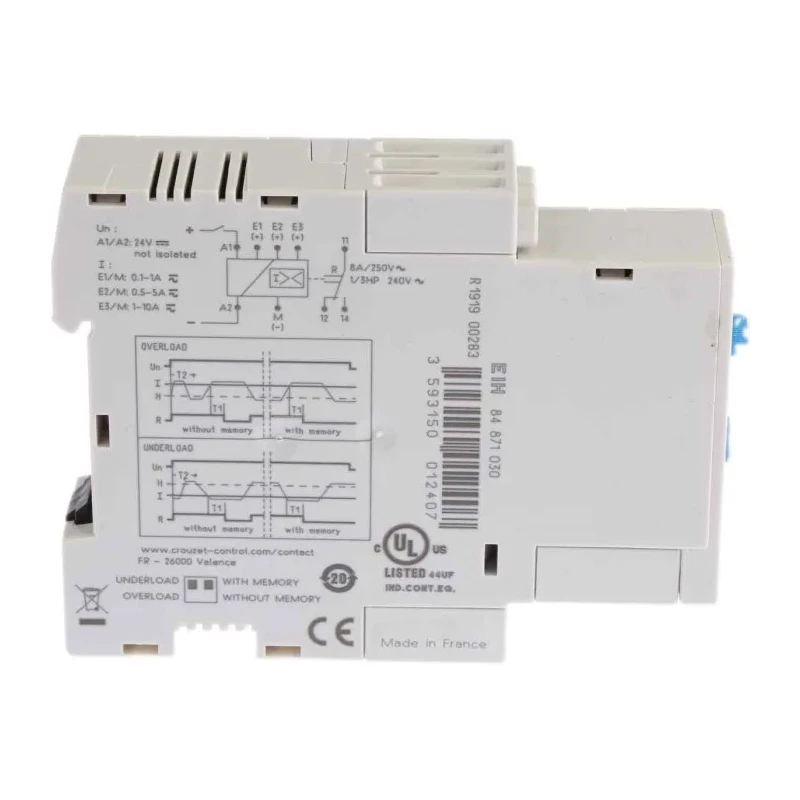

Crouzet 1 Phase SPDT Monitoring Relay, DIN Rail Mount, 0.1A to 10A, 24 V dc, Model 84871030

Crouzet 84871030 is a 1 Phase Single Pole Double Throw (SPDT) Monitoring Relay designed for precise current control and sensing in industrial and automation applications. It operates on a 24 V dc supply voltage and supports current sensing from 0.1A to 10A, making it suitable for overcurrent and undercurrent monitoring scenarios. The relay features a DIN rail mounting design for easy and compact installation in control panels and electrical enclosures.

Its adjustable time delay of 0.1 to 3 seconds allows operators to fine-tune the relay response to transient current fluctuations, improving system stability and preventing nuisance trips. With a relay contact current rating of 8A, it can control various industrial circuits requiring dependable switching performance. The compact form factor - 103.5 mm in length, 22.5 mm in width, and 78 mm in height - enables efficient use of space within electrical panels.

The product complies with RoHS environmental standards and is manufactured in France, ensuring reliability and conformity to high manufacturing standards. The device's operational temperature limits of up to 50°C allow it to function well in many industrial and commercial environments. This monitoring relay is suitable for applications in electrical automation, process control, industrial manufacturing, and other areas requiring constant monitoring of current phases to protect equipment and enhance operational safety.

Supports sensing currents from 0.1A to 10A for precise current threshold detection. SPDT contact configuration enables flexible control circuit integration. DIN rail mounting facilitates standardized and secure installation.

Adjustable time delay from 0.1 to 3 seconds enhances operational accuracy. Compact dimensions fit into tight electrical panel spaces. Rated for relay contact current up to 8A for robust switching capability. Operates reliably up to 50°C ambient temperature.

Power consumption of only 3 VA reduces energy usage. Complies with RoHS for environmental safety. Manufactured in France ensuring quality and durability.

This Crouzet monitoring relay is ideal for industrial, manufacturing, HVAC, and automation applications requiring precise current monitoring and control. It supports reliable electrical protection and system management when installed in control cabinets and automation systems.
