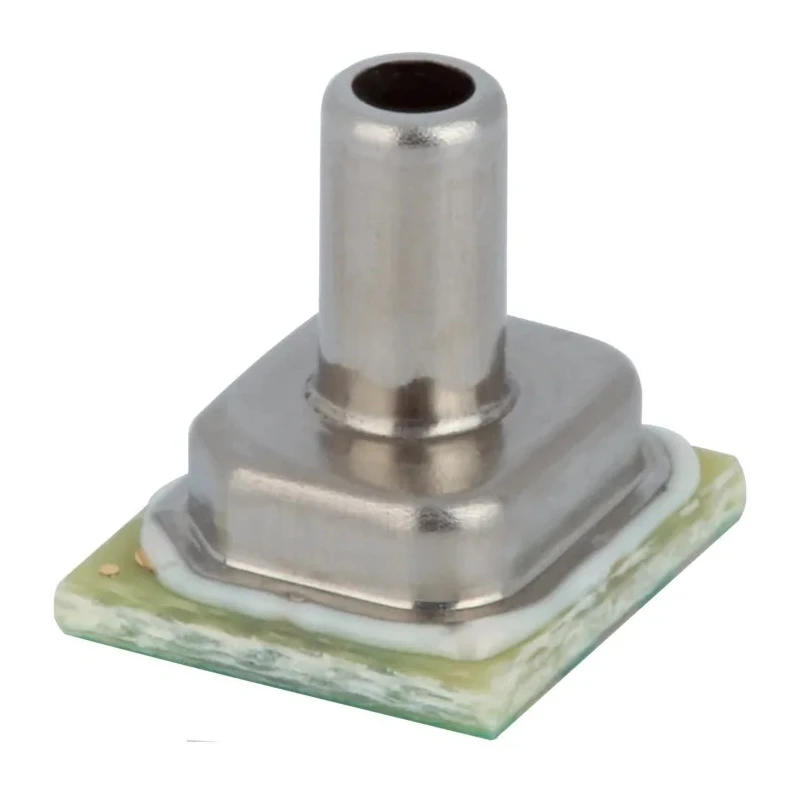

Honeywell Technologies Piezoresistive Pressure Sensor 206.84 kPa Maximum Operating Pressure ABP2LANT030PGSA3XX

Honeywell Technologies ABP2LANT030PGSA3XX is a high-performance piezoresistive pressure sensor offering a maximum operating pressure of 206.84 kPa. Designed for compact board-mount use, this sensor is suitable for measuring pressure in electronic circuits and pneumatic systems with calibrated, temperature-compensated outputs. It operates reliably across a broad temperature range from -40°C to 110°C, ensuring stable reading accuracy in varied environments.

The sensor features an on-board ASIC that compensates for offset, sensitivity, and temperature variations, enabling precise pressure measurement with update rates near 200 Hz. It supports both digital communication via 24-bit I2C or SPI interfaces and ratiometric analogue output for direct ADC connectivity, making it compatible with a wide range of instrumentation and embedded systems.

A liquid-media option with a protective gel coating enhances durability by protecting the port electronics against non-corrosive liquids and condensation typically found in harsh industrial or medical settings. Its low power consumption standby mode makes it suitable for portable or battery-powered applications requiring efficient sensor sampling.

This sensor is widely applicable in medical fields, particularly for ventilator and CPAP pressure monitoring, as well as in industrial pneumatic controls, valve position feedback mechanisms, HVAC transmitters, and process gas monitoring. It is also well-suited for fluid level measurements in commercial appliances, delivering reliable performance under demanding conditions.

The robust construction and packaging of the ABP series ensure resistance to vibration and shock, meeting the rigorous requirements of medical and industrial environments. Its calibration and temperature compensation enable high accuracy and long-term stability, typically with errors as low as ±0.2% full scale span depending on configuration.

Calibrated output with on-board ASIC for consistent accuracy. Operating temperature span from -40°C to 110°C for stable readings. Update rate approximately 200 Hz enables near real-time measurement. Digital outputs include 24-bit I2C or SPI for high resolution data.

Ratiometric analogue output allows direct ADC interfacing. Gel coating option protects electronics from liquids and condensation. Low power consumption with standby wake-on-command mode. Applications include medical ventilators, pneumatic controls, and HVAC systems.

Designed for resilience to vibration and shock in industrial environments. Long-term stability with calibration error as low as ±0.2% FSS. Explore the full range of pneumatic Pressure Sensors and industrial sensing solutions at EnvMart for comprehensive system integration and monitoring needs.
