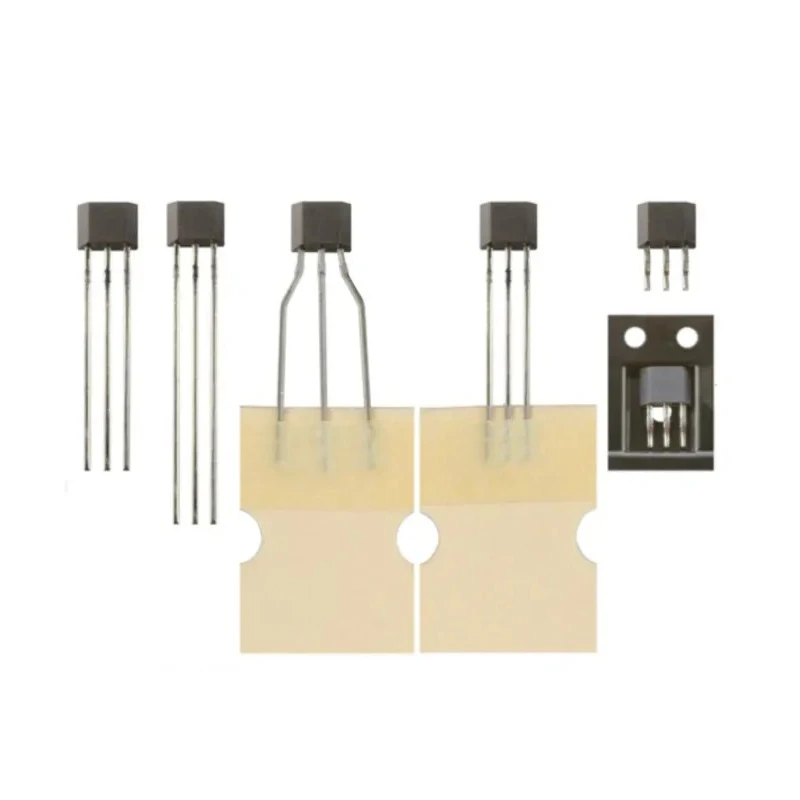

Honeywell Technologies 1 Axis Through Hole Hall Effect Sensor 4.5 V to 10.5 V, TO-92 Package, 3-Pin SS495B

Honeywell Technologies SS495B is a high precision 1 Axis Hall Effect Sensor designed for use in electronic and industrial applications. Featuring a linear response to magnetic fields, it operates across a 4.5 to 10.5 V supply voltage range and is packaged in a TO-92 through-hole configuration with 3 pins, facilitating straightforward mounting on PCBs.

This sensor incorporates a laser-trimmed thin film resistor for superior temperature stability and sensitivity up to ±3%. Its quad Hall sensing element design reduces mechanical and thermal stress interference, ensuring reliable output. The SS495B is capable of sensing either positive or negative poles of a magnetic field, making it versatile for various magnetic sensing applications.

With an operating temperature range extending from -40°C to 150°C, it suits harsh environmental conditions common in industrial settings. The device draws a modest supply current of 7 mA at 5 V, promoting energy efficiency in electronic designs. Its compact size of 4.06 mm length, 3 mm width, and 1.7 mm height supports integration into space-constrained circuits.

Applications for the SS495B Hall Effect Sensor include industrial automation, position sensing, speed detection, and proximity sensing in manufacturing processes. Its fast 3 microsecond response time allows for precise motion detection and control.

This sensor offers high sensitivity with ±3% accuracy and temperature compensation. Operates efficiently at 7 mA supply current at 5 V DC. Linear ratiometric output corresponding to the magnetic field strength. Wide operating temperature range from -40°C to 150°C ensures durability.

Compact dimensions of 4.06 mm length, 3 mm width, and 1.7 mm height. Quad Hall sensing element minimizes mechanical and thermal stress effects. Supports monitoring of both positive and negative magnetic poles. Through-hole mount type allows easy integration into circuits.

Fast response time of 3 microseconds enhances signal precision. Designed for industrial and electronic component applications.

The package contains one SS495B Hall Effect Sensor device in a protective bag, optimized for insertion into electronic assemblies. Discover this and similar sensors at EnvMart’s extensive catalog, tailored for engineering and industrial procurement needs.
