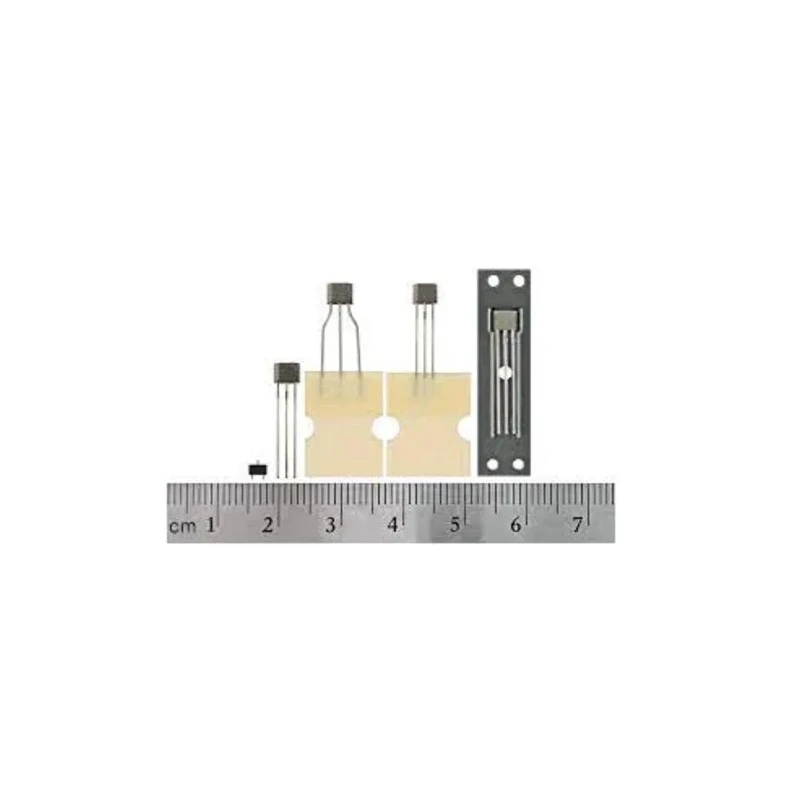

Honeywell Technologies 1 Axis Surface Hall Effect Sensor Digital Output 4V to 28V, SOT-23, 3-Pin SS361CT

Honeywell Technologies SS361CT 1 Axis Surface Hall Effect Sensor is a high sensitivity, latching sensor IC designed for precision magnetic field detection. Operating over a broad voltage range of 4 Vdc to 28 Vdc, this sensor is housed in a compact SOT-23 package with a 3-pin configuration, making it suitable for a wide range of electronic circuit applications.

It is engineered to respond to alternating magnetic poles - activating with a north pole and deactivating with a south pole. The sensor offers reverse polarity protection and enhanced sensitivity of just 50 Gauss typical at 25°C, ensuring reliable and accurate magnetic detection in diverse environmental conditions.

The device supports a temperature range of -40°C to 125°C, making it robust for industrial, automotive, and consumer electronics applications where environmental conditions vary. With a rapid response time of 1.5 microseconds and low supply current of 50 mA, it supports efficient power management and fast signal processing.

Ideal for integration into electronic boards requiring magnetic position sensing or contactless switching, the SS361CT sensor enables enhanced control, automation, and safety functions in equipment. Applications include industrial machinery sensors, electronic controls, position sensors, and security devices where bipolar magnetic field sensing is required.

Operates within 4 V to 28 V power supply range. Surface mount technology in durable SOT-23 packaging. Bipolar magnetic detection via digital output interface. Wide operating temperature range from -40°C to 125°C for diverse environments.

High sensitivity with a typical 50 G at 25°C magnetic threshold. Fast response time of 1.5 microseconds for precise detection. Supply current optimized to 50 mA to reduce power consumption. Reverse polarity protection enhances device longevity and safety.

RoHS compliant ensuring safe environmental standards. Compact 3-pin design suitable for automated surface mount assembly.

Applications span industrial, laboratory, and automotive sensor fields requiring reliable magnetic sensing solutions. For detailed design integration, technical documentation and 3D models are available to facilitate efficient product development processes.
