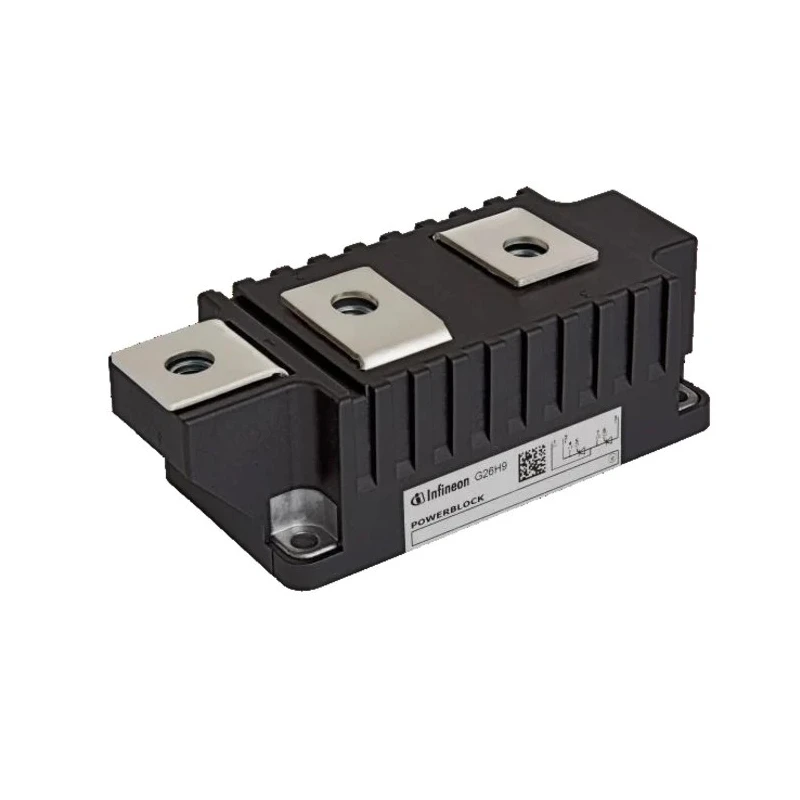

Infineon Thyristor Module 1600 V 16.5 kA 586 A 7-Pin ETD580N16P60HPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | ETD580N16P60HPSA1 |
| Maximum Operating Temperature | 135°C |
| Pin Count | 7 |
| Rated Average On-State Current Irms | 586A |
| Repetitive Peak Reverse Voltage VDRM | 1600V |
| Surge Current Rating | 16.5kA |
| Maximum Gate Trigger Current Igt | 250mA |
| Maximum Holding Current Ih | 300mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.43V |
| Repetitive Peak Off-State Current | 700A |
Key Features
- Rated average on-state current of 586 amperes ensures reliable high current performance.
- Repetitive peak reverse voltage rated at 1600 volts for robust electrical isolation.
- Maximum gate trigger current of 250 milliamperes and gate trigger voltage of 2 volts for precise control.
- Includes a 7-pin configuration with solder bond technology and an electrically insulated base plate.
- Maximum operating temperature up to 135 degrees Celsius for demanding industrial environments.
- Peak on-state voltage is 1.43 volts supporting efficient conduction.
- Maximum holding current is 300 milliamperes to maintain stable conduction states.
- Surge current capability of 16.5 kA suitable for transient high-current scenarios.
Product Description
Infineon ETD580N16P60HPSA1 Thyristor Module is a discrete semiconductor device engineered for high surge current and voltage handling in power electronics. Rated for 1600 V repetitive peak reverse voltage and a surge current rating of 16.5 kA, it is ideal for industrial applications including phase control and power regulation.
The module features advanced solder bond technology providing excellent reliability and enhanced heat dissipation. Its electrically insulated base plate contributes to improved electrical safety and system integration.
This 7-pin thyristor module operates effectively up to a maximum temperature of 135°C, supporting robust industrial environments. The device offers a rated average on-state current of 586 A and a peak on-state voltage of 1.43 V, assuring efficient electrical conduction under heavy loads.
Gate trigger parameters include a maximum current of 250 mA and voltage of 2 V, facilitating precise triggering control. Its maximum holding current of 300 mA ensures stable conduction once triggered, crucial for steady state operation.
The module is designed without automotive certifications targeting industrial power applications and semiconductor systems requiring high power, thermal stability, and voltage blocking capabilities. With a repetitive peak off-state current of 700 A, this module guarantees reliable blocking under repetitive stress.
Rated average on-state current: 586 A. Repetitive peak reverse voltage: 1600 V. Surge current rating: 16.5 kA. Maximum gate trigger current: 250 mA. Maximum gate trigger voltage: 2 V. Pin count: 7. Maximum operating temperature: 135°C.
Peak on-state voltage: 1.43 V. Maximum holding current: 300 mA. Repetitive peak off-state current: 700 A.
This Infineon thyristor module supports diverse industrial electronics markets including power supply systems, motor control circuits, and high power semiconductor modules in manufacturing, energy, and automation sectors.
Explore more products in Electronics & Electricals > Semiconductor > Discrete Semiconductor > Thyristor Module on EnvMart for complementary components and integrated solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this module is 586 amperes, ensuring reliable high current performance.
The maximum repetitive peak reverse voltage for this thyristor module is 1600 volts, providing robust electrical isolation.
This thyristor module has a surge current rating of 16.5 kA, suitable for transient high-current scenarios.
The maximum gate trigger current is 250 milliamperes and the maximum gate trigger voltage is 2 volts, allowing for precise control.
The maximum operating temperature for this module is 135 degrees Celsius, making it suitable for demanding industrial environments.
This model features a 7-pin configuration with solder bond technology.
The peak on-state voltage for this thyristor module is 1.43 volts, supporting efficient conduction.
The maximum holding current is 300 milliamperes, which ensures stable conduction once triggered.
The repetitive peak off-state current is rated at 700 amperes, guaranteeing reliable blocking under repetitive stress.
This thyristor module is designed for industrial applications including phase control and power regulation in power supply systems and motor control circuits.
It features advanced solder bond technology, which provides excellent reliability and enhanced heat dissipation.
The country of origin for this thyristor module is India.
