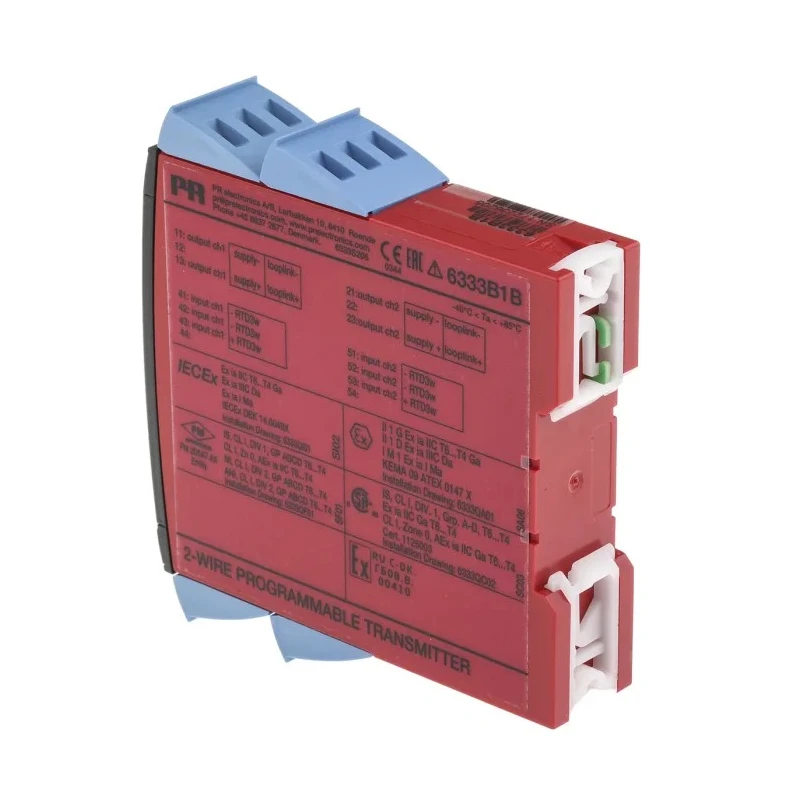

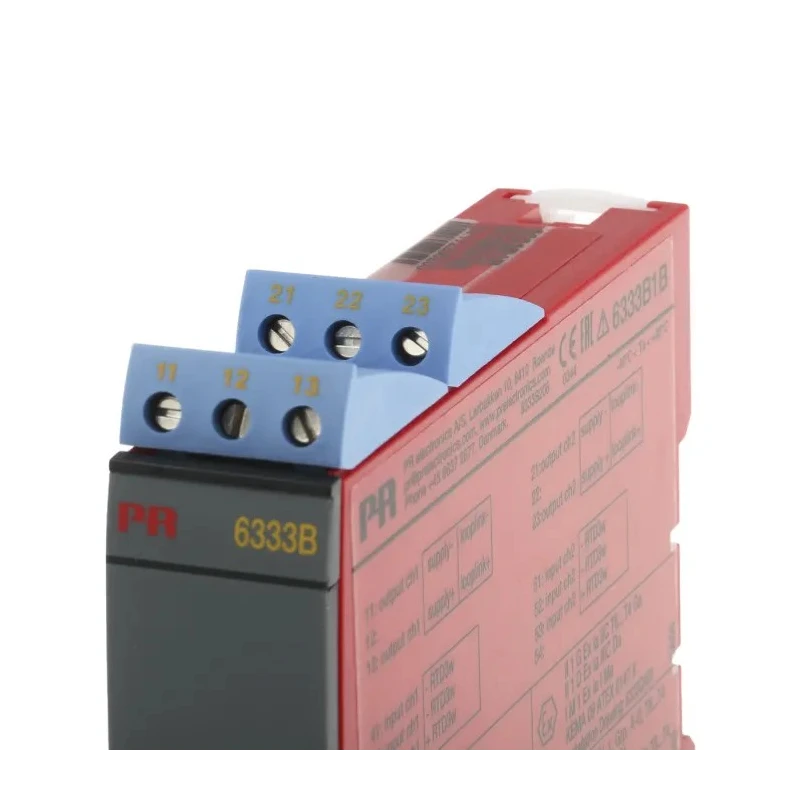

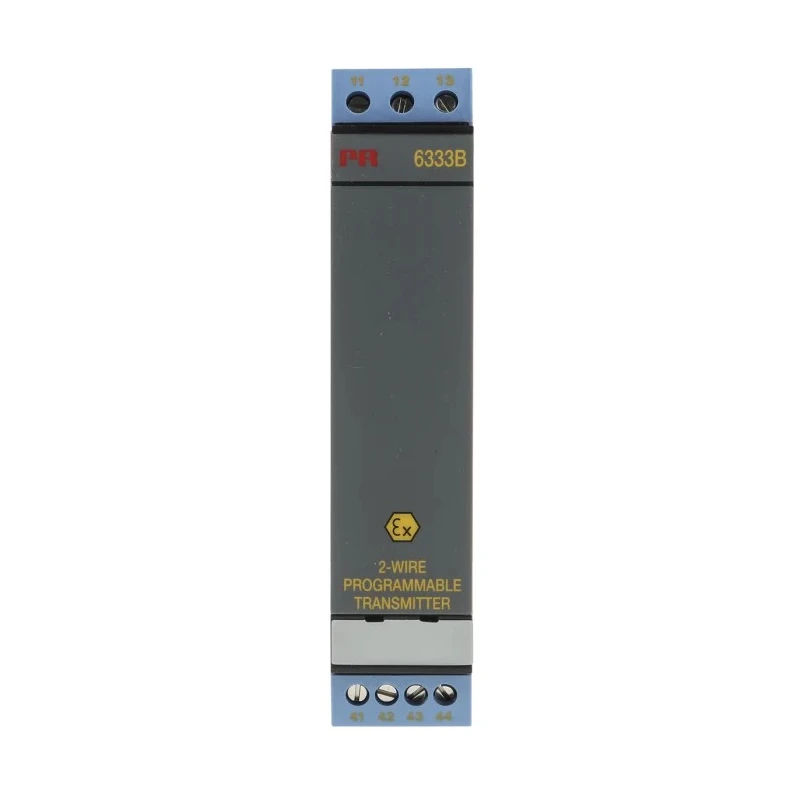

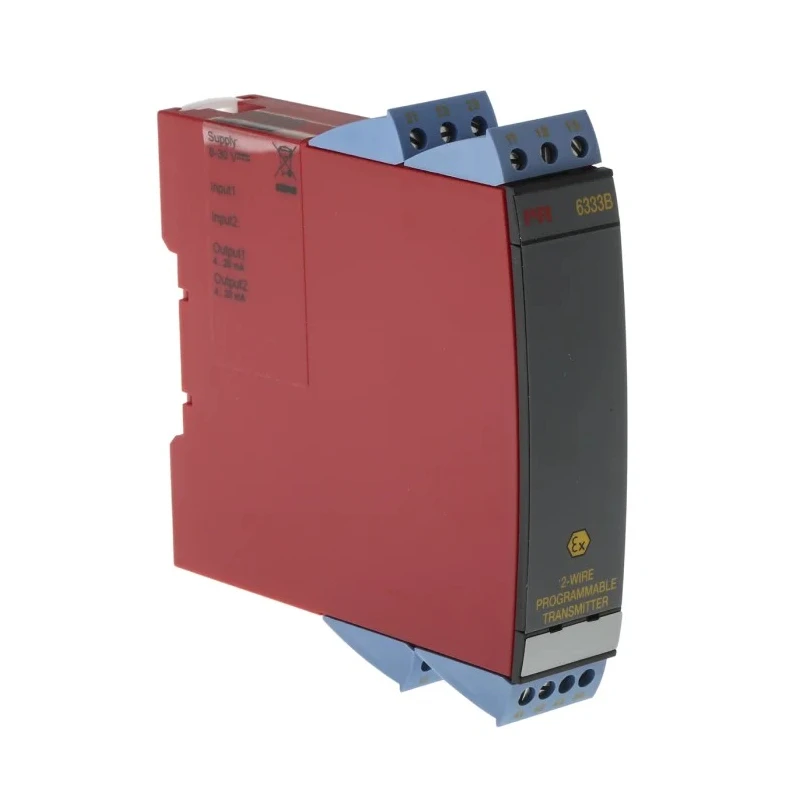

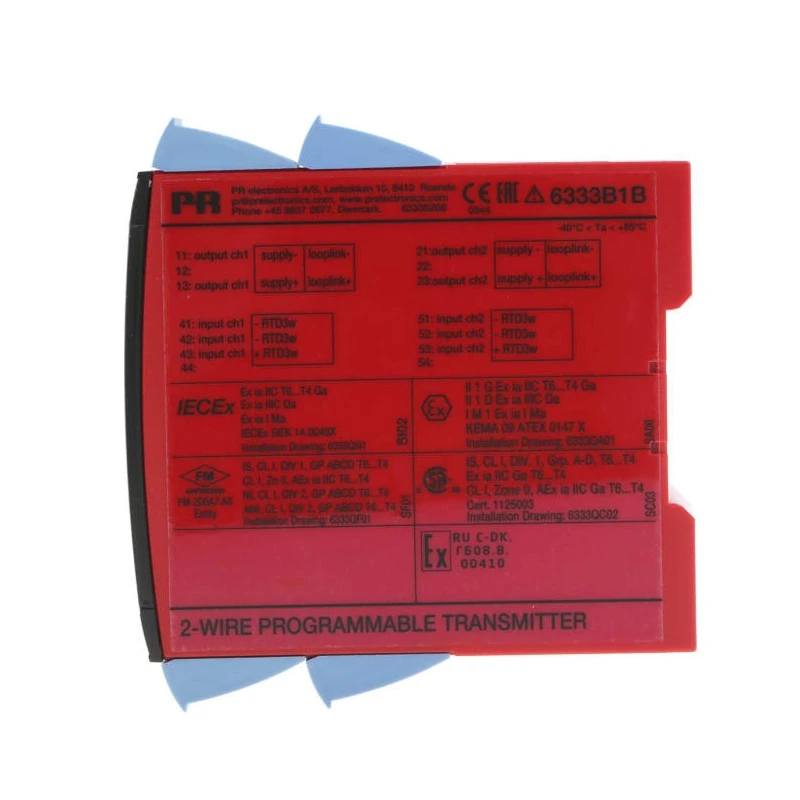

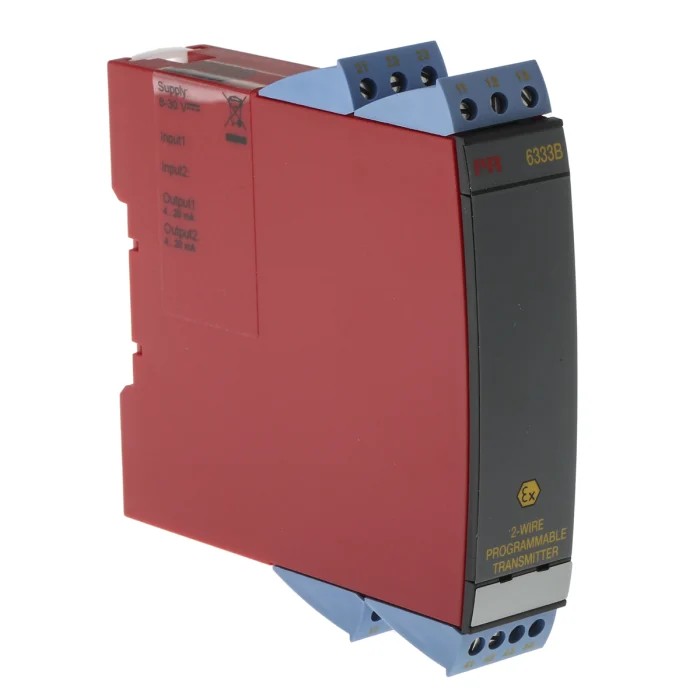

PR Electronics 2-Wire Programmable Temperature Transmitter RTD Input 4 to 20 mA Output 30V DC 85 °C -40 °C 6333B1B

PR Electronics 6333B1B is a 2-wire programmable temperature transmitter designed for RTD input sensors, delivering a 4 to 20 mA output signal. Operating with a maximum supply voltage of 30V DC, it supports temperature input ranges from -200°C to 850°C and operating temperatures from -40°C to 85°C. This transmitter is ideal for industrial process control environments where accuracy and reliability are critical.

The transmitter features galvanic isolation up to 1.5 kVAC, supporting 2 and 3 wire RTD sensors and linear resistance inputs. Its robust design includes intrinsic safety making it suitable for installation in hazardous areas compliant with ATEX, FM, CSA, and IECEX standards.

Installation is simplified with DIN rail mounting, and configuration is user-friendly via free PReset PC software. This allows quick setup of input parameters, output modes, sensor error detection, and process calibration.

Key operational advantages include sensor drift detection, ensuring measurement stability over time, and high noise immunity tested against 10 Vrms in a frequency range of 15 Hz to 100 MHz. Runtime meters enable monitoring of both process temperature and surrounding ambient conditions, providing valuable data history.

Compact at 23.5 mm diameter and 104 mm depth, the transmitter is suitable for diverse industrial, laboratory, HVAC, and manufacturing applications where precise temperature measurement is essential.

Programmable for versatile sensor inputs and outputs. Galvanic isolation enhances signal integrity and safety. Certified for hazardous area use with multiple safety approvals. High immunity to electrical noise ensures reliable operation.

User-friendly configuration via free software. Continuous self-checks for sensor drift and data integrity. Runtime meters for temperature process history tracking. Compact DIN rail mount suitable for control panel integration.

Supports wide temperature ranges for flexible applications. Engineered and manufactured in Denmark for quality assurance. Explore the full range of industrial Temperature Transmitters at EnvMart to find the ideal solution for your process control requirements.
