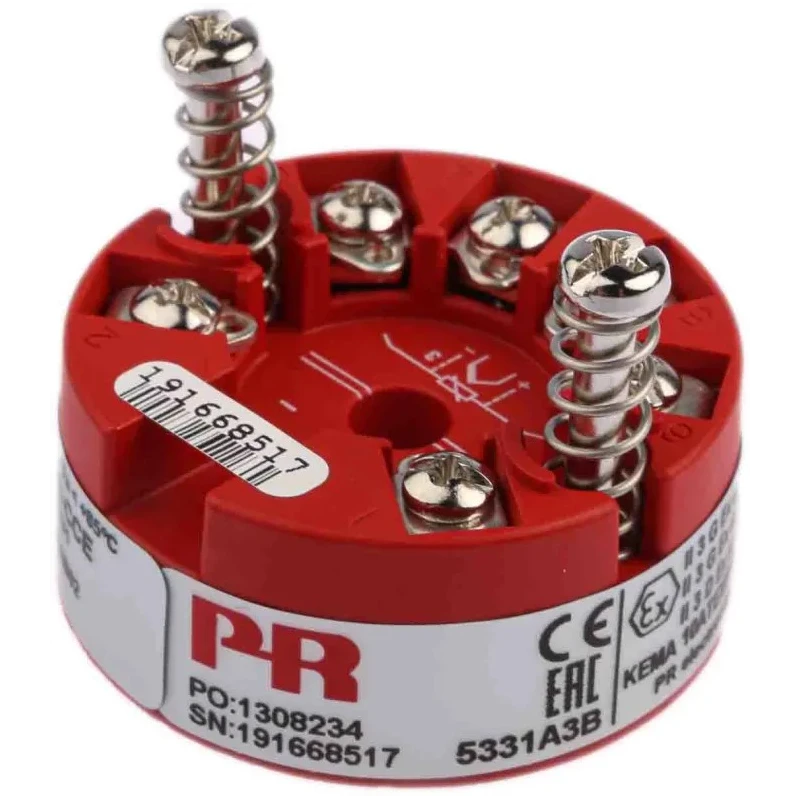

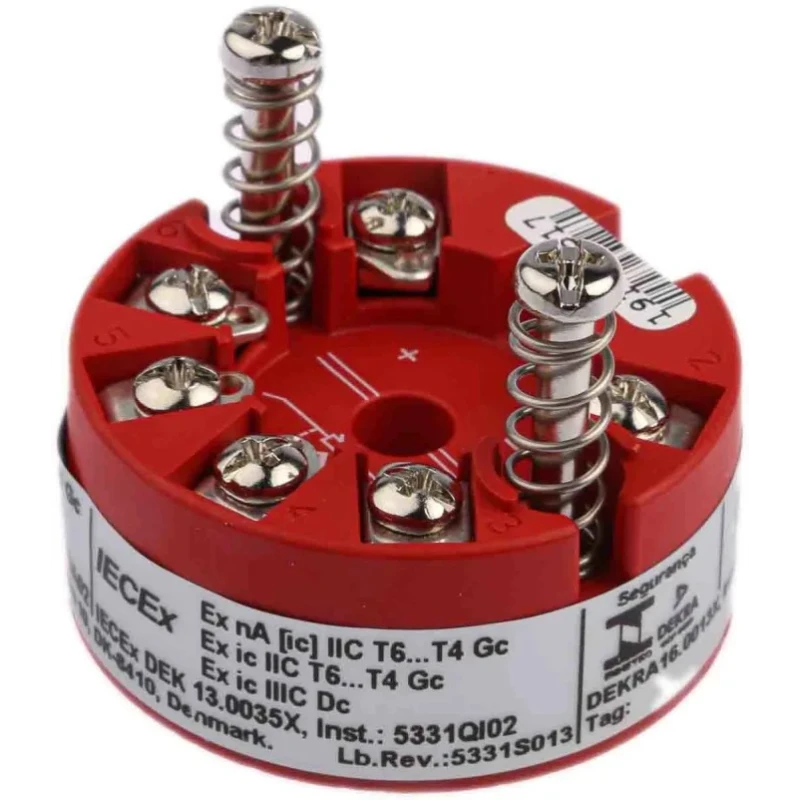

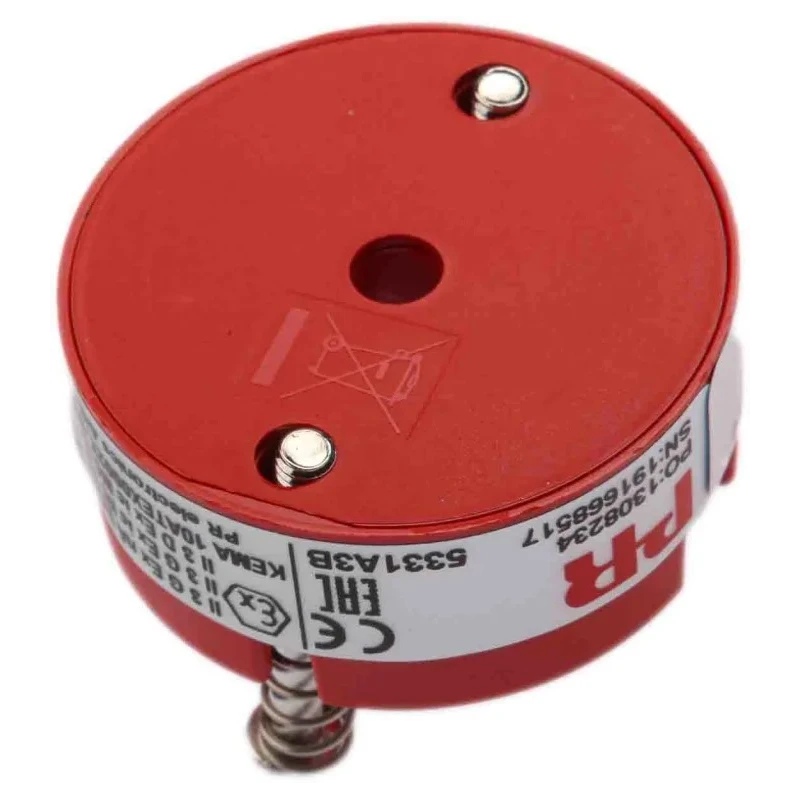

PR Electronics 5331A Programmable Temperature Transmitter 35V DC Supply, -40°C to 85°C Operating, 4 to 20 mA Output 5331A3B
Specifications
| Country of Origin | Denmark |
|---|---|
| Diameter | 44mm |
| Brand | PR Electronics |
| Model | 5331A3B |
| Depth | 20.2mm |
| Output type | 4 to 20 mA |
| Series | 5331A |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Hazardous Area Certification | Ex, ATEX |
| Maximum Supply Voltage | 35V dc |
| Minimum Temperature Input | -200°C |
| Maximum Temperature Input | 850°C |
| High immunity to conducted noise | tested against 10 Vrms in the range 15 Hz - 100 MHz |
| PR Electronics 5300 Temperature Transmitter 30V, 85 °C, -40 °CBrand | PR Electronics |
Key Features
- Programmable input for thermocouple, RTD, resistance, and mV signals.
- Compact diameter of 44 mm and depth of 20.2 mm for DIN form B sensor head mounting.
- High immunity to conducted noise, tested up to 10 Vrms from 15 Hz to 100 MHz.
- Features sensor drift detection and redundancy functions for safety and reliability.
- Supports hazardous area certification including Ex and ATEX directives.
- Complies with multiple international standards and approvals including RoHS and IECEx.
- Designed for industrial, laboratory and process control applications.
- Operates with a maximum supply voltage of 35 V DC ensuring stable performance.
Product Description
PR Electronics 5331A3B is a programmable Temperature Transmitter engineered for precise conversion of temperature sensor signals to a 4 to 20 mA standard output. The device supports a broad range of input types including thermocouples, 2-, 3-, and 4-wire RTDs, linear resistance, and bipolar millivolt signals.
With a compact diameter of 44 mm and depth of 20.2 mm, it is designed for DIN form B sensor head mounting, allowing easy installation in various industrial environments. The transmitter’s fast response time and superior accuracy meet the demands of safety-critical and cost-sensitive applications.
Key features include sensor drift detection for enhanced measurement reliability and input sensor redundancy to maintain process availability even if the primary sensor fails. High immunity to conducted electromagnetic noise (tested at 10 Vrms from 15 Hz to 100 MHz) ensures stable operation in harsh industrial settings.
It is certified for hazardous area use compliant with Ex and ATEX standards, supporting safe operation in potentially explosive atmospheres. The model meets numerous global standards and approvals, such as RoHS 2011/65/EU, IECEx, INMETRO, and marine certifications, guaranteeing international compliance.
Powered by a maximum supply voltage of 35 V DC, the transmitter maintains consistent performance throughout its operating temperature range from -40°C to 85°C. Its versatile configuration capability via free PReset software enables rapid adaptation to specific application requirements.
This transmitter is ideally suited for industrial automation, laboratory instrumentation, HVAC control, and process monitoring where precise and reliable temperature measurement is crucial.
Programmable input versatility for multiple sensor types. Compact DIN form B sensor head design. Sensor drift detection enhances accuracy. Input sensor redundancy for process safety. High EMI immunity for industrial robustness.
Worldwide hazardous area certifications. Wide operating temperature and supply voltage range. Quick configuration using free PReset software. Explore EnvMart for more precision instrumentation and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -40°C to 85°C.
It provides a standard output of 4 to 20 mA.
It supports a variety of input types including thermocouples, 2-, 3-, and 4-wire RTDs, linear resistance, and bipolar millivolt signals.
The maximum supply voltage for this transmitter is 35 V DC.
It has a compact diameter of 44 mm and a depth of 20.2 mm, suitable for DIN form B sensor head mounting.
It is certified for hazardous areas compliant with Ex and ATEX standards.
It has high immunity to conducted electromagnetic noise, tested against 10 Vrms in the frequency range of 15 Hz to 100 MHz.
Key features include sensor drift detection and input sensor redundancy for maintaining process availability.
It complies with multiple international standards including RoHS 2011/65/EU and IECEx.
It is designed for industrial automation, laboratory instrumentation, HVAC control, and process monitoring.
The minimum temperature input is -200°C and the maximum is 850°C.
Configuration can be quickly adapted using the free PReset software provided with the transmitter.
