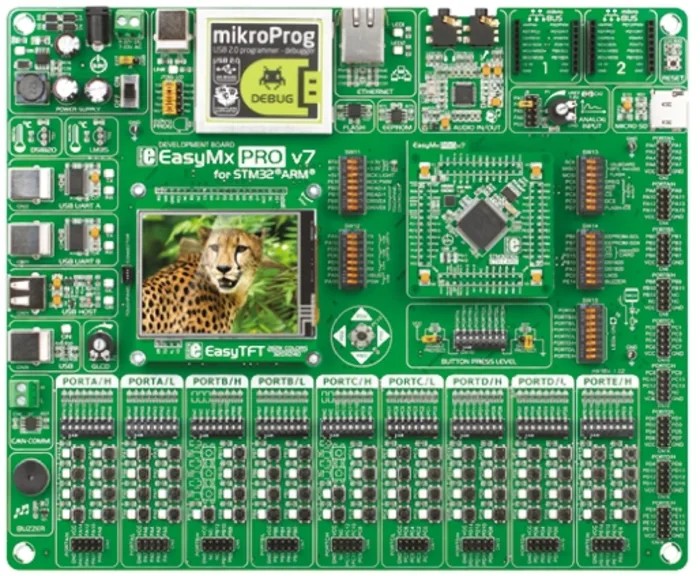

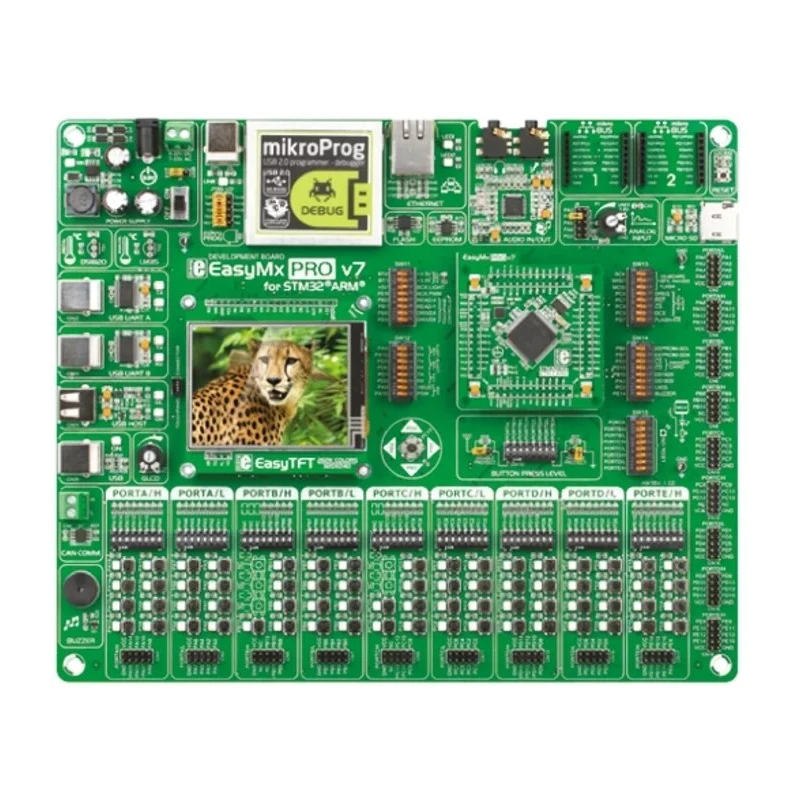

MikroElektronika EasyMix Pro MCU Development Kit with STM32 Microcontroller MIKROE-1099

The MikroElektronika EasyMix Pro MCU Development Kit MIKROE-1099 is a professional evaluation board tailored for developing STM32 microcontroller applications. It supports the ST Microelectronics ARM Cortex-M3 and Cortex-M4 STM32 microcontroller range, facilitating rapid prototyping and debugging.

This comprehensive kit features an on-board mikroProg programmer and in-circuit debugger supporting over 180 STM32 devices, offering fast and enhanced programming alongside a wide array of debugging instructions. The kit includes special 104-pin plug-in MCU cards supporting different microcontrollers, enabling flexible development across multiple STM32 variants.

The development board incorporates an 8Mbit serial SPI Flash memory and an 8kbit serial I2C EEPROM, providing ample non-volatile storage options. An integrated 320x240 TFT touchscreen display panel enables user-friendly interfaces and visual display outputs.

Audio functionality is supported by a stereo audio VS1053 CODEC and included piezo buzzer. The board also features user pushbuttons, LEDs, a thumb joystick/navigation switch, and multiple connectors for USB Host/Device, USB-UART, Ethernet, CAN bus, stereo audio, and mikroBUS, enhancing peripheral connectivity.

Additional integrated sensors include analog and digital temperature sensors and an analog input potentiometer, enabling environmental monitoring and input control. A microSD card slot allows expanded removable memory storage for application data.

Power management is facilitated on-board with 3.3V and 5V voltage regulators, ensuring stable supply to integrated components and attached modules. The kit includes an STM32F107VCT6 MCU card, accompanying detailed user manuals, schematics, a documentation DVD, and a USB cable for connectivity and programming.

This development kit is suitable for embedded system engineers, hobbyists, and educators focusing on microcontroller system design, rapid prototyping, and educational use within industrial, academic, and laboratory settings.

Supports STM32 Cortex-M3 and Cortex-M4 microcontrollers. On-board mikroProg programmer and debugger with broad STM32 support. Integrated 320x240 TFT touchscreen display panel. Multiple connectivity options including USB, Ethernet, CAN, and mikroBUS.

Memory expansion with SPI Flash, EEPROM, and microSD slot. Audio codec with stereo output and buzzer included. Embedded temperature sensors and analog input potentiometer. Supplied with MCU card (STM32F107VCT6), manuals, schematics, and USB cable.
