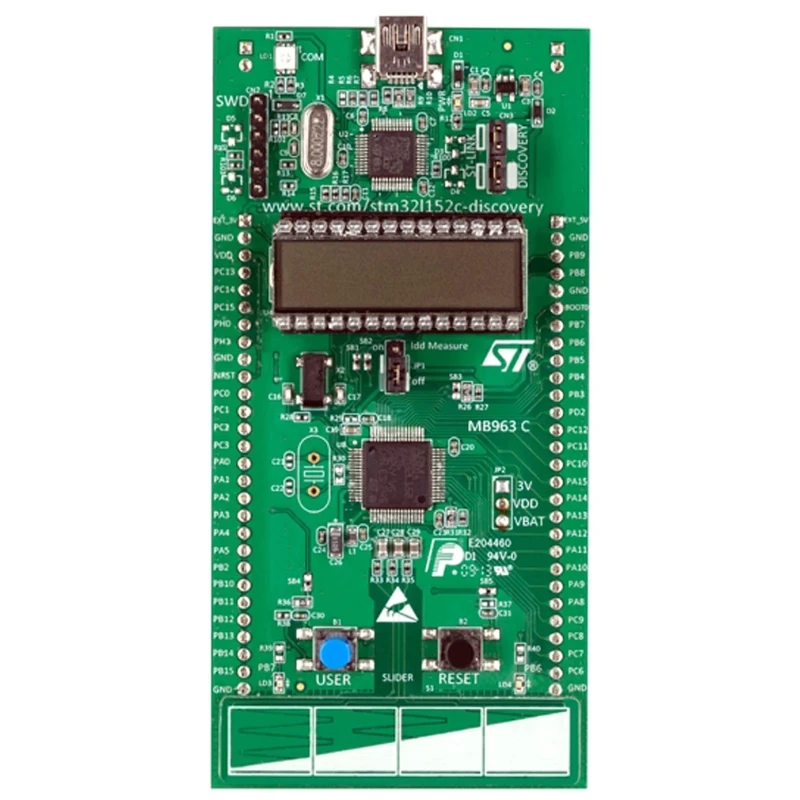

STMicroelectronics Discovery MCU Development Kit with ARM Cortex M3 32MHz MCU, 256KB Flash, 32KB RAM, RoHS STM32L152C-DISCO
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Model | STM32L152C-DISCO |
| Technology | MCU |
| Standards/Approvals | RoHS |
| Device Core | ARM Cortex M3 |
| Kit Classification | Development Kit |
| Kit Name | Discovery |
| Processor Part Number | STM32L152RCT6 |
| Processor Type | MCU |
| Processor Family Name | STM |
| Dynamic Run mode | down to 230μA/MHz |
| 9 x Serial communication interfaces | USB, USART, SPI, I²C, I²S |
Key Features
- Includes STM32L152RCT6 Cortex-M3 MCU with 256KB ECC Flash memory and 32KB RAM.
- Supports USB, USART, SPI, I²C, and I²S serial communication interfaces.
- Equipped with LCD driver for 8x28 or 4x32 segments and 23 capacitive sensing channels.
- Features on-board ST-LINK/V2 debugger and SWD connector for programming.
- Provides power options including USB VBus and external +5Vdc supply.
- Includes IDD current measurement unit for ultra-low power monitoring.
- Has 6-digit and 4-bar alphanumeric LCD display with status and user LEDs.
- Offers reset and user pushbuttons, linear touch sensor, and four touchpads.
Product Description
STMicroelectronics STM32L152C-DISCO Discovery MCU Development Kit provides a comprehensive platform for evaluating the STM32L152RCT6 microcontroller based on the 32-bit ARM Cortex-M3 core running at 32MHz. This development kit features ultra-low power capabilities with 256KB ECC Flash memory, 32KB RAM, and 8KB ECC EEPROM, making it ideal for low power embedded applications.
The kit includes multiple serial communication interfaces such as USB, USART, SPI, I²C, and I²S, allowing development flexibility. It integrates an LCD driver capable of handling 8x28 or 4x32 segments and supports up to 23 capacitive sensing channels for touch applications. A pre-programmed bootloader and on-board ST-LINK/V2 debugger with SWD connector facilitate easy programming and debugging.
Power options include USB VBus and external +5Vdc, with additional external supply lines at +3V and +5V for peripheral modules. The kit supports IDD current measurements enabling precise power consumption analysis for ultra-low-power modes including backup registers and multiple wakeup pins.
The included 6-digit and 4-bar alphanumeric LCD display enhances user interface options, supplemented by 2 status LEDs and 2 user LEDs as well as reset and pushbutton controls. Linear touch sensors and four additional touchpads extend the interactive capabilities, suitably supporting dynamic power modes down to 230μA/MHz.
This product complies with RoHS environmental standards and is manufactured in China. It serves applications in embedded systems development, ultra-low power design evaluation, educational STEM development, and prototyping for industrial, communication, and consumer electronic products.
Includes STM32L152RCT6 microcontroller core and debugger components. Supports multiple interface standards including USB, USART, SPI, I²C, and I²S. Equipped with LCD and capacitive sensing peripheral drivers. Provides ultra-low power modes with current measurement capabilities.
Facilitates rapid development and debugging through on-board ST-LINK/V2. Explore the Microcontroller Development Kit category at EnvMart for related products and accessories.
