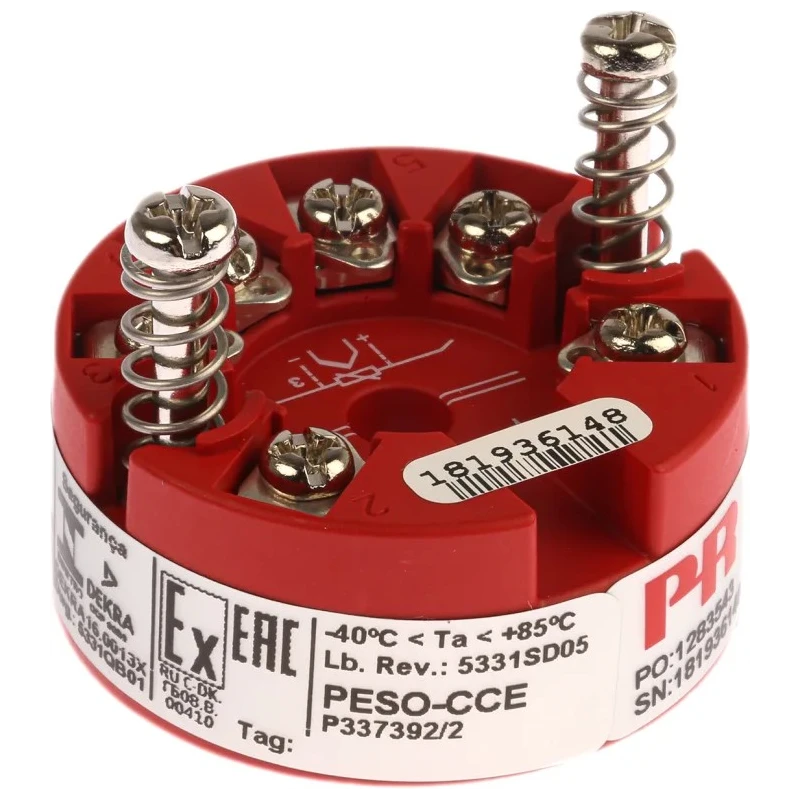

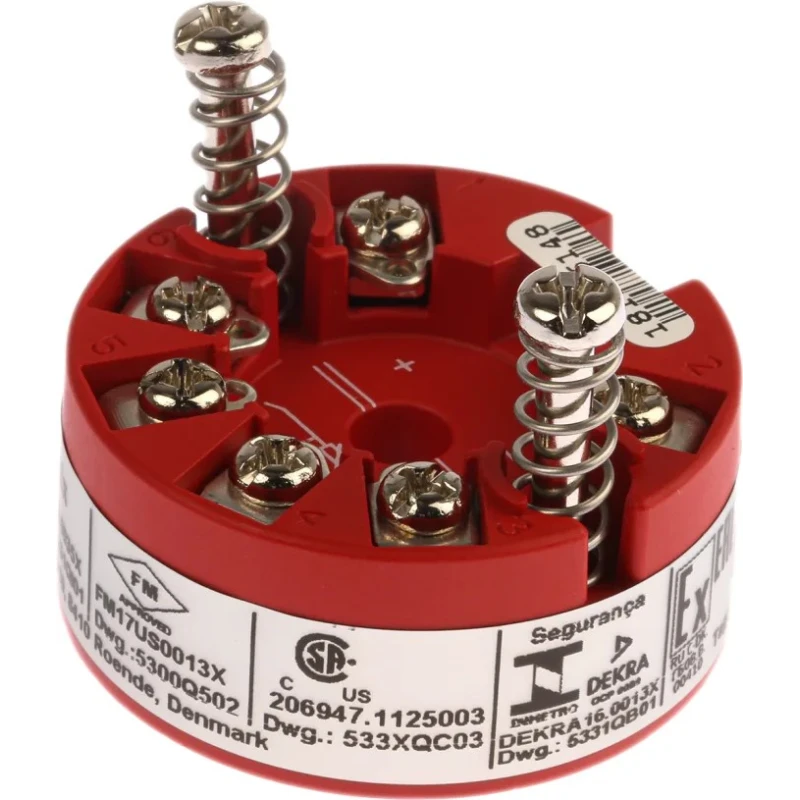

PR Electronics 5300 Series Temperature Transmitter with 4-20mA Current Output, 44mm Diameter, 30V Supply, -40°C to 5331D3B

PR Electronics 5331D3B Temperature Transmitter from the 5300 series is a high-performance device engineered for precise temperature measurement in critical industrial applications. It offers compatibility with a wide variety of sensor inputs including thermocouples, 2, 3, and 4 wire RTDs, linear resistance, and bipolar millivolt signals, enabling versatile deployment across diverse process conditions.

The transmitter outputs a reliable 4-20mA current signal and is powered by a maximum supply voltage of 30V. Its compact 44mm diameter and 20.2mm depth housing supports DIN form B sensor head mounting, making it suitable for installation in constrained environments.

Designed for operation across a robust temperature range from -40°C to 85°C, it ensures performance stability in demanding environments. The product incorporates sensor input redundancy to maintain continuous operation and enhance safety in case of primary sensor failure.

This model includes features such as sensor drift detection and runtime meters that provide continuous monitoring and history of process and ambient temperatures, essential for preventive maintenance and quality assurance.

With proven immunity against conducted noise up to 10 Vrms in a broad frequency range (15 Hz - 100 MHz), the transmitter ensures data integrity in electrically noisy industrial sites.

Configuration and calibration are facilitated through user-friendly PReset software, downloadable free for PC, allowing parameters to be adjusted rapidly to specific application needs.

Compliance with multiple international certifications including FM, CE, CSA, EAC, IEC, and RoHS confirms that the transmitter meets stringent safety and environmental standards.

Manufactured in Denmark, the PR Electronics 5331D3B is ideal for use in industrial automation, laboratory instrumentation, HVAC controls, manufacturing processes, and water treatment systems requiring accurate and reliable temperature measurements.

The transmitter supports thermocouples, RTDs, resistance, and mV signals for versatile applications. Equipped with sensor redundancy to maintain process safety during sensor failure. Runs on a maximum supply voltage of 30V and supports output as a 4-20mA current signal.

Compact 44mm diameter housing designed for DIN form B sensor head mounting. Operating temperature range from -40°C to 85°C ensuring durability in harsh environments. Built-in drift detection enhances reliability over long periods of usage.

High immunity to conducted noise, tested against 10 Vrms from 15 Hz to 100 MHz. Programmable via PC software PReset for quick configuration and calibration. Suitable for industrial, laboratory, HVAC, and process control applications.

Manufactured in Denmark with adherence to FM, CE, CSA, EAC, IEC, and RoHS standards. Explore the wide range of Temperature Transmitters and related automation devices available at EnvMart for your industrial automation needs.
