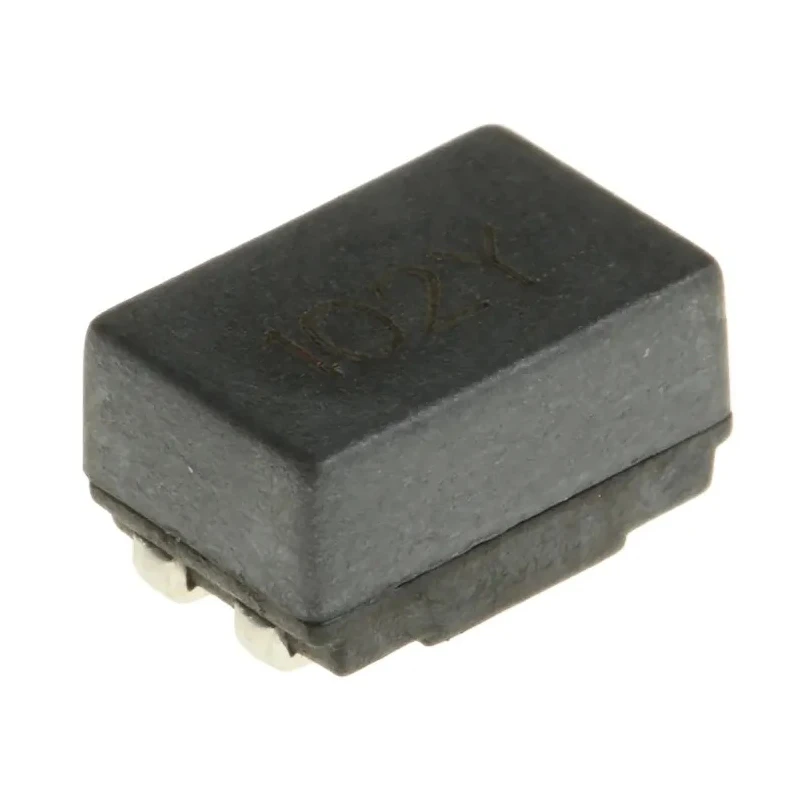

Bourns Shielded Surface Mount Common Mode Line Filter 1 mH ±50% 800 mA Idc Ferrite Core 0905 SRF0905

Bourns SRF0905 shielded surface mount common mode line filter with a ferrite core delivers 1 mH inductance with ±50% tolerance and supports up to 800 mA DC current. This surface mount device is engineered for electronic components requiring effective EMI suppression and noise reduction.

The wirewound construction using a ferrite core ensures stable inductance and reliable operation at frequencies up to 15 MHz, with a maximum DC resistance of 310 milliohms to minimize performance losses. The device is housed in a compact 0905 package featuring dimensions of 9.2 mm in length, 6 mm in depth, and 5 mm in height, optimized for surface mount technology (SMT) assembly using solder termination style.

Designed to operate in a wide temperature range from -40°C to 105°C, this RoHS-compliant component is molded for durability and shielded for enhanced electromagnetic interference attenuation. Come packaged in reels, it supports efficient insertion into automated machinery for manufacturing processes.

Ferrite Core construction ensures effective EMI suppression. Wirewound inductor design provides reliable performance. Compact 0905 surface mount package with length 9.2 mm. Maximum DC resistance of 310 milliohms minimizes losses.

Operating temperature range from -40°C to 105°C. Shielded design enhances signal integrity and noise reduction. Reel packaging suitable for high-volume PCB assembly. RoHS compliant with molded wirewound construction. Termination style is solder for SMT application.

This common mode line filter is ideal for electronic manufacturing, industrial automation, communication devices, and other applications requiring efficient EMI and noise filtering. Its compact size and shielded design make it suitable for modern compact electronic assemblies requiring stringent EMC compliance.
