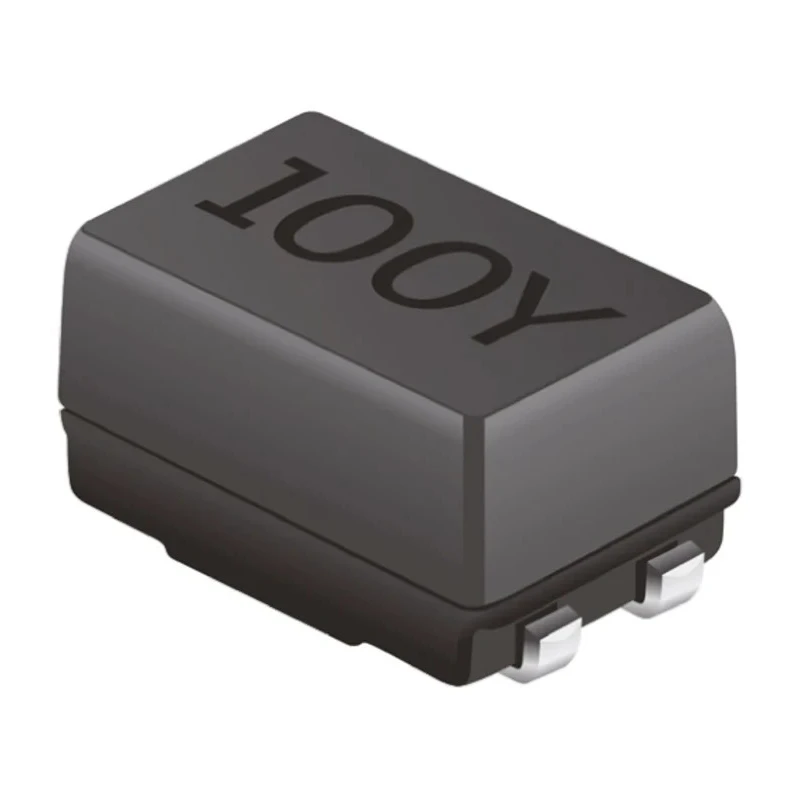

Bourns 0905 Shielded Surface Mount Common Mode Line Filter with Ferrite Core 470μH ±50% 1.1A Idc SRF0905

Bourns SRF0905 series shielded surface mount common mode line filter combines a ferrite core with wirewound construction to effectively suppress electromagnetic interference (EMI) in electronic circuits. This filter features a 0905 compact package and is engineered for surface mount applications requiring high filtration efficiency.

The inductance rating of 470μH with ±50% tolerance ensures consistent performance in noise suppression across a variety of power and signal lines. It supports a maximum DC current of 1.1 amperes, suitable for low to medium current electronic devices.

Physical dimensions of 9.2 mm length, 5 mm height, and 6 mm depth enable integration into dense PCB layouts, helping to maintain compact electronic designs. The solder termination style guarantees solid mechanical and electrical connections for reliable long-term use.

This component is capable of operating within a temperature range from -40°C up to 105°C, making it adaptable for various industrial, automotive, and consumer electronic environments. Its maximum DC resistance of 140 milliohm ensures minimal impact on circuit efficiency while effectively filtering noise.

The filter is shielded to reduce external electromagnetic interference and complies with RoHS standards, reflecting Bourns' commitment to environmental and product safety. The maximum self-resonant frequency of 20 MHz supports applications involving higher frequency signals.

Commonly utilized in electronic manufacturing, communication equipment, automotive electronics, and power supply circuits, the SRF0905 offers reliable EMI suppression and noise filtering performance. The ferrite core construction aids in optimal noise attenuation, enhancing device performance and compliance with regulatory standards.

Set contains one surface mount common mode line filter with specified inductance and tolerance as per the SRF0905 series. Explore Bourns filters and inductors on EnvMart for industrial and electronic component solutions tailored to your technical requirements.

Incorporates a Ferrite Core to enhance EMI suppression and filtering efficiency. Features wirewound construction with a moulded body for durability. Compact 0905 package size with dimensions 9.2 mm length, 5 mm height, and 6 mm depth.

Capable of operating between -40°C and 105°C for varied industrial environments. Designed for surface mounting with solder termination style ensuring reliable connections. Maximum DC resistance of 140 milliohm minimizes power loss in circuits.

Shielded to reduce electromagnetic interference in sensitive electronic applications. Complies with RoHS standards for environmental safety and quality assurance. Resonant frequency up to 20 MHz supports high-frequency filtering tasks.
